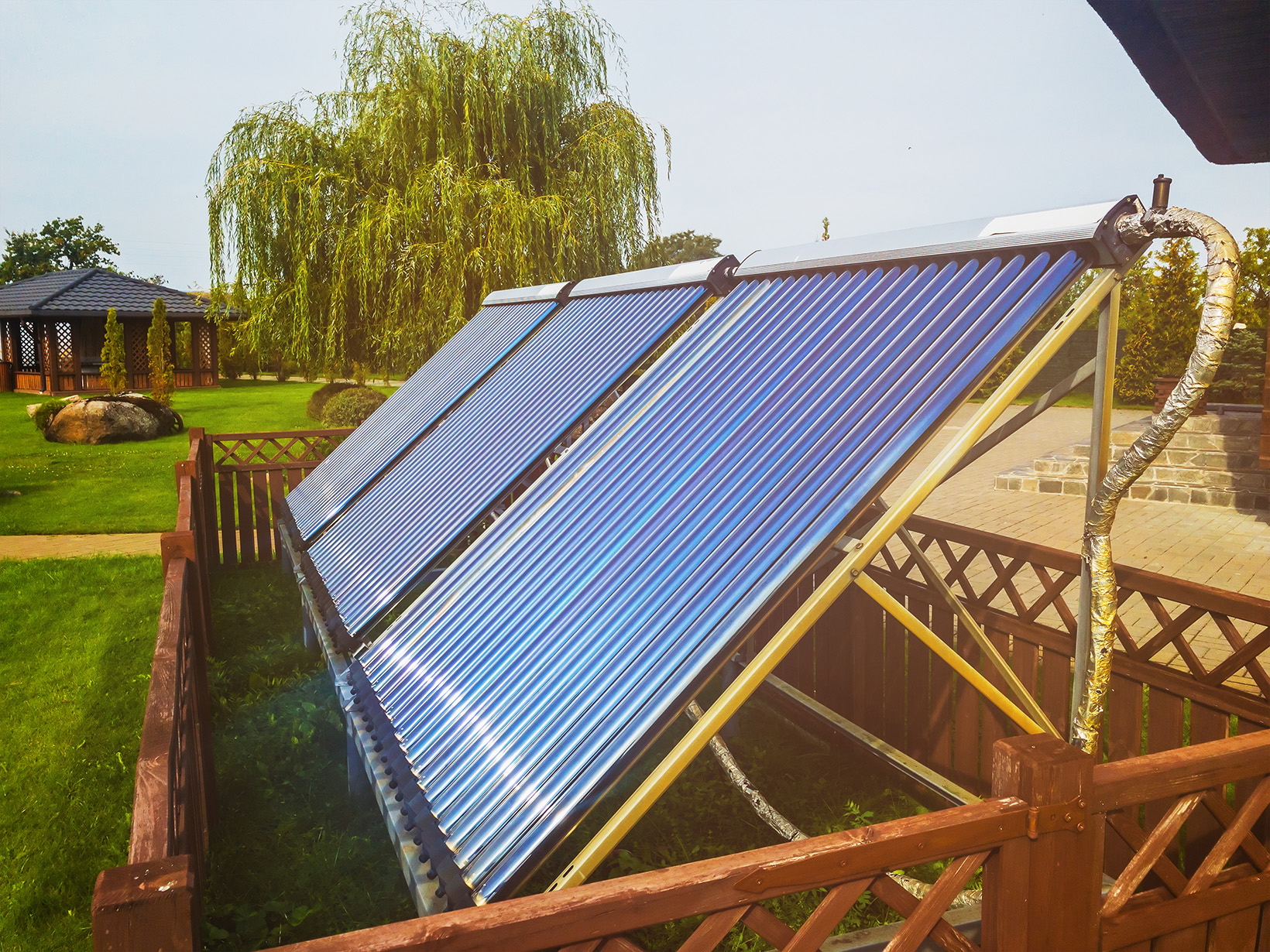

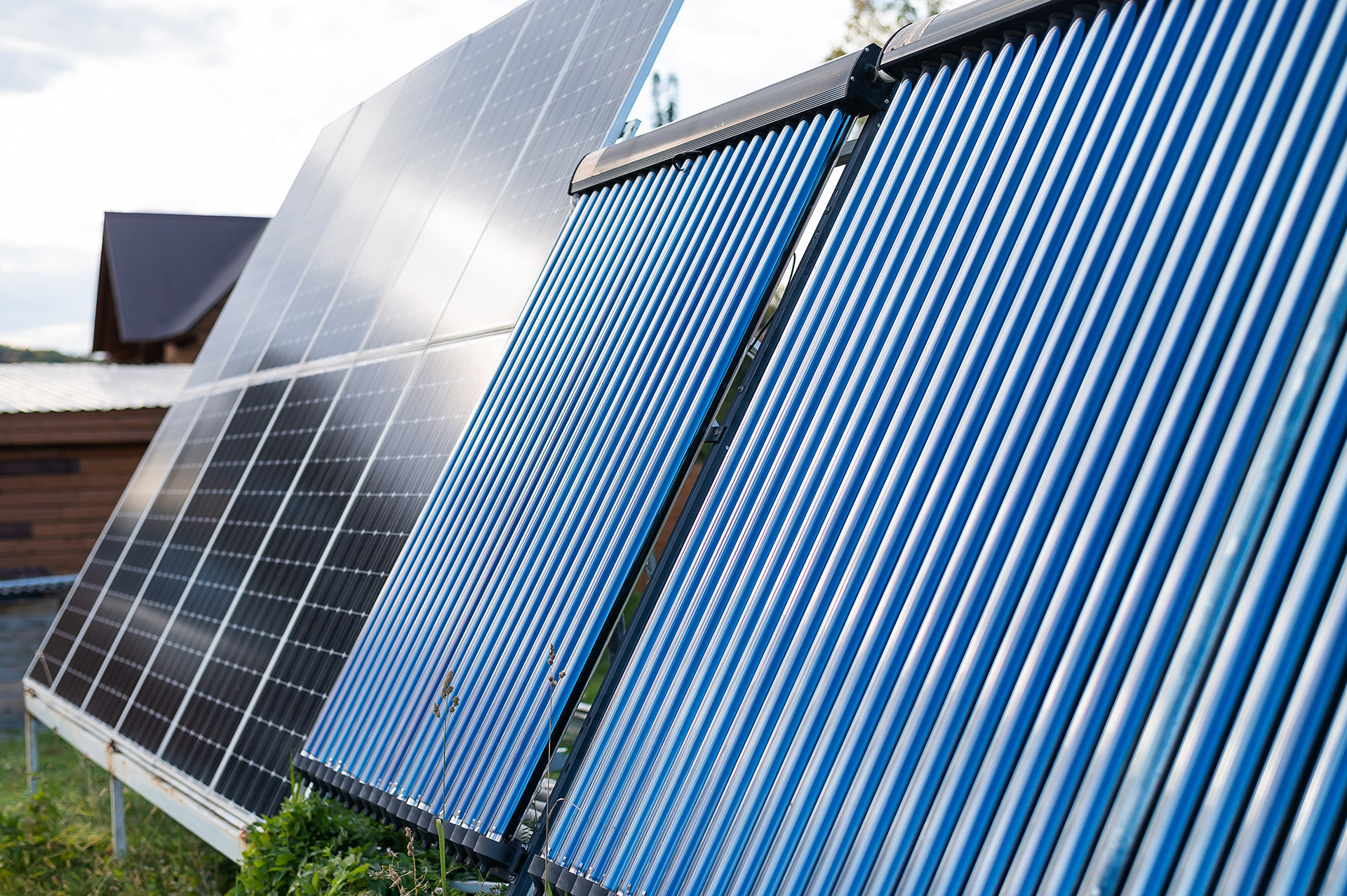

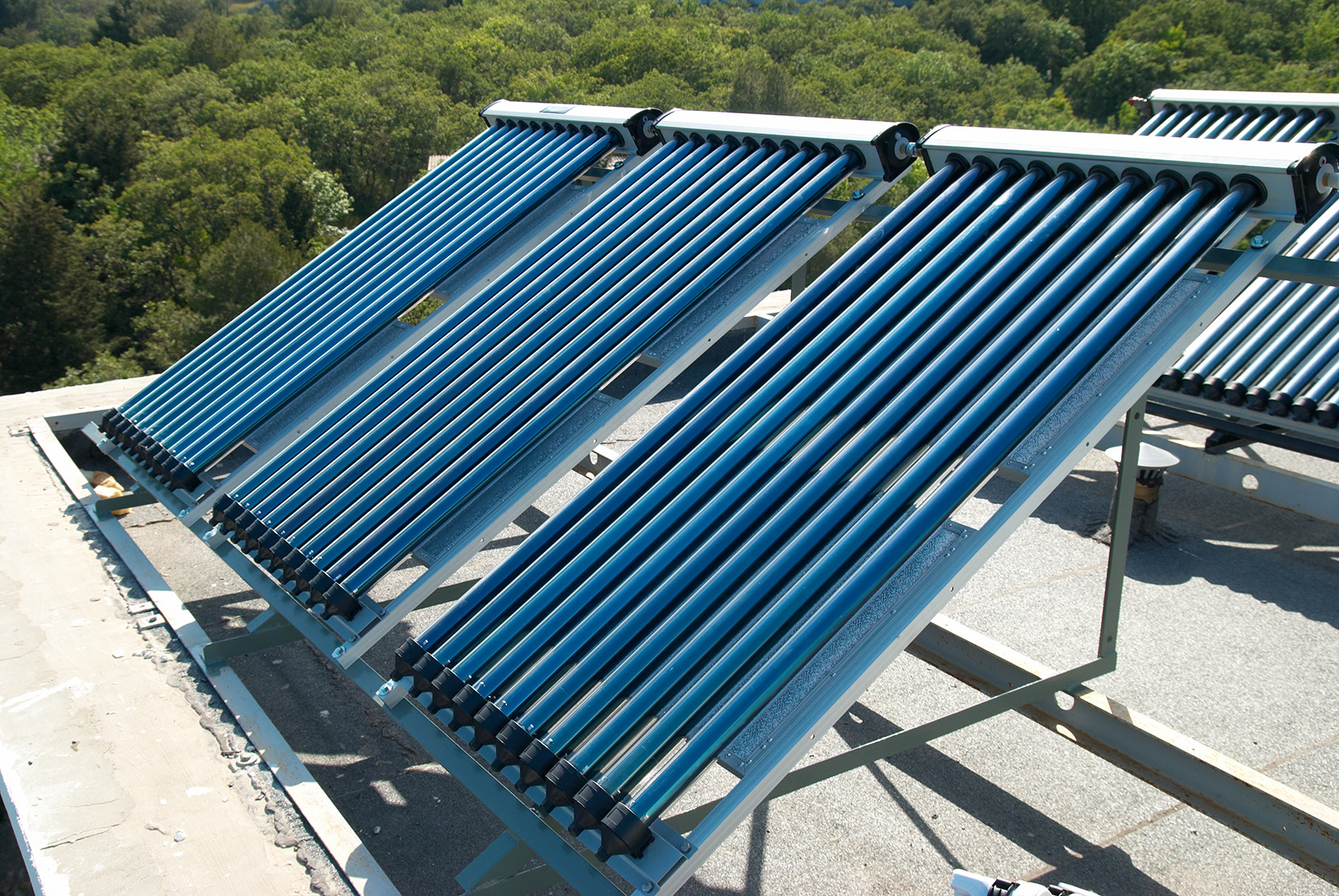

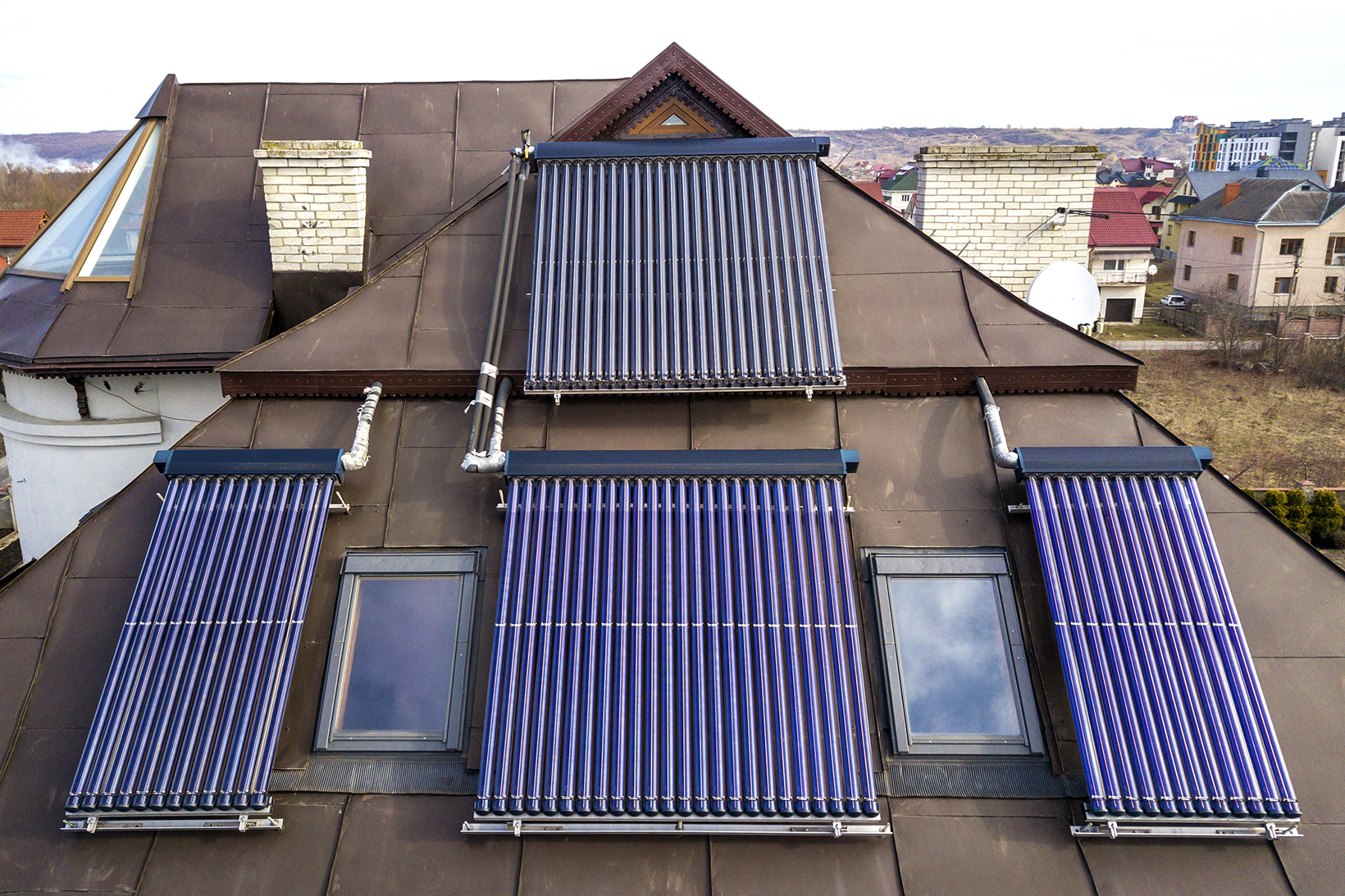

SolarTide HPSC series of evacuated tube solar collectors are suitable for both residential and commercial applications.

FEATURES

The design of the HPSC solar collector is a culmination of nearly 15 years of feedback from installers and solar professionals all over the world and aims to meet their requirements with the following key features:


● Easy and Safety Packing design

● Lightweight manifold and bracket design

● Anodized Aluminum Alloy mounting frames

● Extremely reliable header design, less brazing points

● All glass wool insulation for high temperature stability

● Extreme cold resilience (freeze protected heat pipes)

● UV stabilized components

● High wind load strength and High snow load strength

● Easy plug-in installation

PRODUCT RANGE

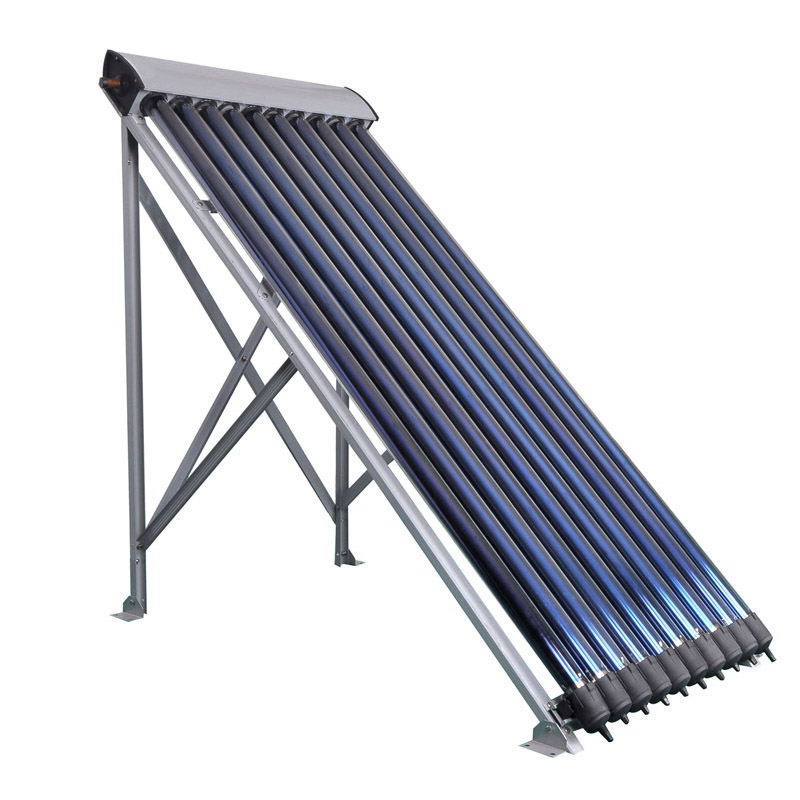

HPSC collectors are available in 10 to 30 tube sizes and have a number of options depending on the local market requirements.



ModelHPSC-10HPSC-15HPSC-20HPSC-25HPSC-30
Lenghth2043mm
Height135mm
Width800mm1175mm1550mm1925mm2300mm
Peak Output *667W1009W1335W1667W2019W
Aperture Area
0.94 m2
1.41 m21.88 m22.35 m22.82 m2
Gross Area1.63 m22.40 m23.17 m23.93 m24.70 m2
Net Weight35 kgs52 kgs 70 kgs88 kgs95 kgs



*Calculated at midday (trans IAM = 1), G=1000W/m2, ∆T (tm-ta)=0, Location is in Jinxing, China



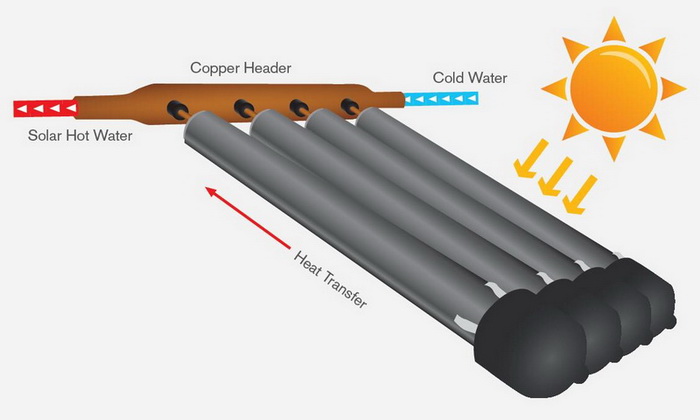

How It Works



Construction

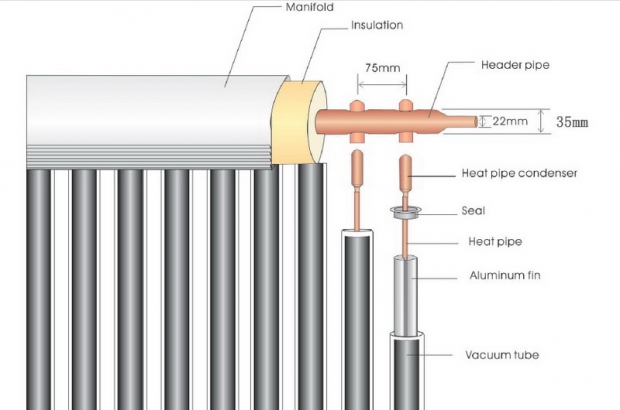

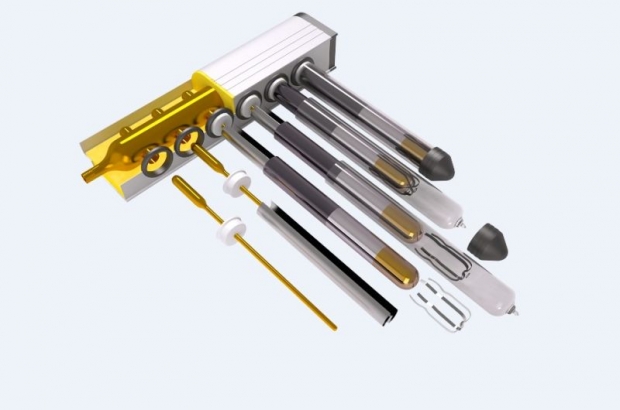

The HPSC solar collector is comprised of four main parts:



Evacuated Tube

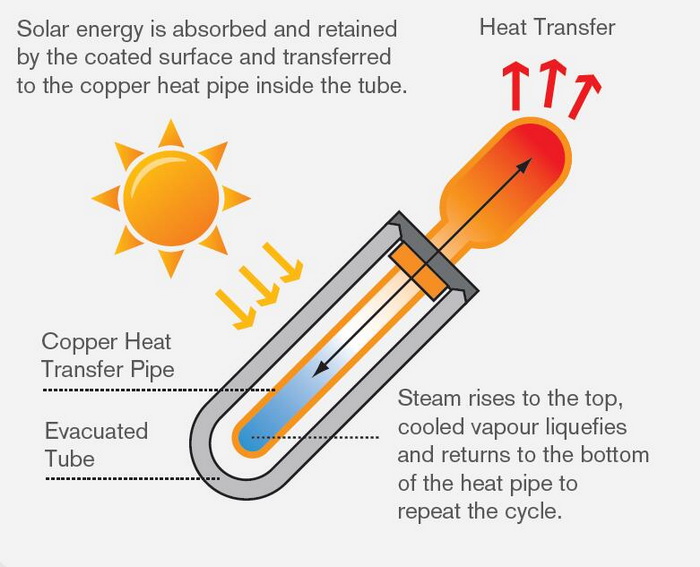

Absorbs solar energy and converts it to usable heat.  Vacuum between the two glass layers insulates against heat loss.

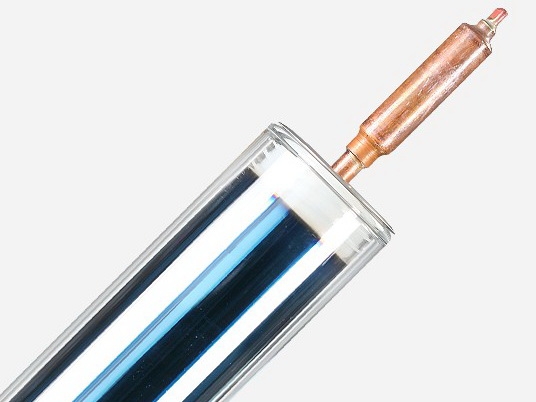

Heat Pipe

Copper vacuum pipe that transfers the heat from within the ET up to the manifold.

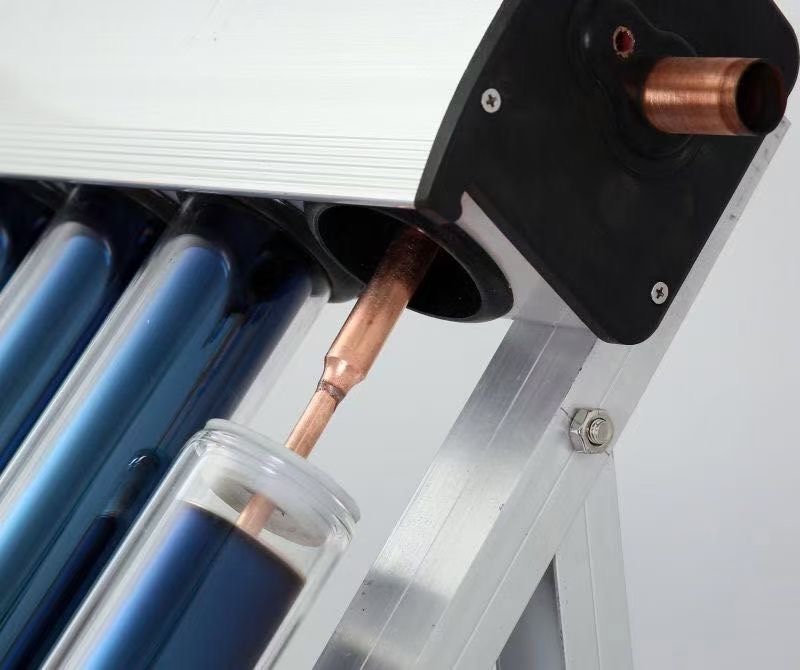

Manifold

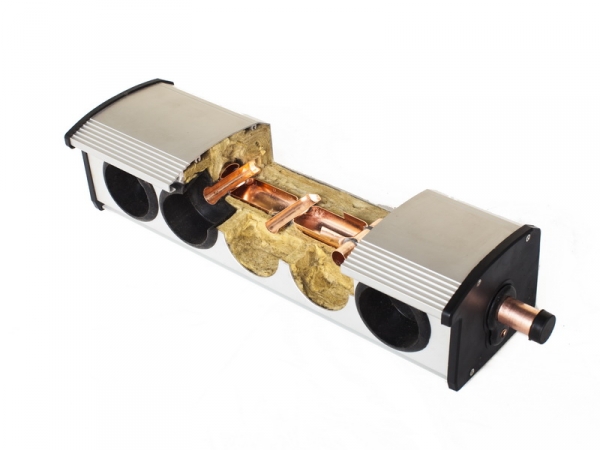

Insulated box containing the copper header pipe.  The header is a pair of contoured copper pipes with dry connect sockets that the heat pipes plug into.

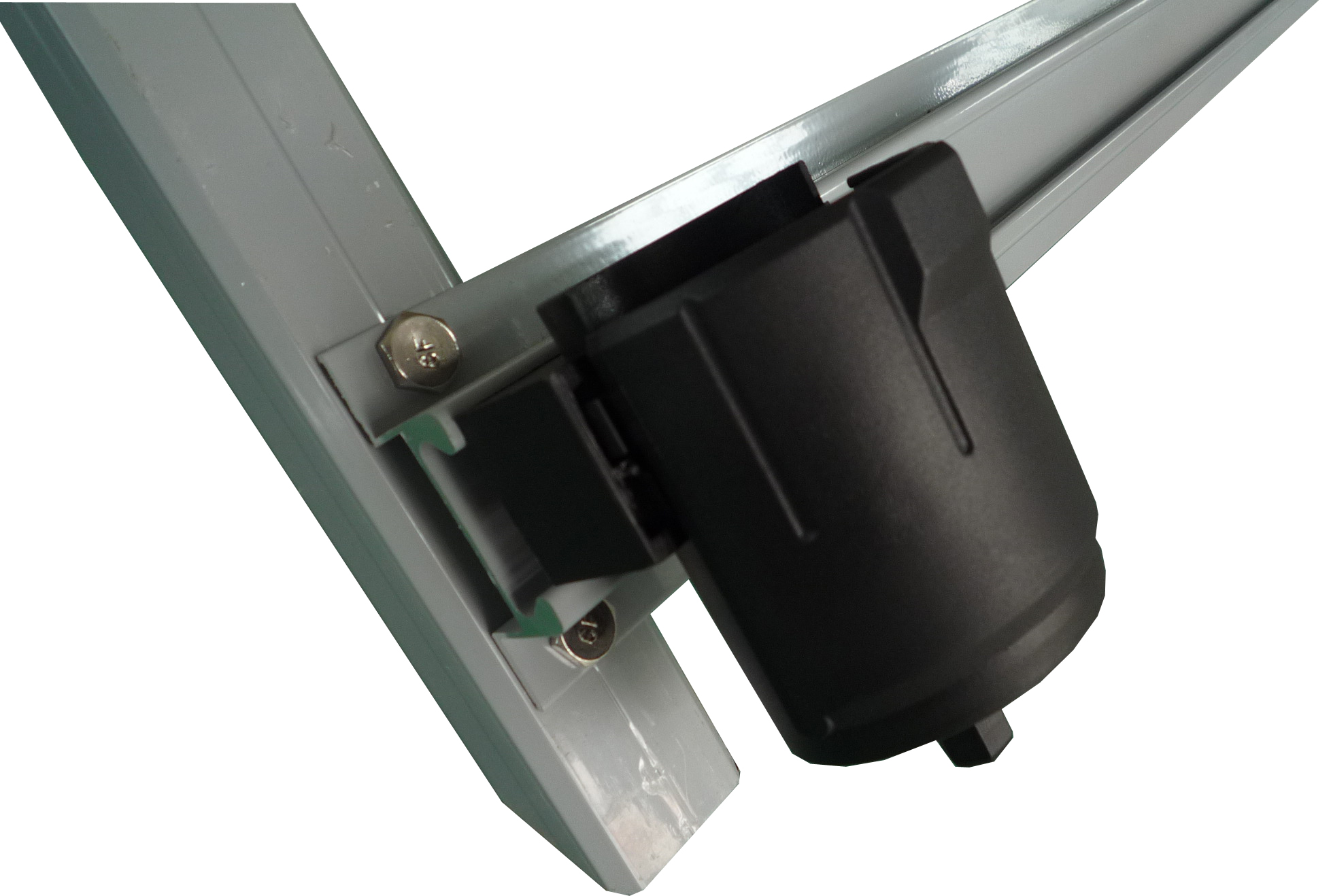

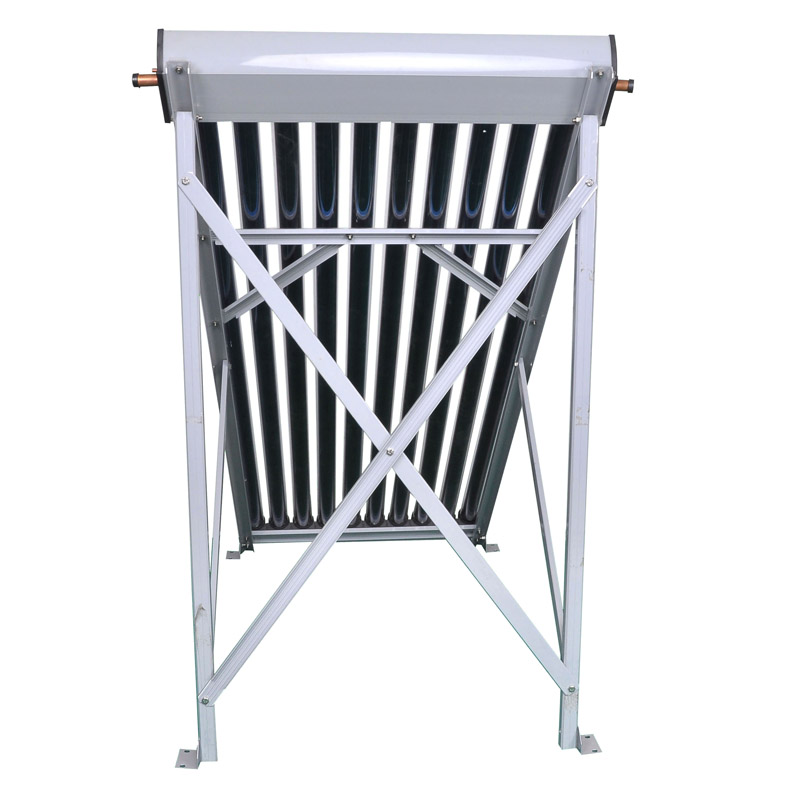

Mounting Frame

Strong and easy to install with various options to match different mounting methods.



How It Works



Main Component
Specifications
ComponentMaterials & Specifications
Evacuated Tubes

Material: Borosilicate 3.3

Tube style: Twin wall all glass

Dimensions: ∅58mm outer tube; ∅47mm inner tube;  1.8m length, 1.65mm outer tube wall thickness

Solar Absorber Coating

Material: Graded ALN/SS-CU/ALN, three target coating

Absorptance: >92% (AM1.5);

Emittance: <8% (80 C)

Vacuum: P<5x10-5 Pa;

Heat loss: <0.8W/(m2 C)

Heat Pipes

Material: High purity “oxygen free” copper (ASTM: C10200; DIN: OF-Cu)

Heat transfer fluid: distilled water + special metal powder

Maximum heat transfer capacity: 220W / 750Btu

Operating angle: 20-80 Degrees

Startup temperature: ~30 C / 86 F

Copper Header Pipe

Material: Copper (ASTM: C1100, DIN: ECu-58); Potable water rated.

Brazing rod material: BAg45CuZn          Maximum pressure: 800kPa

Connection options: 22mm OD copper

Heat Transfer Fins Material:  High purity aluminum
Rubber Components Material: HTV Silicone Rubber (UV stabilized)
Mounting Frame Material: 6005-T5 Aluminum Alloy
Manifold Casing Material: 3A21 Aluminum with Anodized or Powder Coated Finish
Manifold Insulation

Material: Glass Wool (K = 0.043W/mK)

Thickness: Average >50mm
