Non-Pressure Solar Collector

Non-Pressure Solar Collector

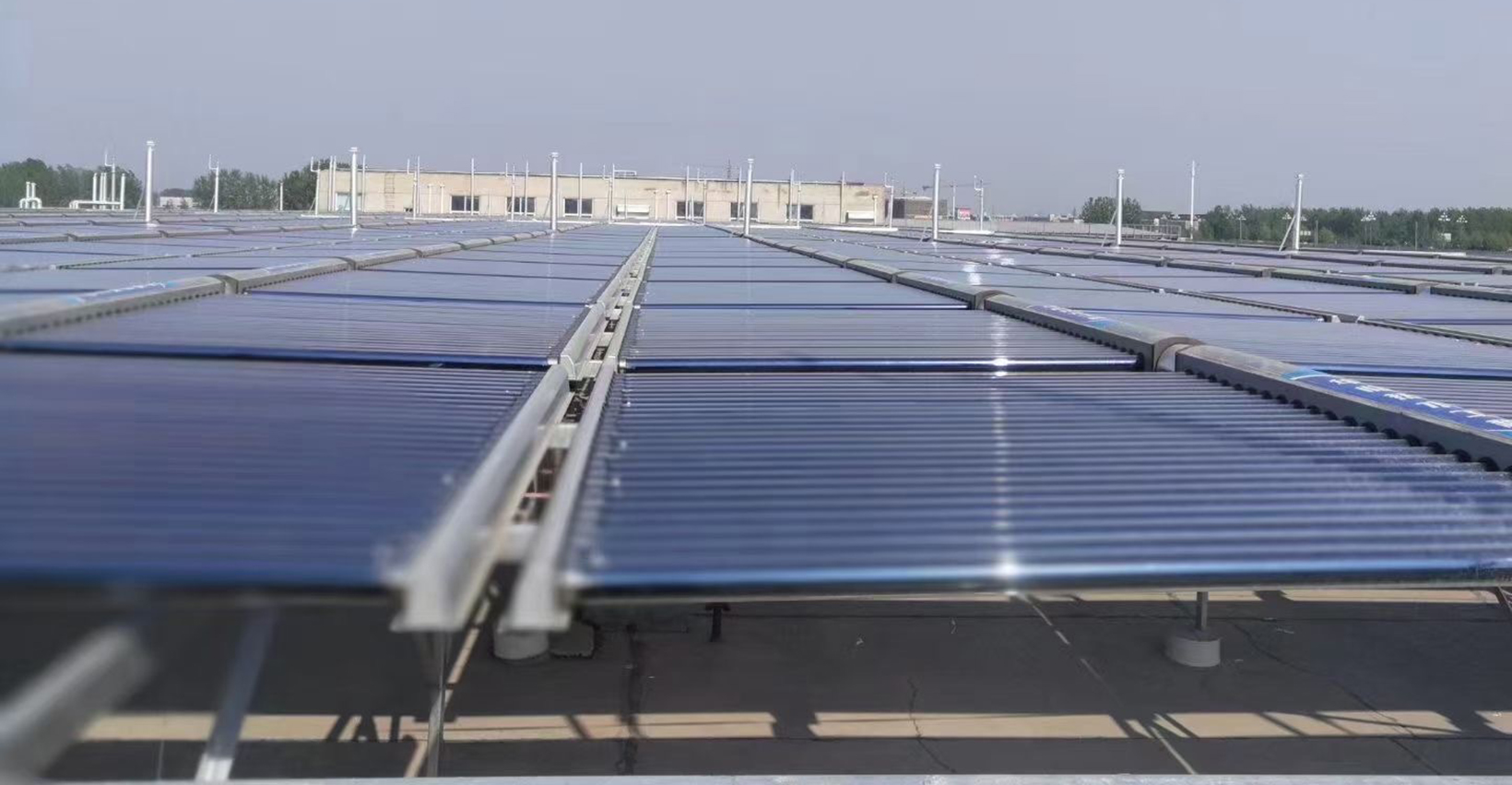

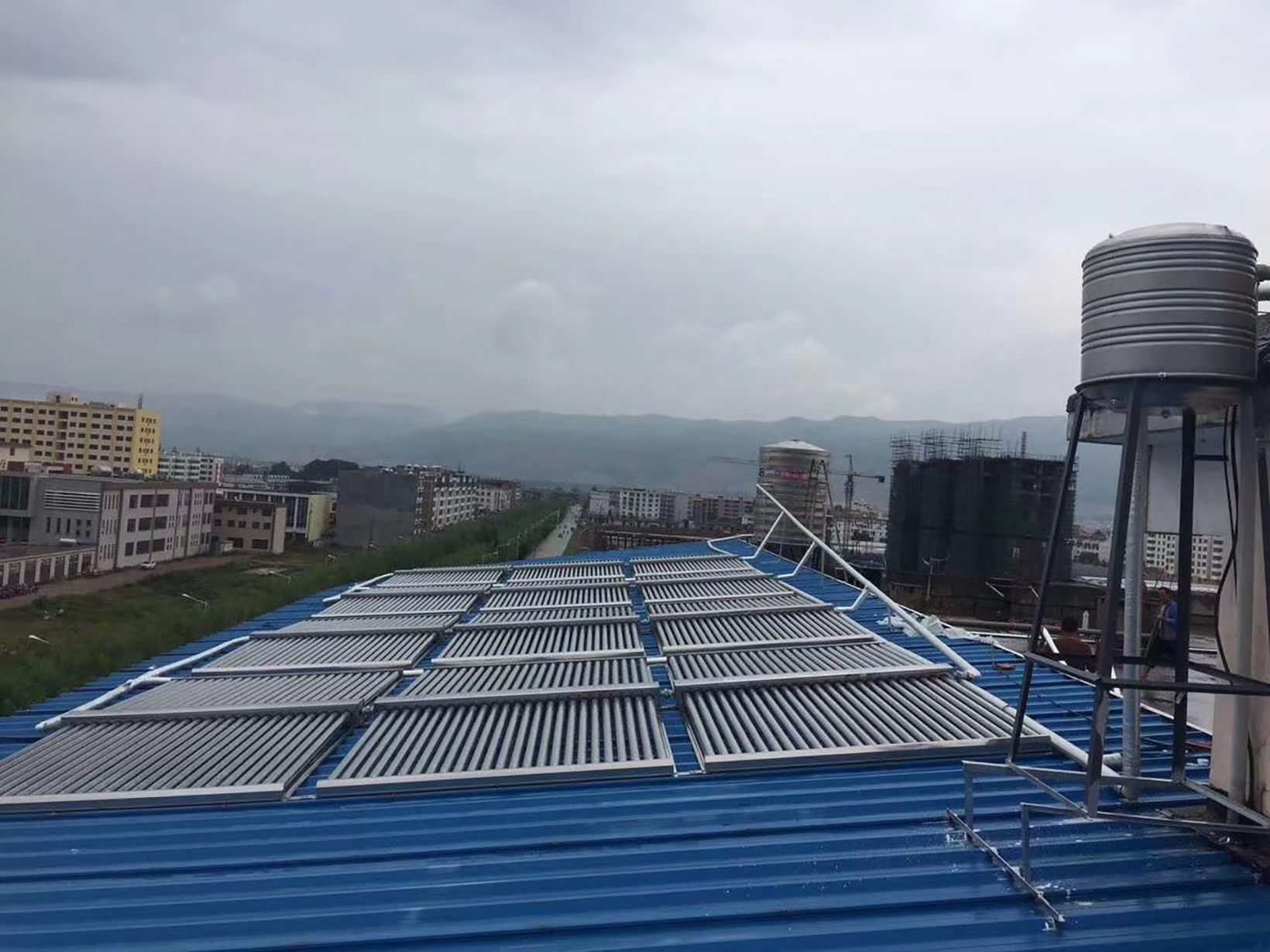

SolarTide SNC series of evacuated tube solar collectors are suitable for both residential and commercial applications.

FEATURES

The design of the SNC solar collector is a culmination of nearly 15 years of feedback from installers and solar professionals all over the world and aims to meet their requirements with the following key features:


● Easy and Safety Packing design

● Stainless Steel 304-2B or 316L for inner manifold

● Zinc-Coated Galvanized Steel frames

● Extremely reliable inner manifold design, less soldering points

● All glass tubes have three absorb coatings with high heat efficiency

● Extreme High density Polyurethane Foam from Europe for insulation layer

● UV stabilized components

● High wind load strength and High snow load strength

● Easy plug-in installation

PRODUCT RANGE

SNC collectors are available in 15 to 50 tube sizes and have a number of options depending on the local market requirements.

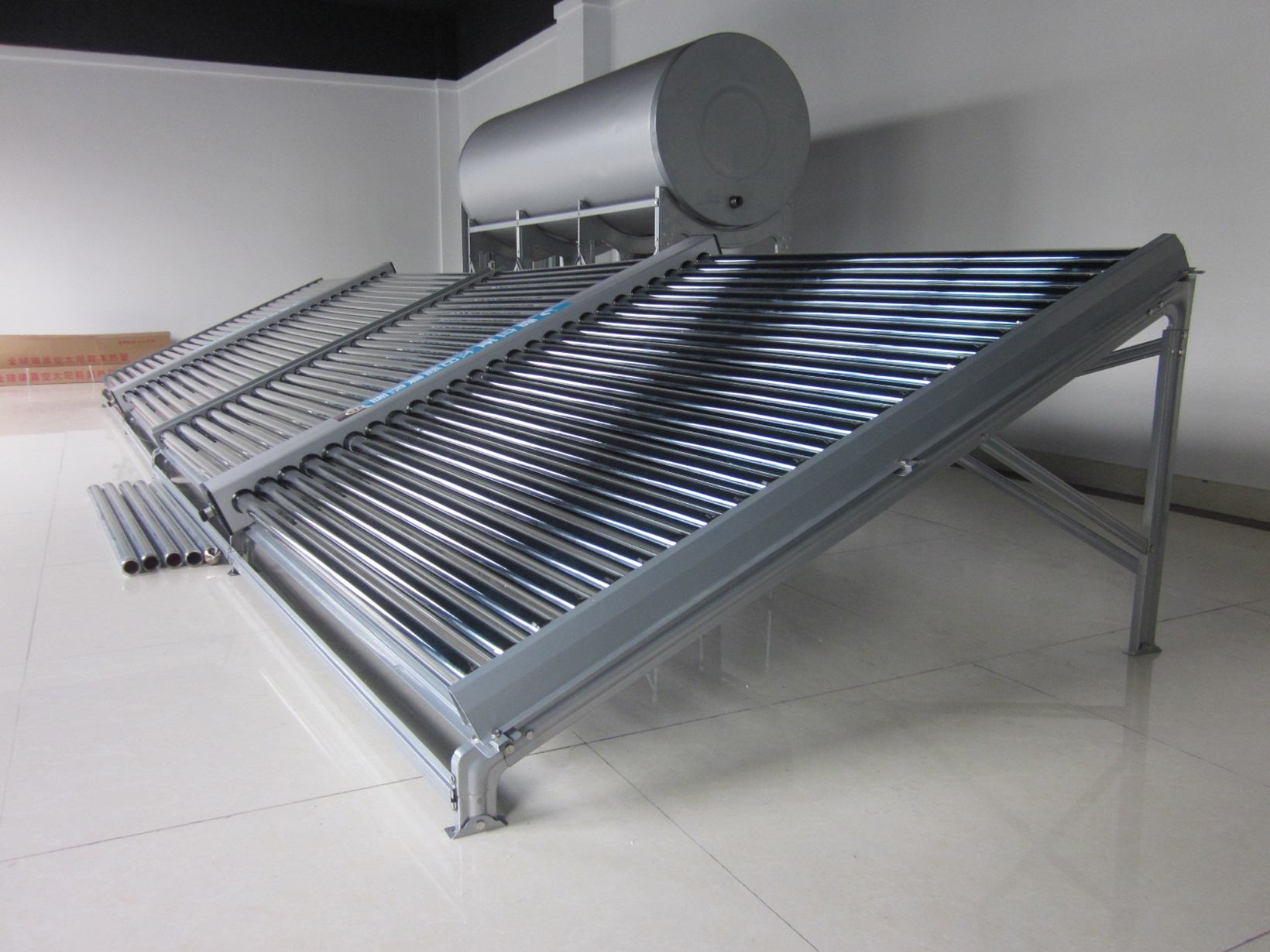

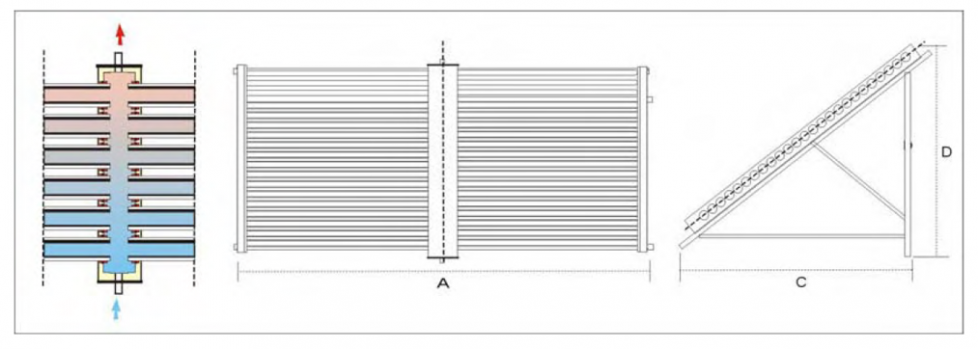

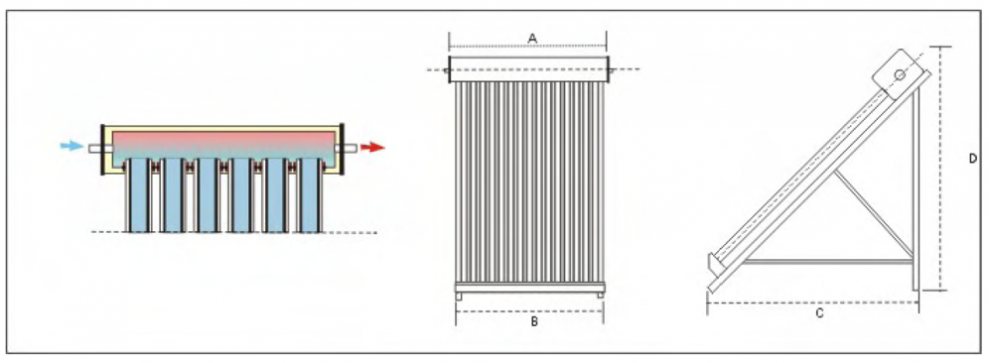

ModelSNCV-15SNCV-20SNCV-30SNCH-40SNCH-50
Lenghth2030mm 3850mm
Width1175mm1550mm2330mm1550mm1950mm
Collector TypeVerticalVerticalVerticalHorizontalHorizontal
Peak Output *1019W1339W2021W2678W3342W
Aperture Area
1.41 m2
1.88 m22.82 m23.76 m24.70 m2
Gross Area2.40 m23.17 m24.80 m26.34 m27.86 m2


*Calculated at midday (trans IAM = 1), G=1000W/m2, ∆T (tm-ta)=0, Location is in Jinxing, China




How It Works



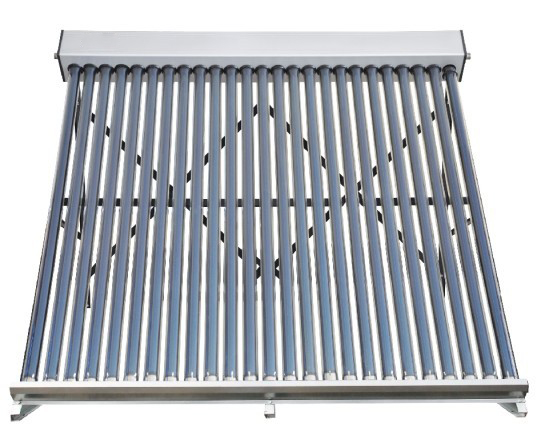

Construction

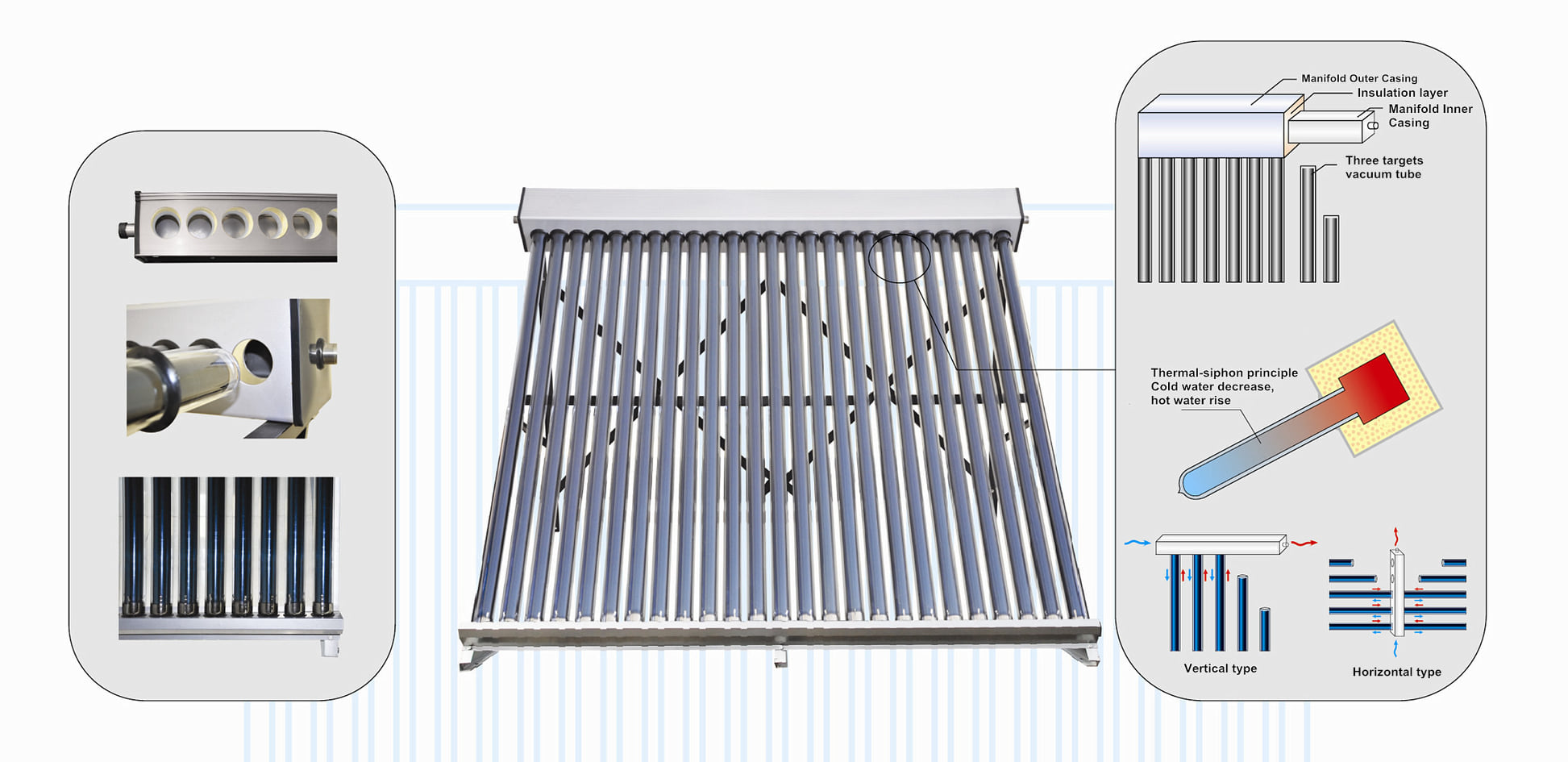

The SNC solar collector is comprised of three main parts:





Evacuated Tube

Absorbs solar energy and converts it to usable heat.  Vacuum between the two glass layers insulates against heat loss.

Manifold

Insulated box containing the stainless steel inner shell and with the extreme high density Polyurethane foam for keeping the hot water.  The header with well design for glass tubes plug into.



Mounting Frame

Strong and easy to install with various options to match different mounting methods.

Operation



Step 1: The absorber coating on the inner glass tube absorbs sunlight and converts it into heat.

Step 2: The cold water inside the inner tubes be heated and become hot water even to steam. The new cold water will go down and hot water will go up automatically.

Step 3: A pump circulates water or heat transfer fluid through the manifold, carrying heat back to the storage tank.  Gradually throughout the day the tank is heated up.




Main Component
Specifications
ComponentMaterials & Specifications
Evacuated Tubes

Material: Borosilicate 3.3

Tube style: Twin wall all glass

Dimensions: ∅58mm outer tube; ∅47mm inner tube;  1.8m length, 1.65mm outer tube wall thickness

Solar Absorber Coating

Material: Graded ALN/SS-CU/ALN, three target coating

Absorptance: >92% (AM1.5);

Emittance: <8% (80 C)

Vacuum: P<5x10-5 Pa;

Heat loss: <0.8W/(m2 C)

Manifold

Outer Shell: Color Painted steel (standard) or Stainless Steel (optional) , 0.31 to 0.5mm thickness

Inner Shell: Stainless Steel 304-2B (standard) or 316L (optional) , 0.31 to 0.5mm thickness

Insulation Layer: Extreme High density Polyurethane Foam from Europe

Operating angle: 15-80 Degrees

Startup temperature: 0 C Degrees

Rubber Components Material: HTV Silicone Rubber (UV stabilized)
Mounting Frame Material: Zinc-Coated Galvanized Steel (standard) or Aluminum ally (optional)  or Stainless Steel (optional)
