Flat Plate Solar Collector

Flat Plate Solar Collector

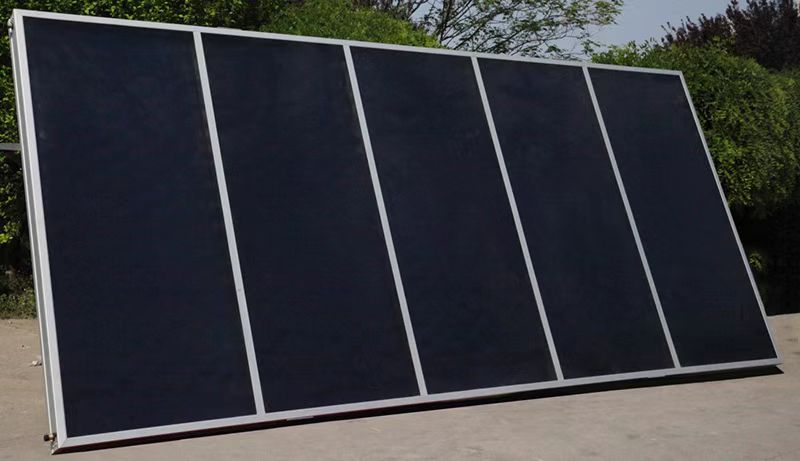

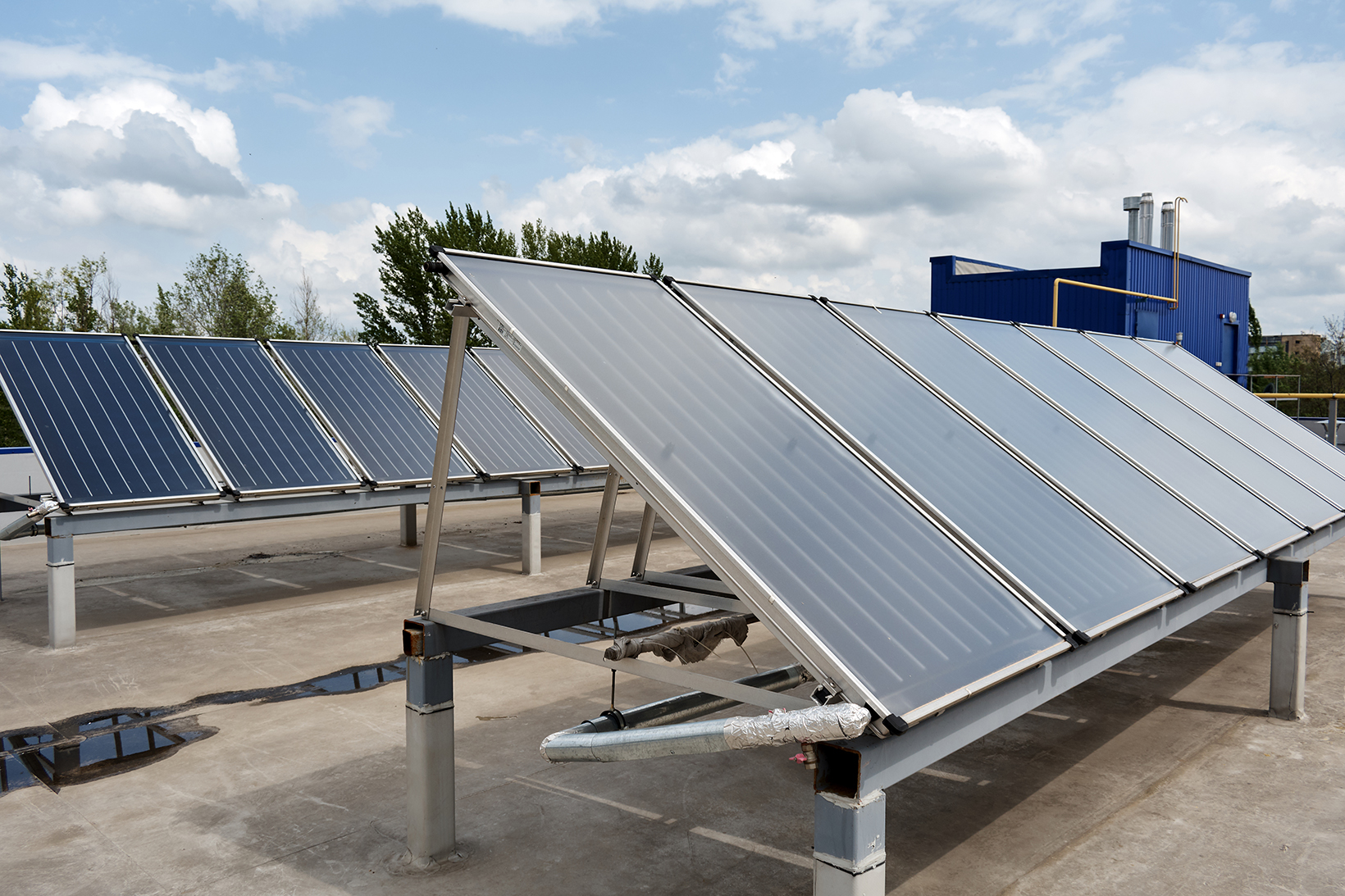

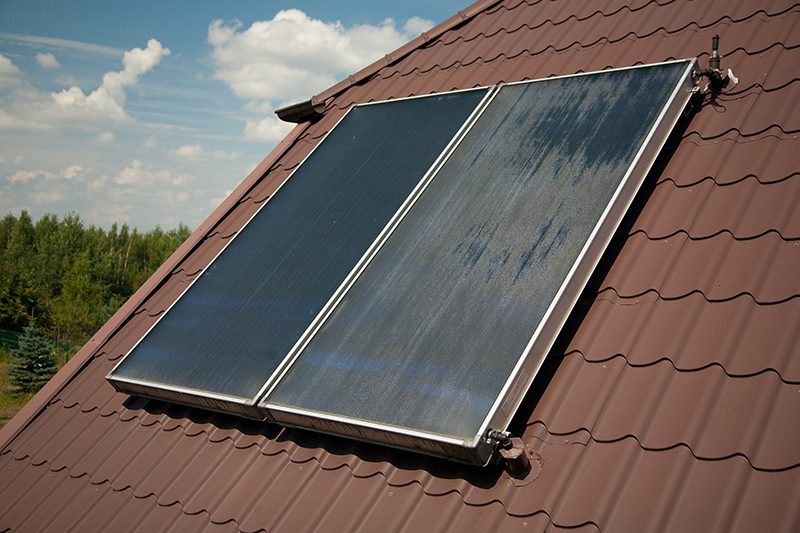

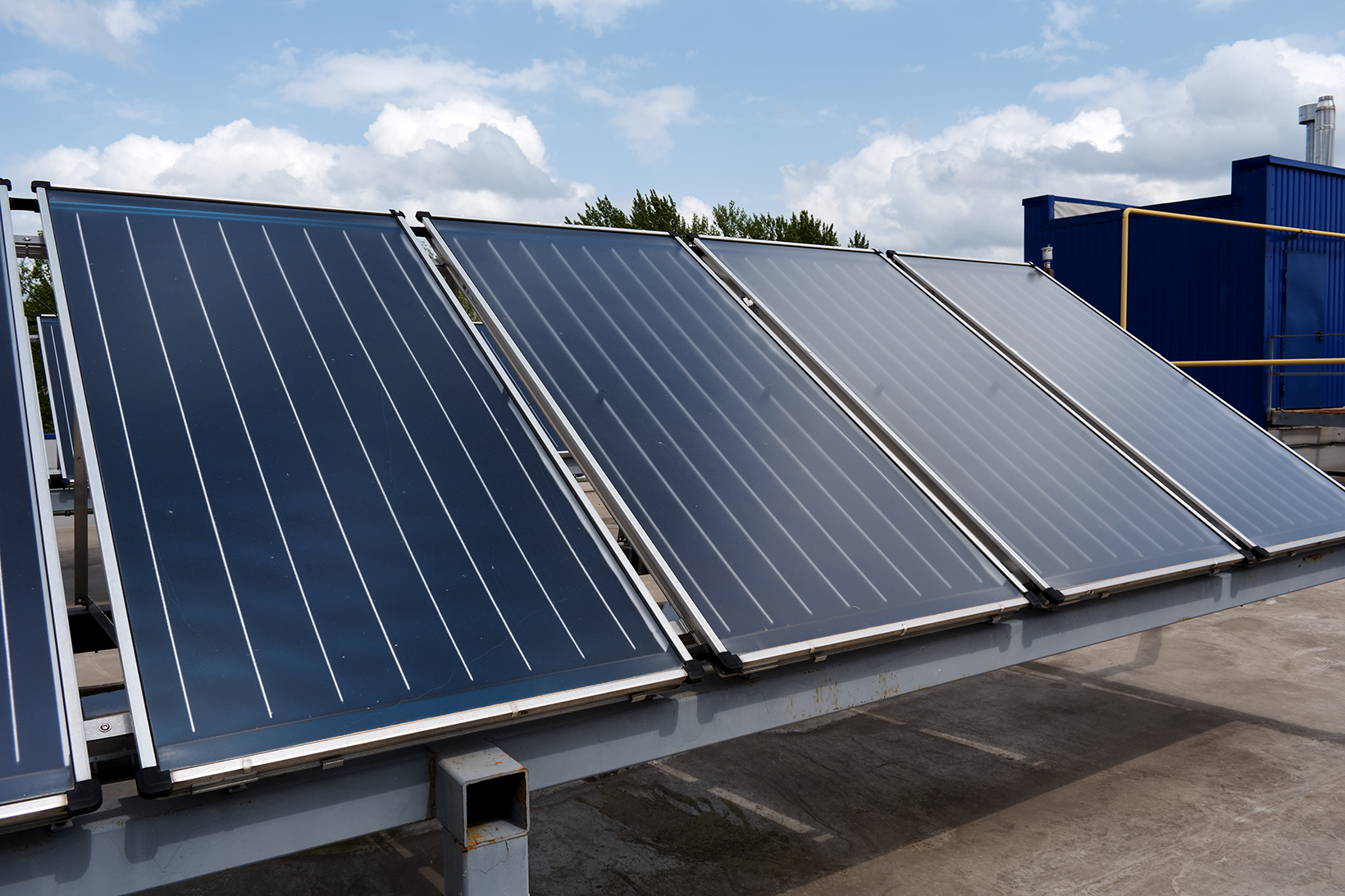

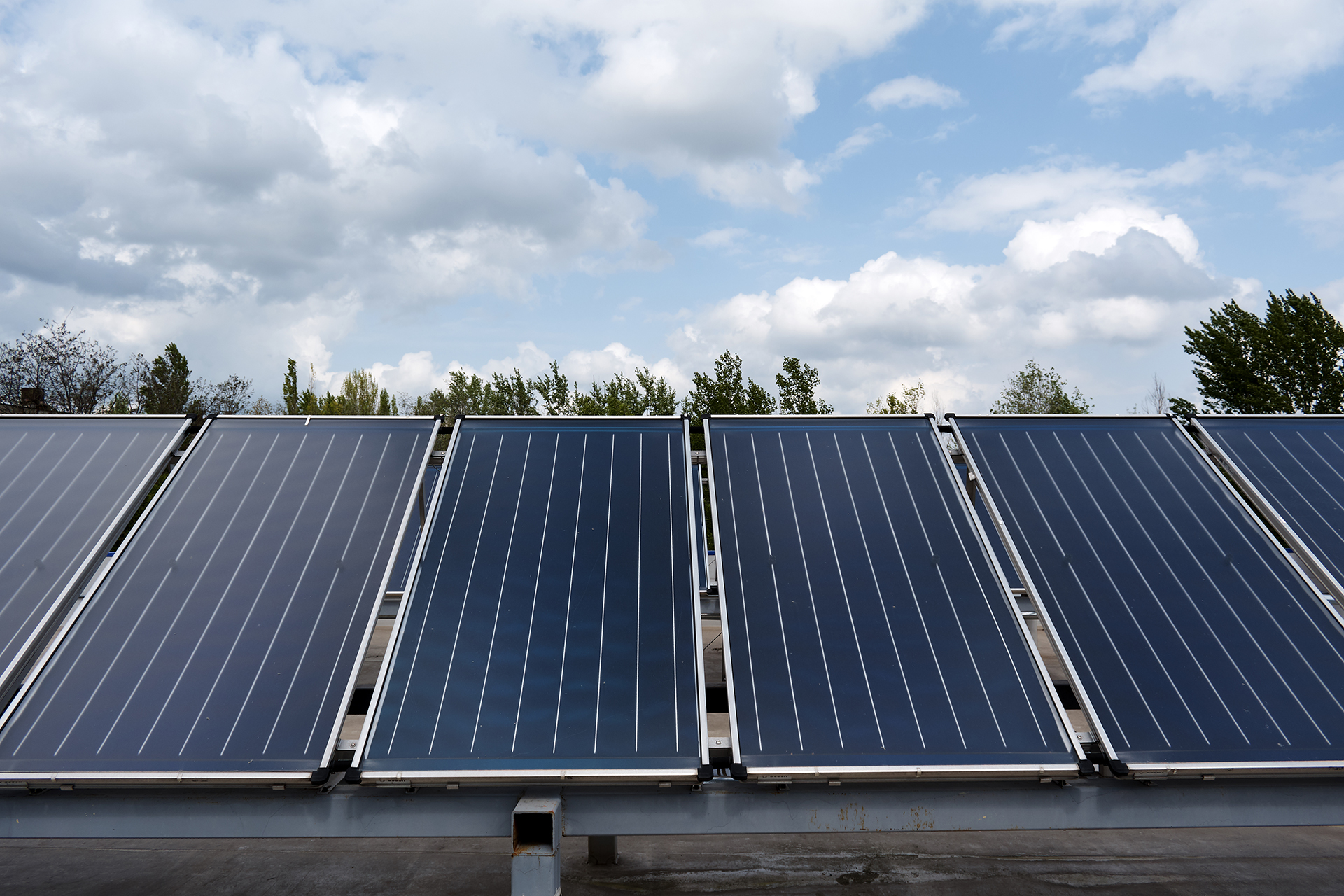

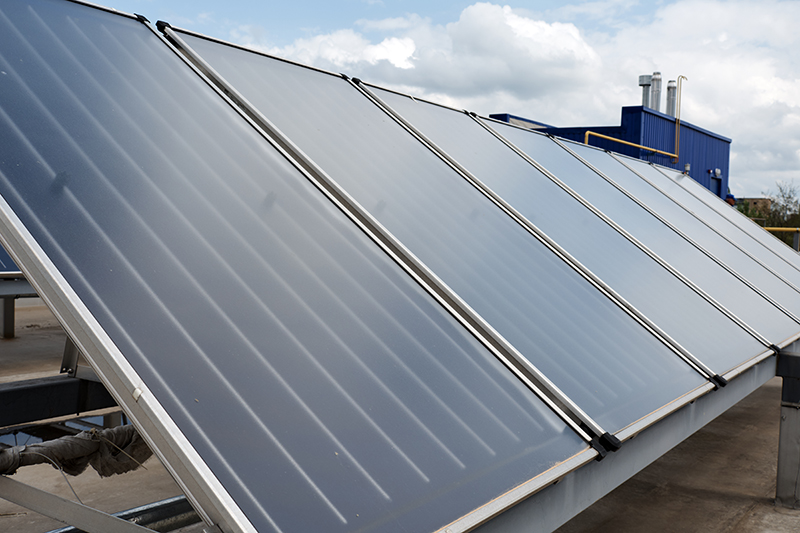

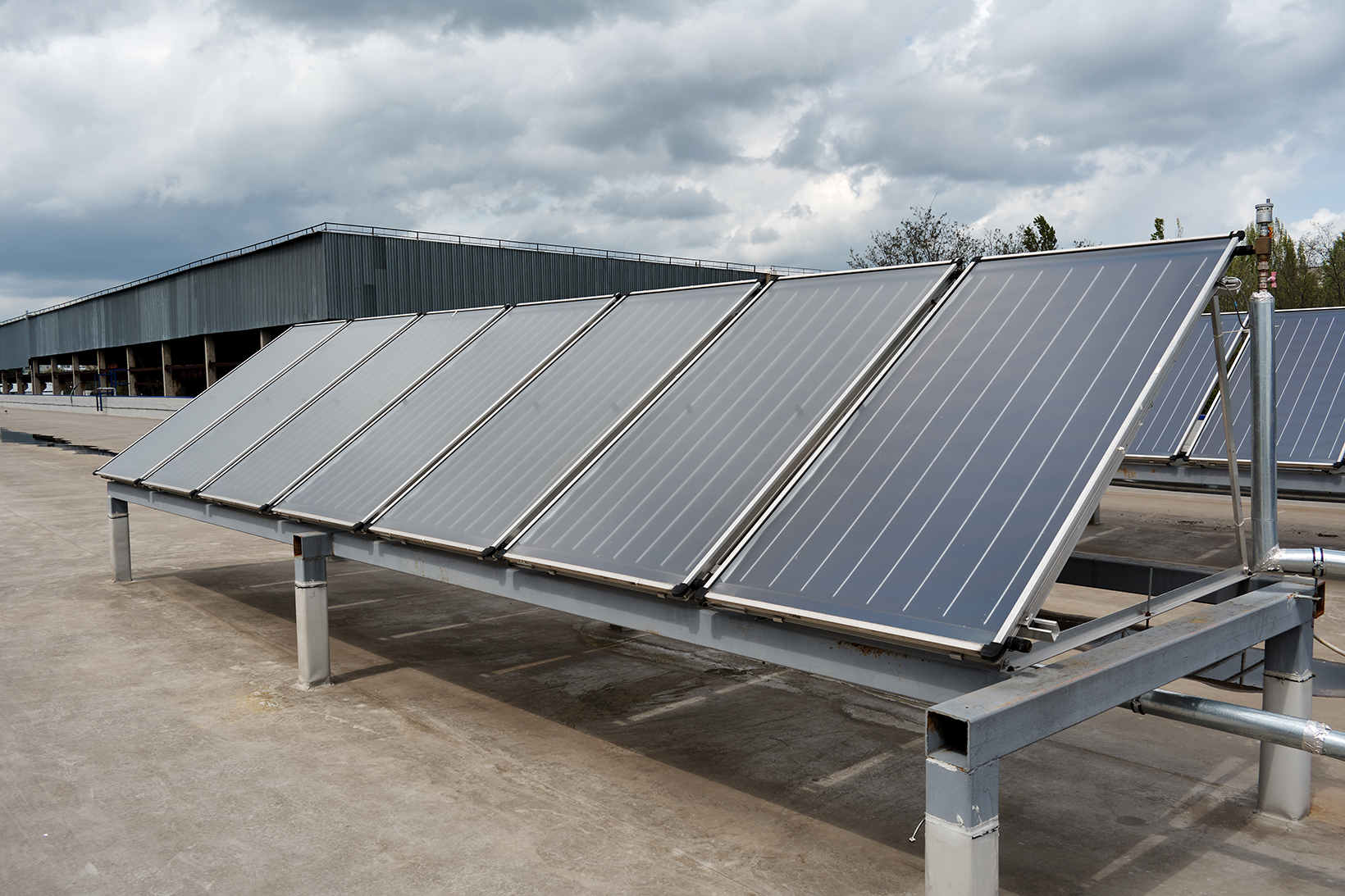

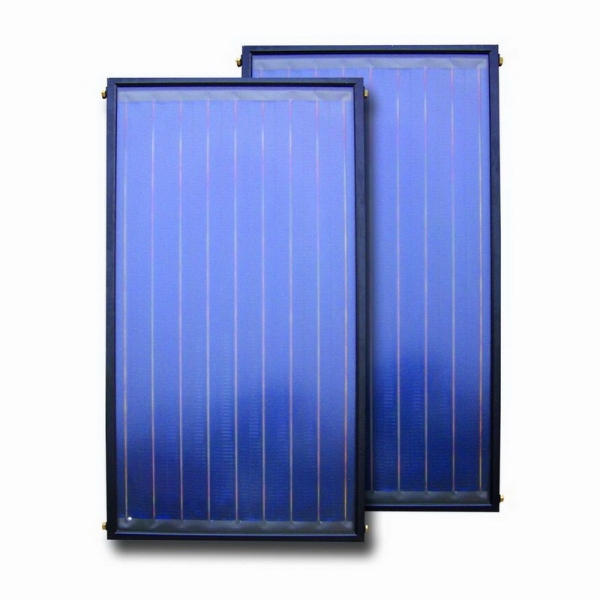

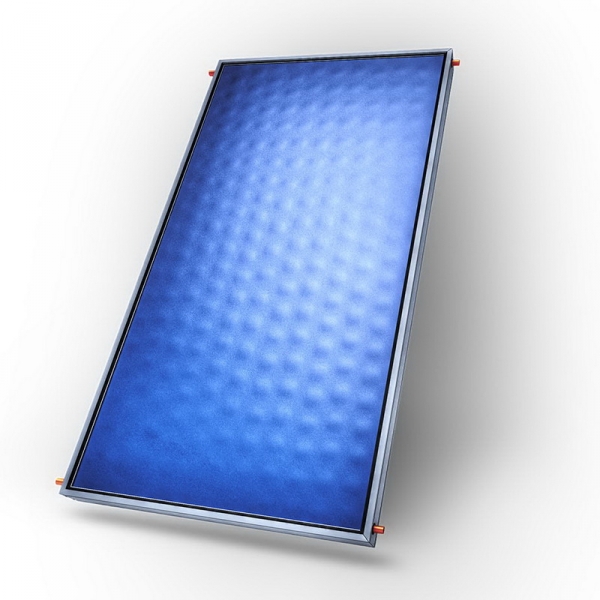

SolarTide STFP series of Flat Plate solar collectors are suitable for both residential and commercial applications.

FEATURES

The design of the STFP solar collector is a culmination of nearly 15 years of feedback from installers and solar professionals all over the world and aims to meet their requirements with the following key features:


● High efficiency coating, laser welding and meander system

● Long service life due to weather-resistant construction

● High efficiency Germany Tinox energy AL solar absorber

● Simple and quick installation, suitable for all installation type

● Ultra lightweight top quality rock wool insulation

● UV stabilized components

● High tensile grade 6063-T5 black anodized aluminum body

● High wind load strength and High snow load strength

● High transparency solar glass


PRODUCT DATA
Model STFP-2
Lenghth2000mm
Width1000mm
Height80mm

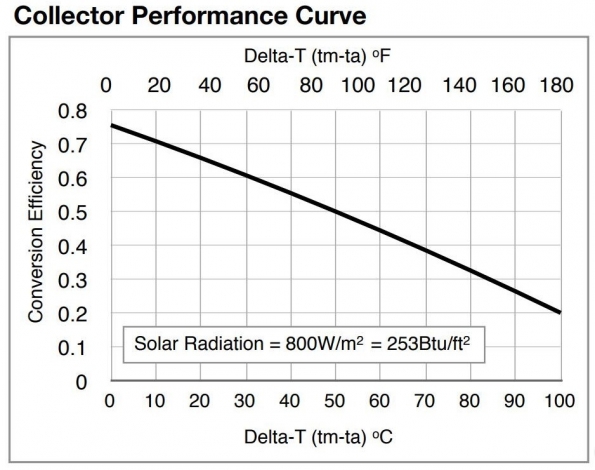

Peak Output *1706 W / 5820 Btuh
Aperture Area
1.86 m2
Gross Area2.00 m2
Gross Dry Weight38.20KGS

*Calculated at midday (trans IAM = 1), G=1000W/m2, ∆T (tm-ta)=0, Location is in Jinxing, China





Main Component
Specifications

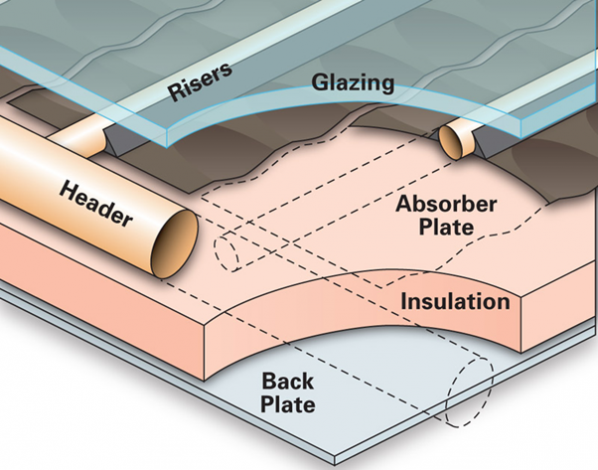

ComponentMaterials & Specifications
Glass CoverToughened glass (glazing) protects the absorber from the outside environment while allowing through >90% of sunlight.

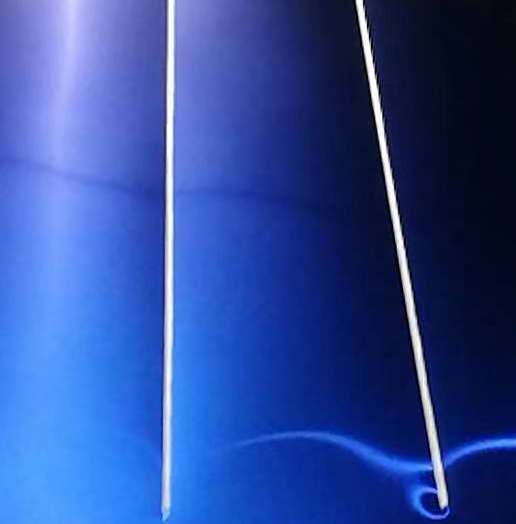

Solar AbsorberA thin sheet of Aluminium is coated with a highly selective material that is extremely efficient at absorbing sunlight and converting it into usable heat.  The aluminium sheet is ultrasonically welded to the copper riser pipes.
Back SheetAn aluminium alloy sheet seals the back of the panel and adds to the rigidity of the collector.
Riser & Head PipesThe header and riser pipes are brazed together to form a harp shaped heat exchanger that the solar system heat transfer fluid circulates through.  The absorber sheet is ultrasonically welded to the riser pipes, thus transfers heat to the heat transfer fluid.
Aluminium RailsExtruded from high tensile 6063 aluminium alloy, the rails form the outer framework of the collector and are designed with wings for easy mounting frame attachment.
