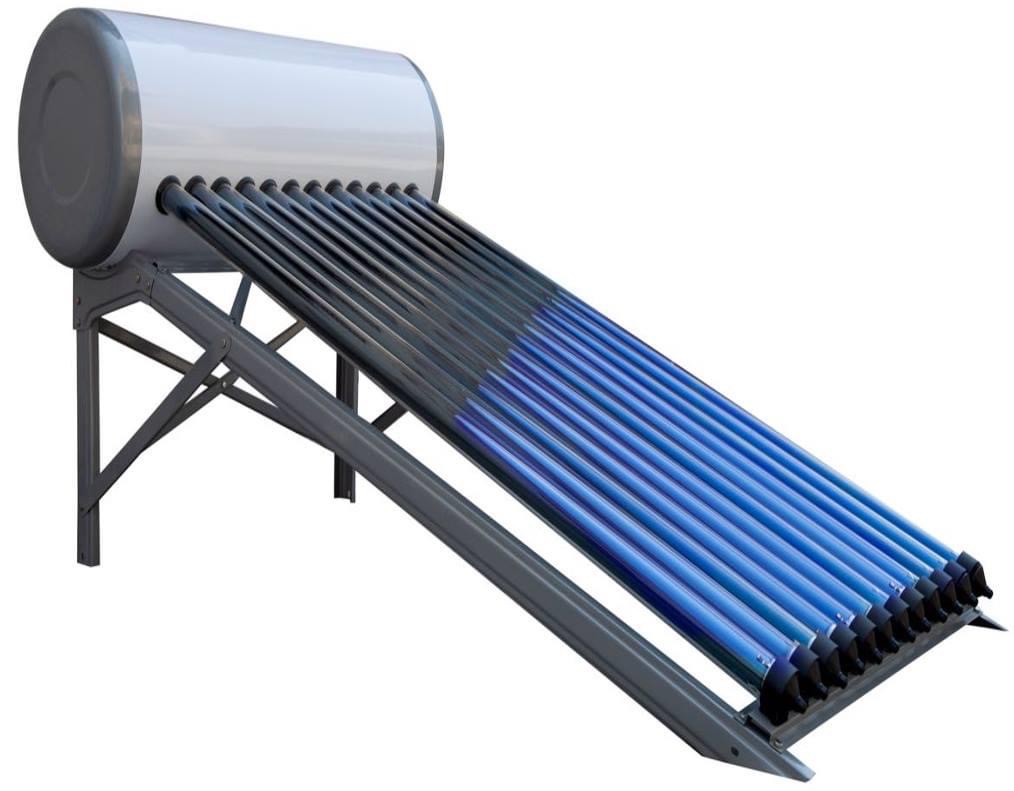

Heat Pipe Integrated Pressurized Solar Water Heater

Heat Pipe Integrated Pressurized Solar Water Heater

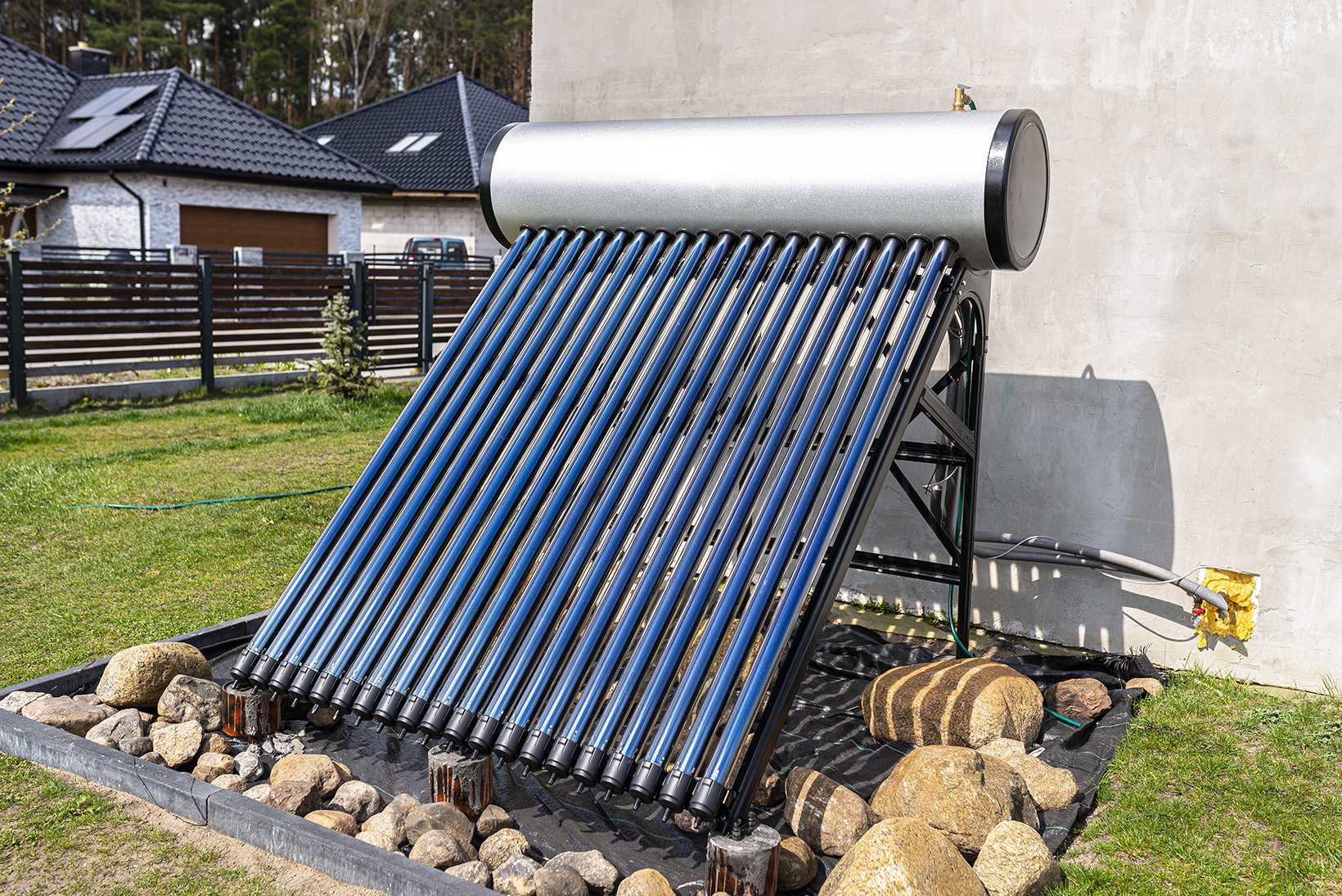

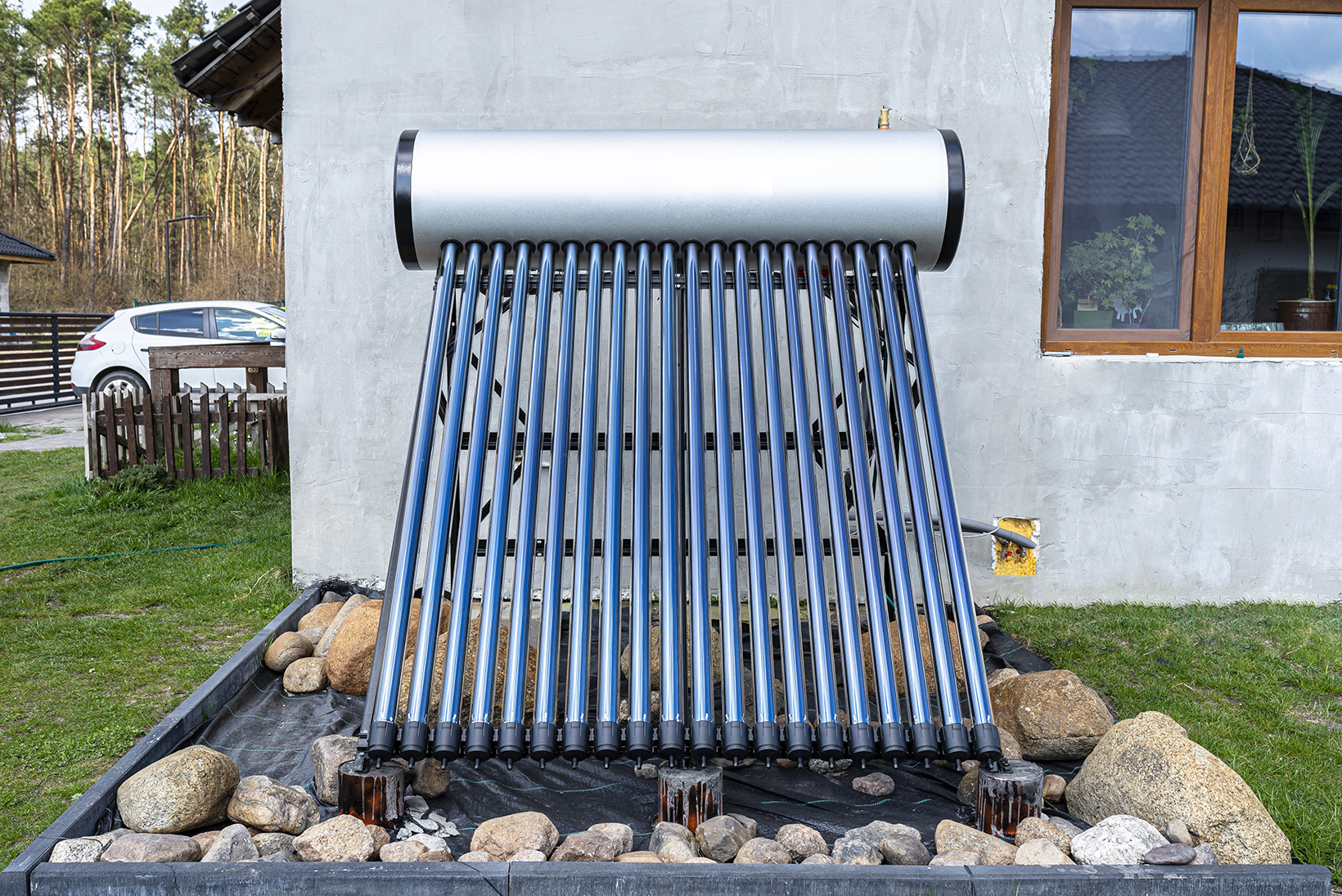

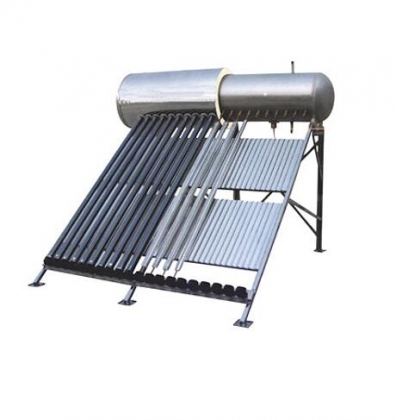

SolarTide STHP series of Heat Pipe Integrated Pressurized Solar Water Heater are suitable for both residential and commercial applications.

FEATURES

SolarTide heat pipe pressurized system is a renovate model for the solar hot water, which adopts advanced heat pipe technology, combines heat pipe solar collector with pressurized tank to form a compact model.


● Hot water goes out with high pressure

● Completely automatic operation

● Work at pressure Max. to 6 Bar, connected directly with city water

● Combined the heat pipe technology, quickly start up

● No water inside the tubes, the system can still work even with      several tubes breakage

● Anti-freezing, all-year-round service even in extremely cold area

● Gas or electrical boost options are available

● High wind load strength and High snow load strength

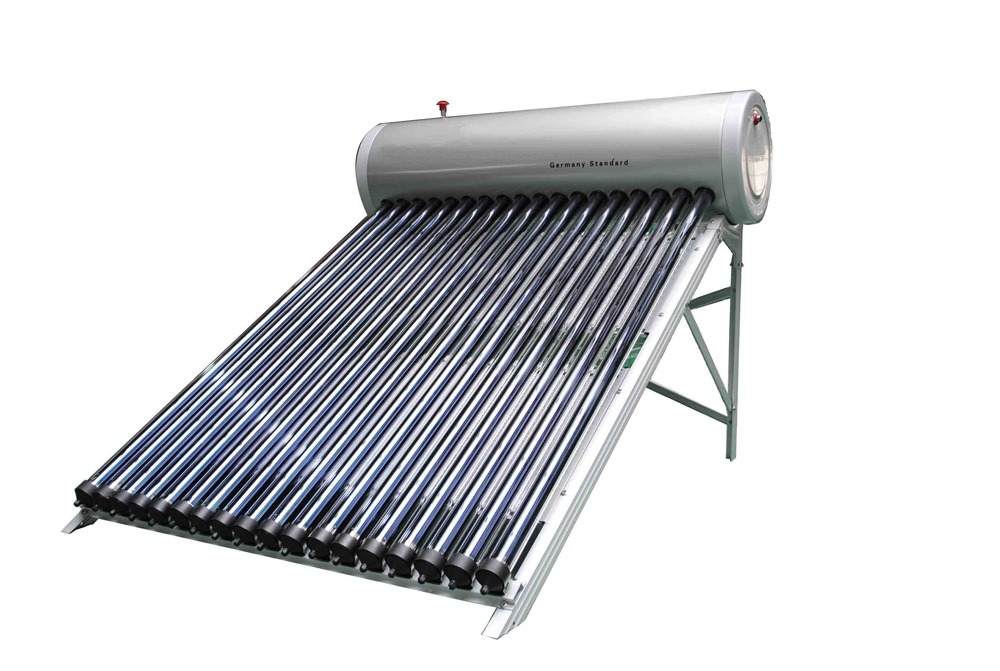

PRODUCT RANGE

STHP system are available from 100-360L sizes and have a number of options depending on the local market requirements.


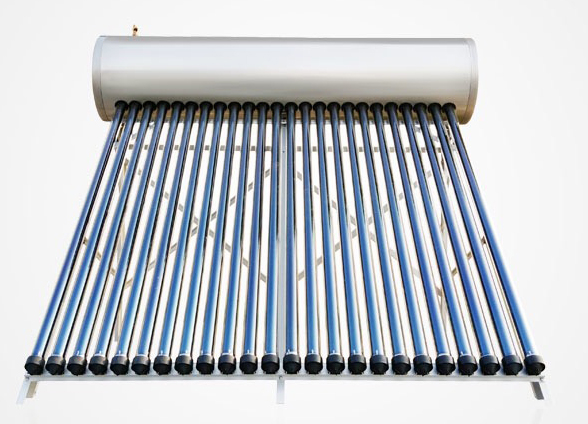

ModelSTHP-15STHP-20STHP-25STHP-30

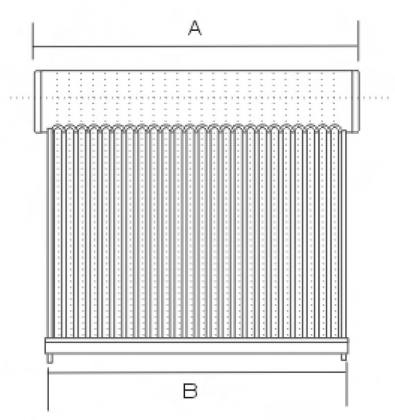

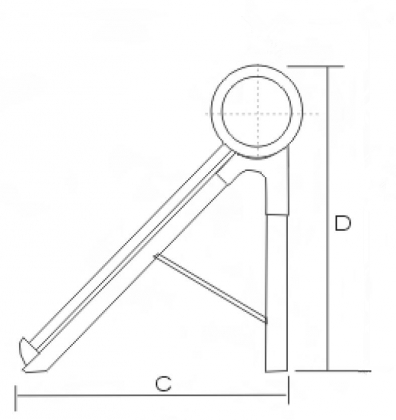

Size A1390mm1625mm2198mm2550mm
Size B1430mm1552mm1983mm2330mm
Size C1560mm1560mm1560mm1560mm
Size D1650mm1650mm1650mm1650mm
Avilable Persons*1 ~ 22 ~ 33 ~ 44 ~ 5
Peak Output **1009W1335W1667W2019W
Gross Area2.40 m23.17 m23.93 m24.70 m2
System Capacity150 L200 L250 L300 L
Tube Quantity15202530


*The no. of available person is also depend on your local weather condition and if you also use for washing and floor heating
**Calculated at midday (trans IAM = 1), G=1000W/m2, ∆T (tm-ta)=0, Location is in Jinxing, China




How It Works



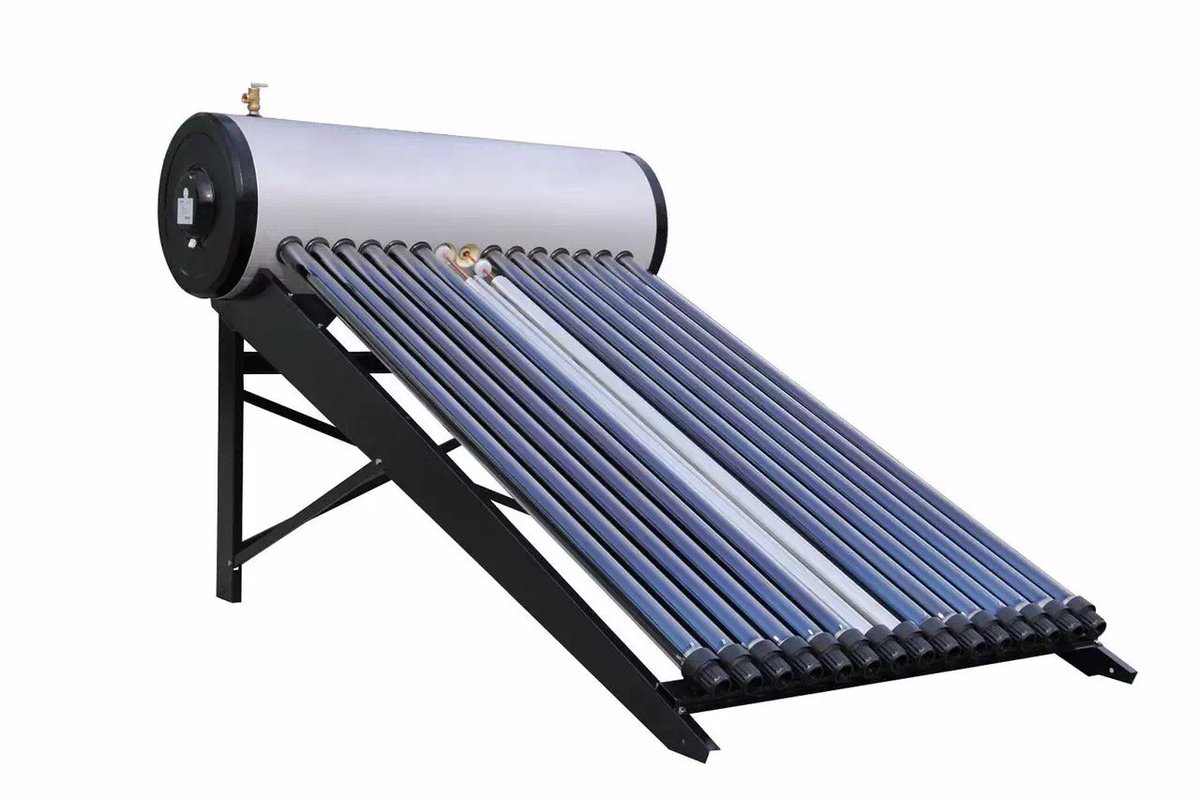

Construction

The SolarTide Solar Water Heater  is comprised of three main parts:


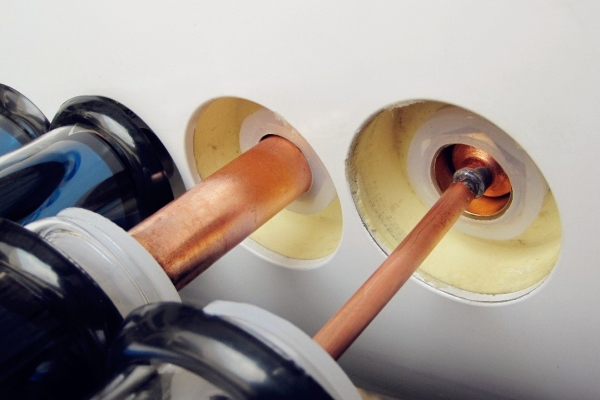

Evacuated Tube with Heat Pipe

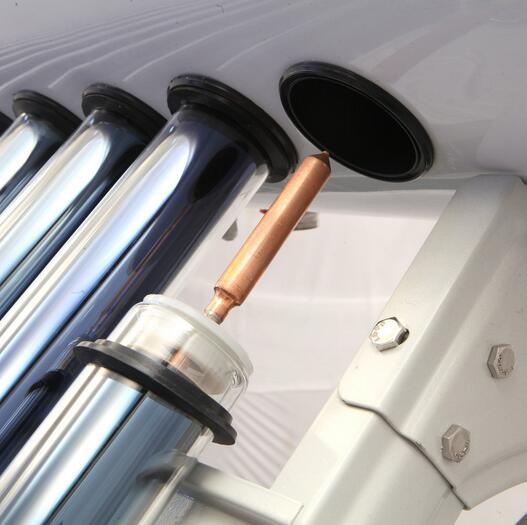

Absorbs solar energy and converts it to usable heat. Vacuum between the two glass layers insulates against heat loss. Heat energy been transfered from glass tubes to the copper heat pipe, then to the inner tank.


Water Tanks

It stock the hot water from the glass tubes and heat pipe, and keep the heat.


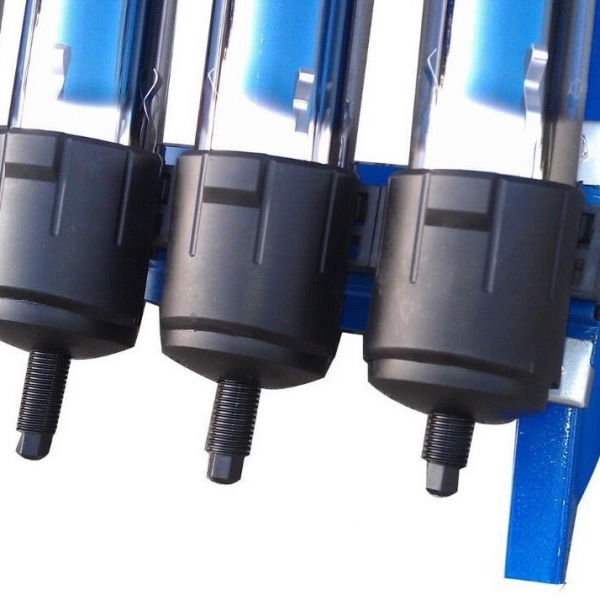

Mounting Frame

Strong and easy to install with various options to match different mounting methods.


Operation

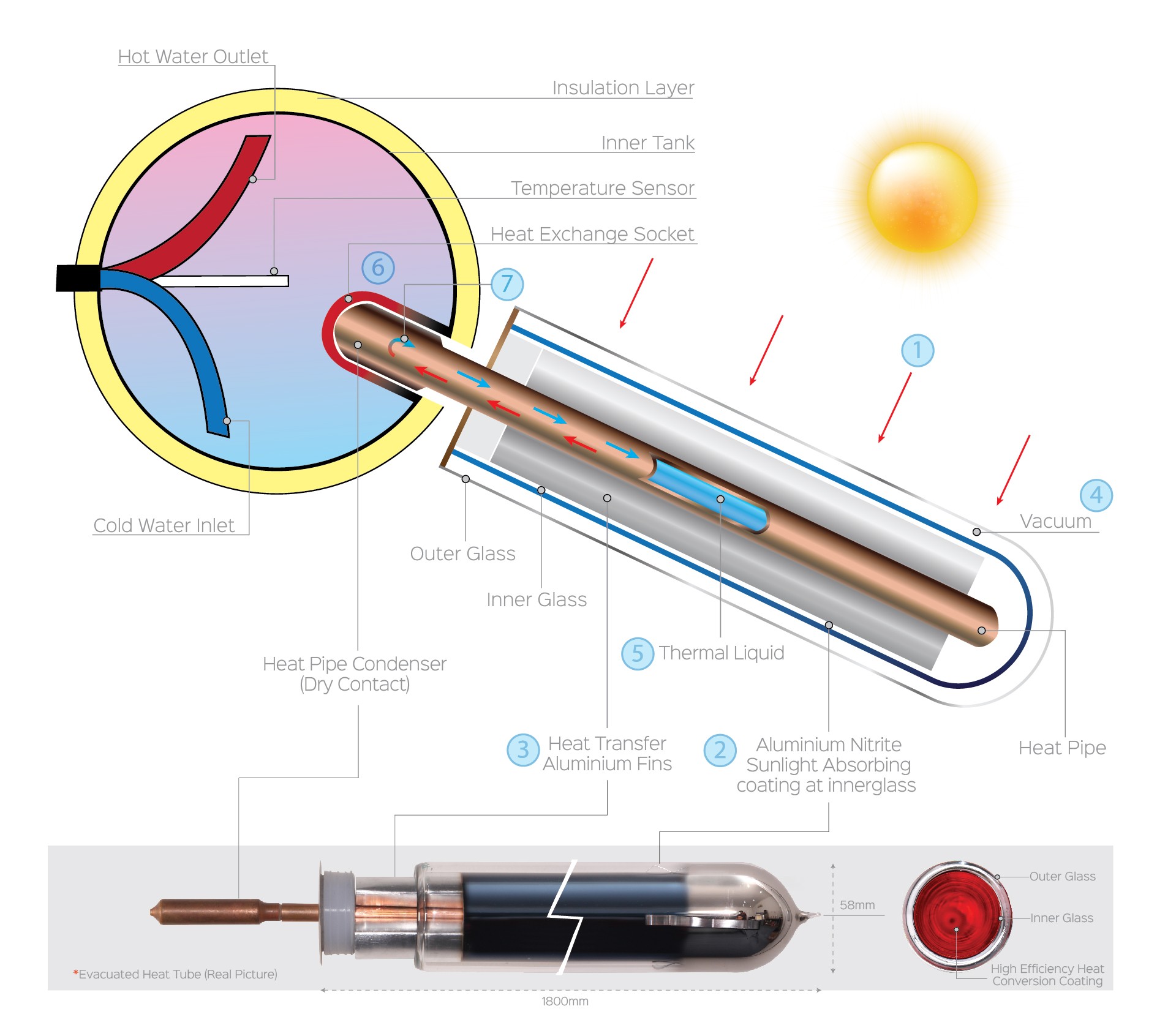

Step 1:  The absorber coating on the inner glass tube absorbs sunlight and converts it into heat. Then the heat been transfered to the Aluminum fin and heat pipe, finally into the inner tank.

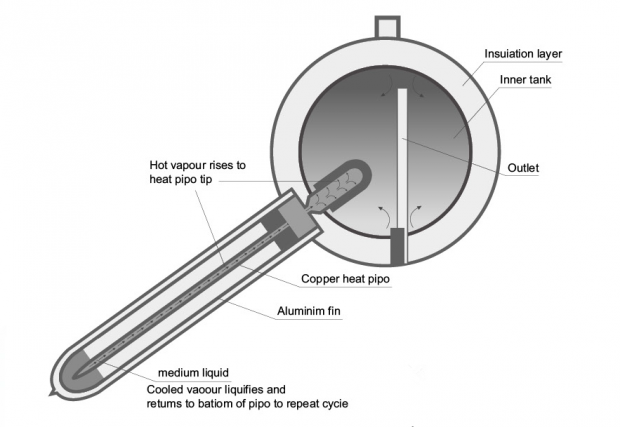

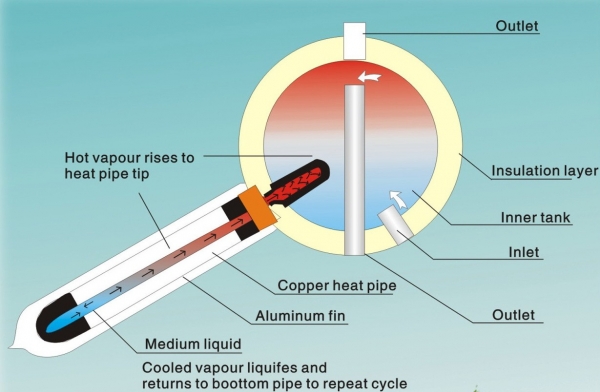

Step 2:  The hot vapour inside the top of heat pipe, cold down by the cold water inside the inner tank, and become liquid and back to the bottom of heat pipe. And ready for a new circulation.


Step 3:  The cold water go into the water tank through the cold water inlet, and push out the hot water inside the inner tank from the hot water outlet.

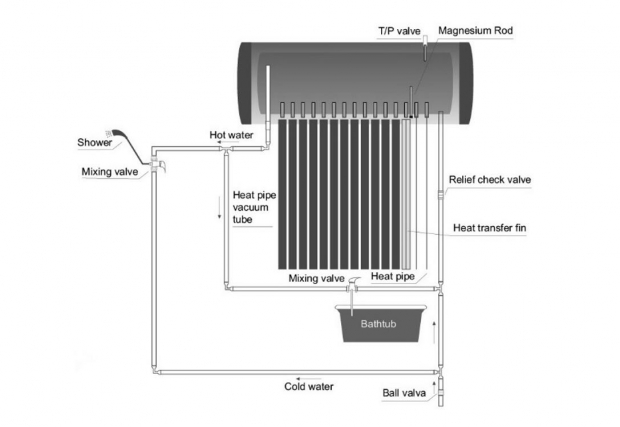

System structure






Main Component
Specifications
Component Materials & Specifications
Evacuated Tubes Material: Borosilicate 3.3
Tube style: Twin wall all glass
Dimensions: ∅58mm outer tube; ∅47mm inner tube;  1.8m length, 1.65mm outer tube wall thickness
Solar Absorber Coating Material: Graded ALN/SS-CU/ALN, three target coating
Absorptance: >92% (AM1.5);
Emittance: <8% (80 C)
Vacuum: P<5x10-5 Pa;
Heat loss: <0.8W/(m2 C)
Water Tank

Outer Tank: Φ460mm/Φ470mm/Φ480mm/Φ500mm, Stainless Steel 304-BA or 201-BA or Color Steel , 0.4mm thickness

Inner Tank: Φ360mm/Φ370mm/Φ380mm, Stainless Steel 304-2B or 316L, 1.0-2.0mm thickness

Insulation Layer: 50 to 70mm thickness, High density Polyurethane Foam from Germany

Operating temperature: 55-95 C

Lowest Startup temperature: -35 C

Rubber Components Material: HTV Silicone Rubber (UV stabilized)
Mounting Frame Material: Stainless Steel 304-BA or 201-BA or Aluminum alloy or Galvanised Steel
Heat Pipes

Material: High purity “oxygen free” copper (ASTM: C10200; DIN: OF-Cu)

Heat transfer fluid: distilled water + special metal powder

Maximum heat transfer capacity: 220W / 750Btu

Operating angle: 20-80 Degrees

Startup temperature: ~30 C / 86 F
