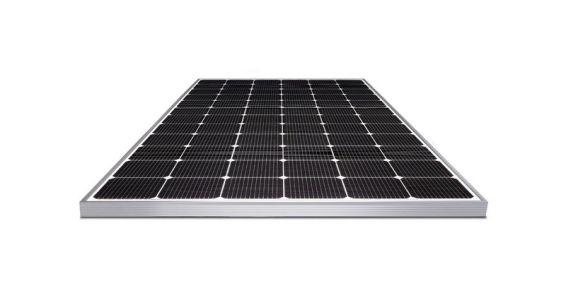

Solar PV Panels

Solar PV Panels

The SolarTide solar panels offer maximum reliability and energy density for project planners and investors.

FEATURES

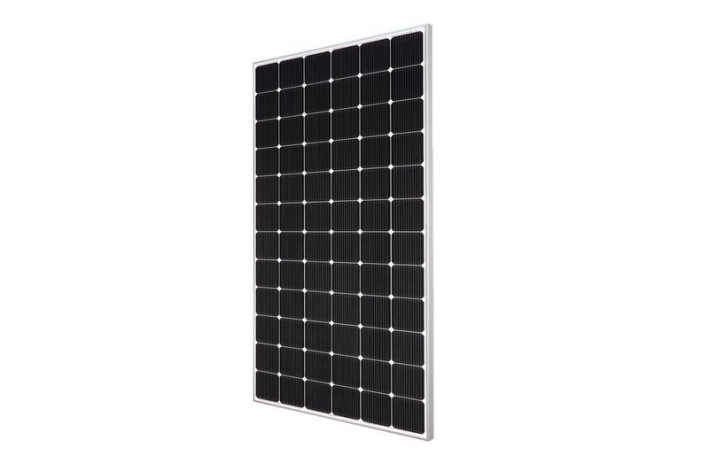

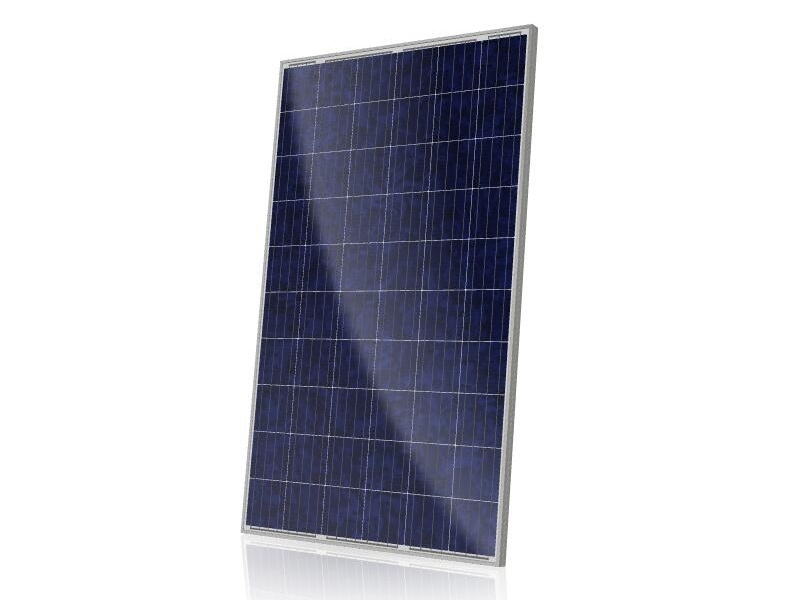

SolarTide Mono & Poly solar panels deliver efficient performance and long-lasting durability at a great value. Compared to other technologies, it converts the greatest percentage of sunlight into electricity. This means that over the lifetime of your system, you’ll generate more electricity and save more money on your electricity bills.

FEATURES

High Conversion Efficiency

Module efficiency up to 18.5% achieved through advanced cell technology and manufacturing capabilities.

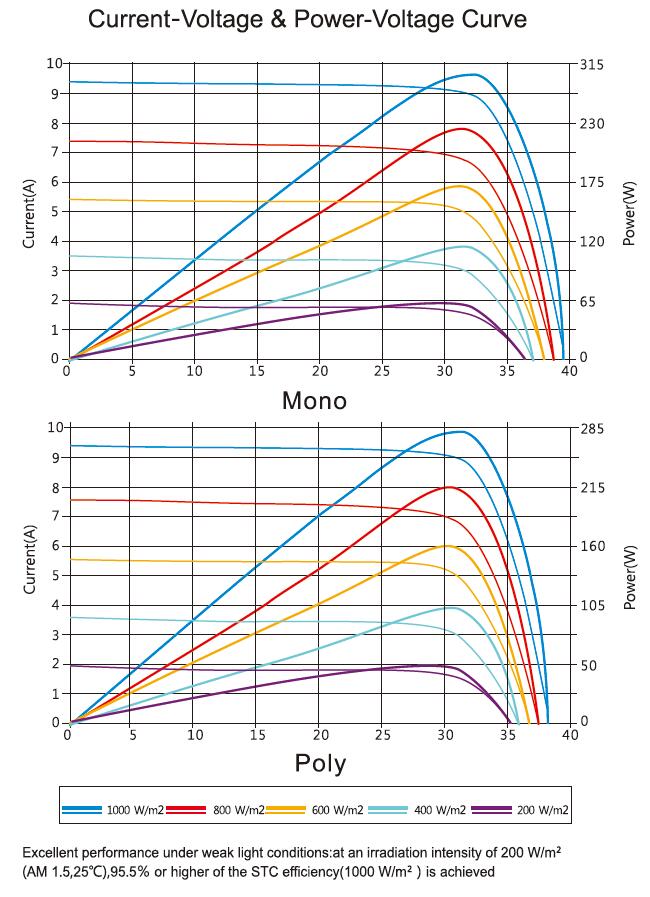

Excellent Weak Light Perfermance

Excellent performance under low light conditions.

Positive Tolerance

Possitive tolerance of up to 0-3W delivers higher outputs reliability.

Current Sorting Process

System output maximized by reducing mismatch losses up to 2% with modules sorted & packaged by amperage.

Extended Wind & Snow Load Tests

Module certified to withstand extreme wind with 3800 Pascal and snow loads with 5400 Pascal.

Withstanding Harsh Environment

Reliable quality leads to a better sustainablity even in harsh environment like desert, farm and coastline.

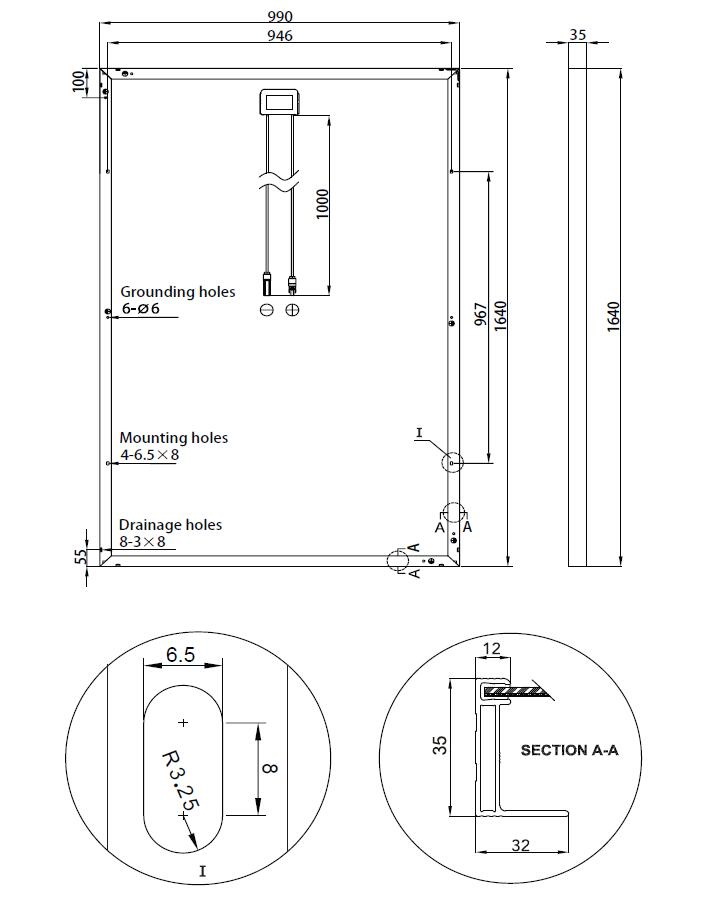

Mechanical Characteristics

Cell Type :

156*156mm, Mono / Poly , 72pcs in series

Demensions :

1956*992*40mm

Weight :

27KGS

Front Cover :

3.2mm Tempered glass

Frame :

Anodized Aluminum Alloy

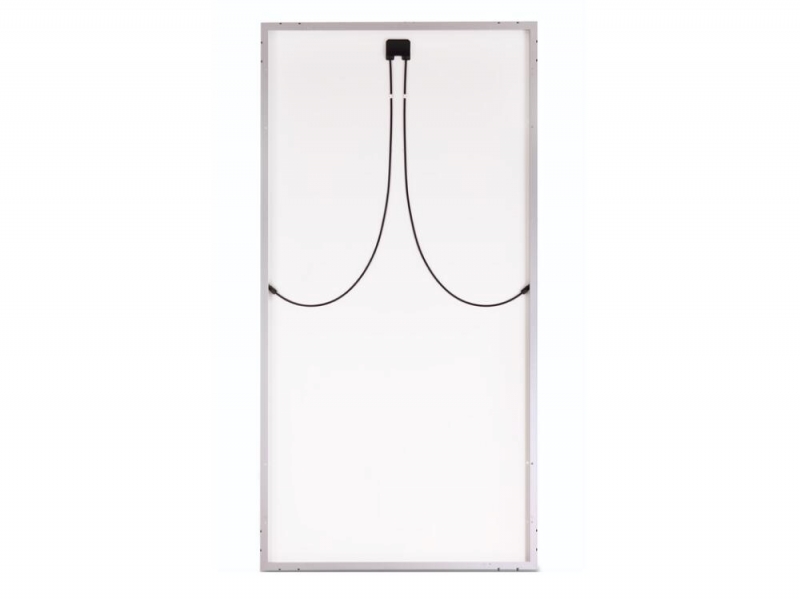

Junction Box :

IP67 Rated

Cable :

4mm2(EU) / 12AWG(US), 1200mm

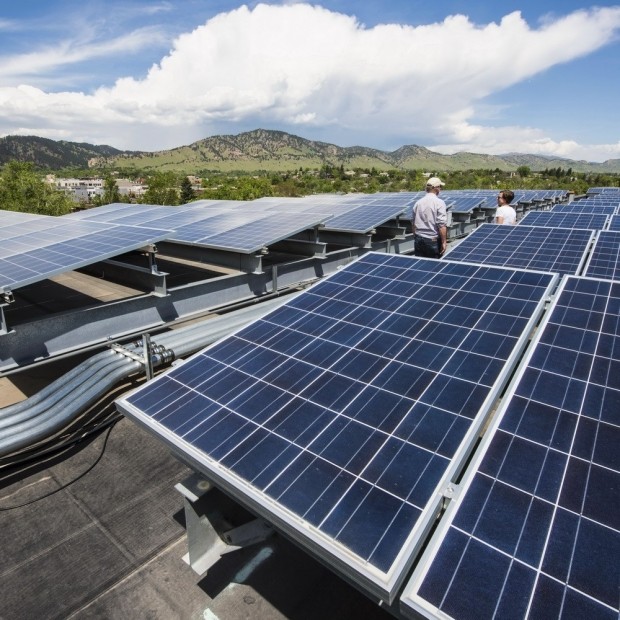

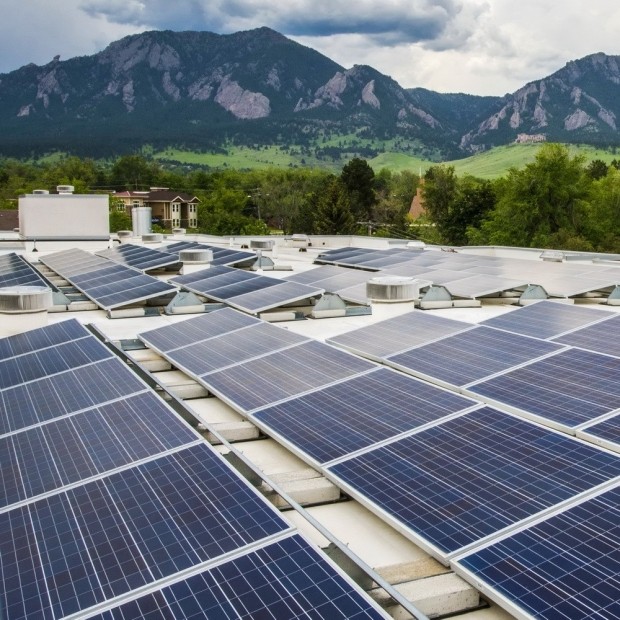

COMMERCIAL PROJECTS

SolarTide not only offer the residential Home PV systems, but also works for large commercial PV systems.

Looking for a high quality commercial solar PV system? Contact us today.
