SolarTide

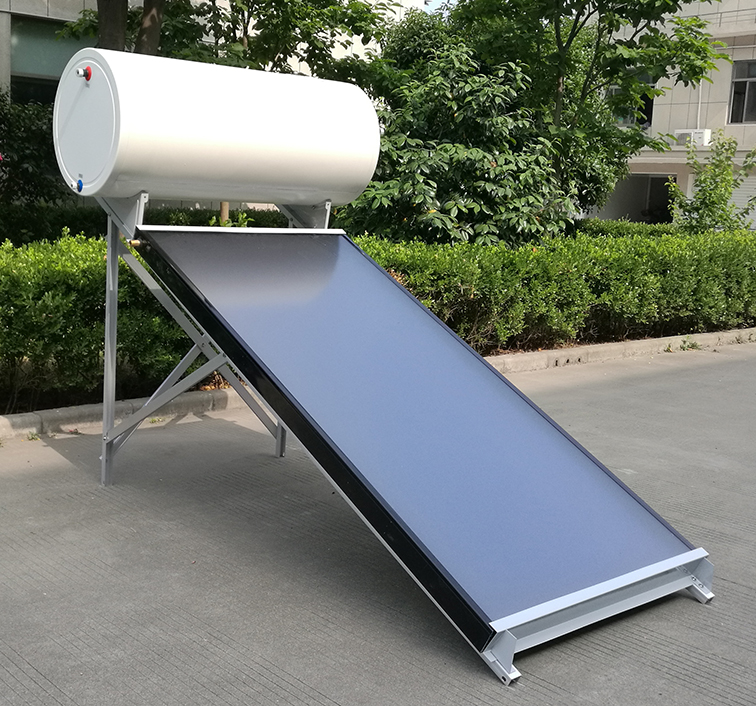

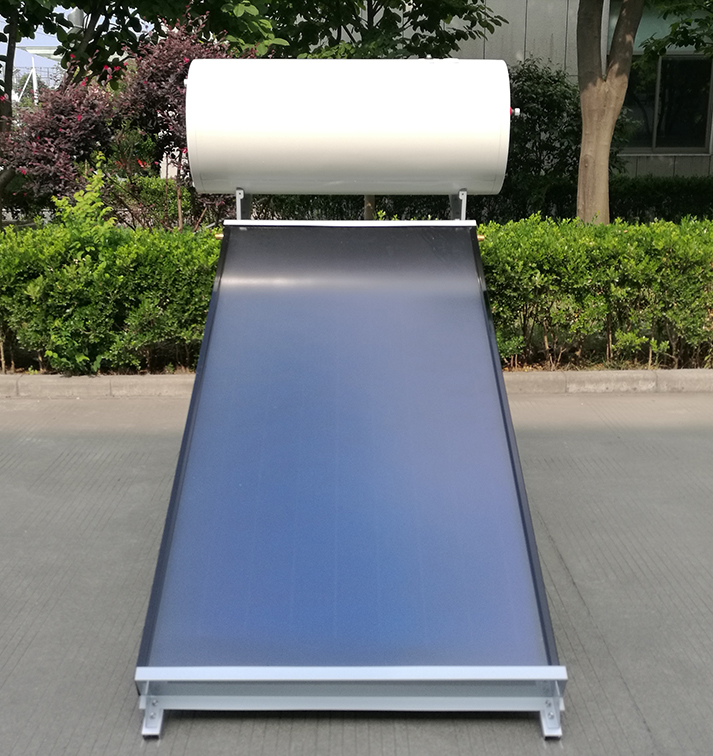

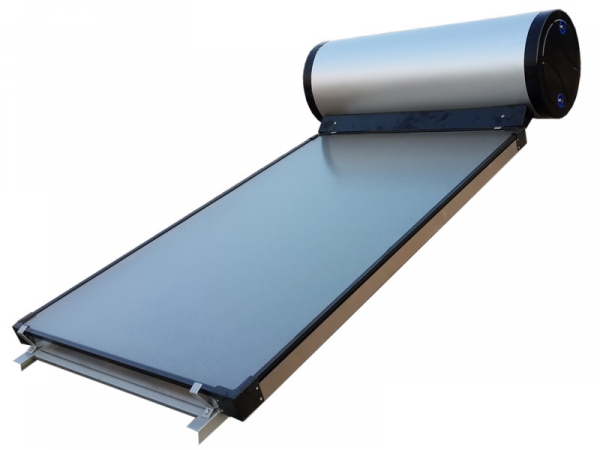

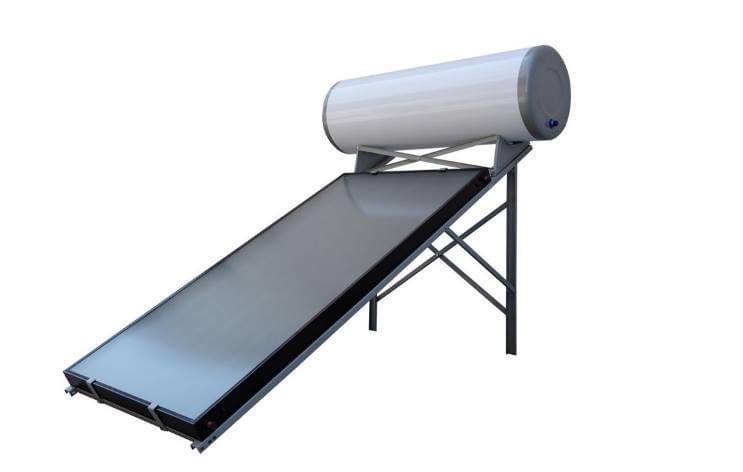

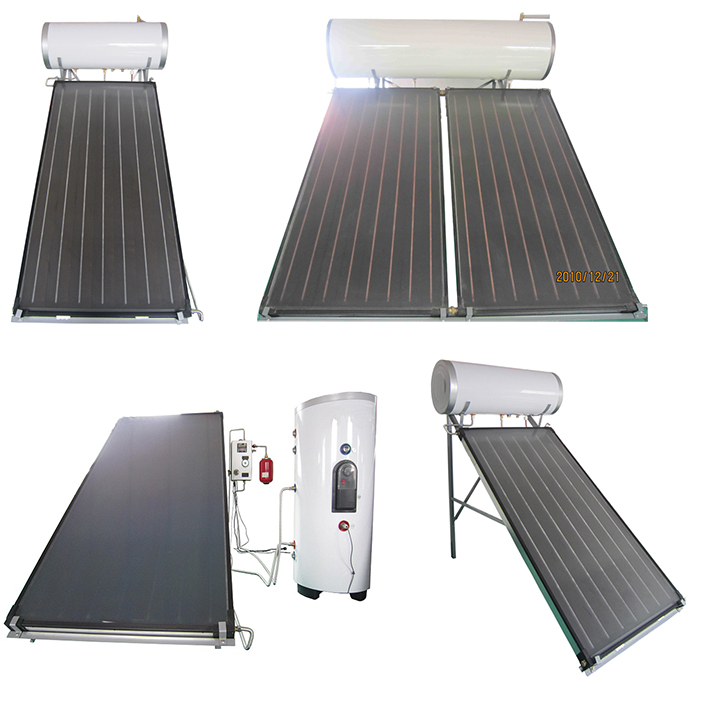

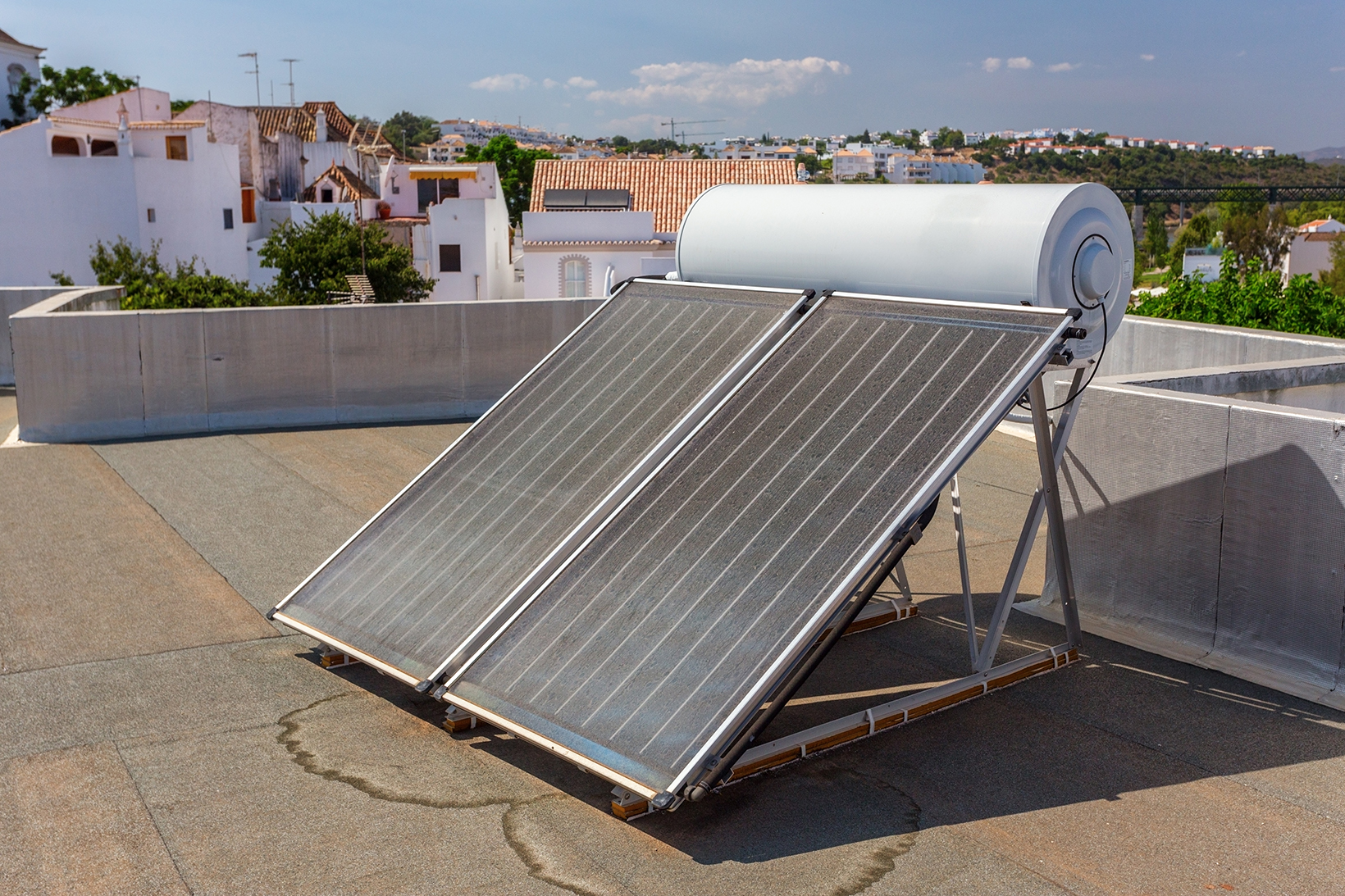

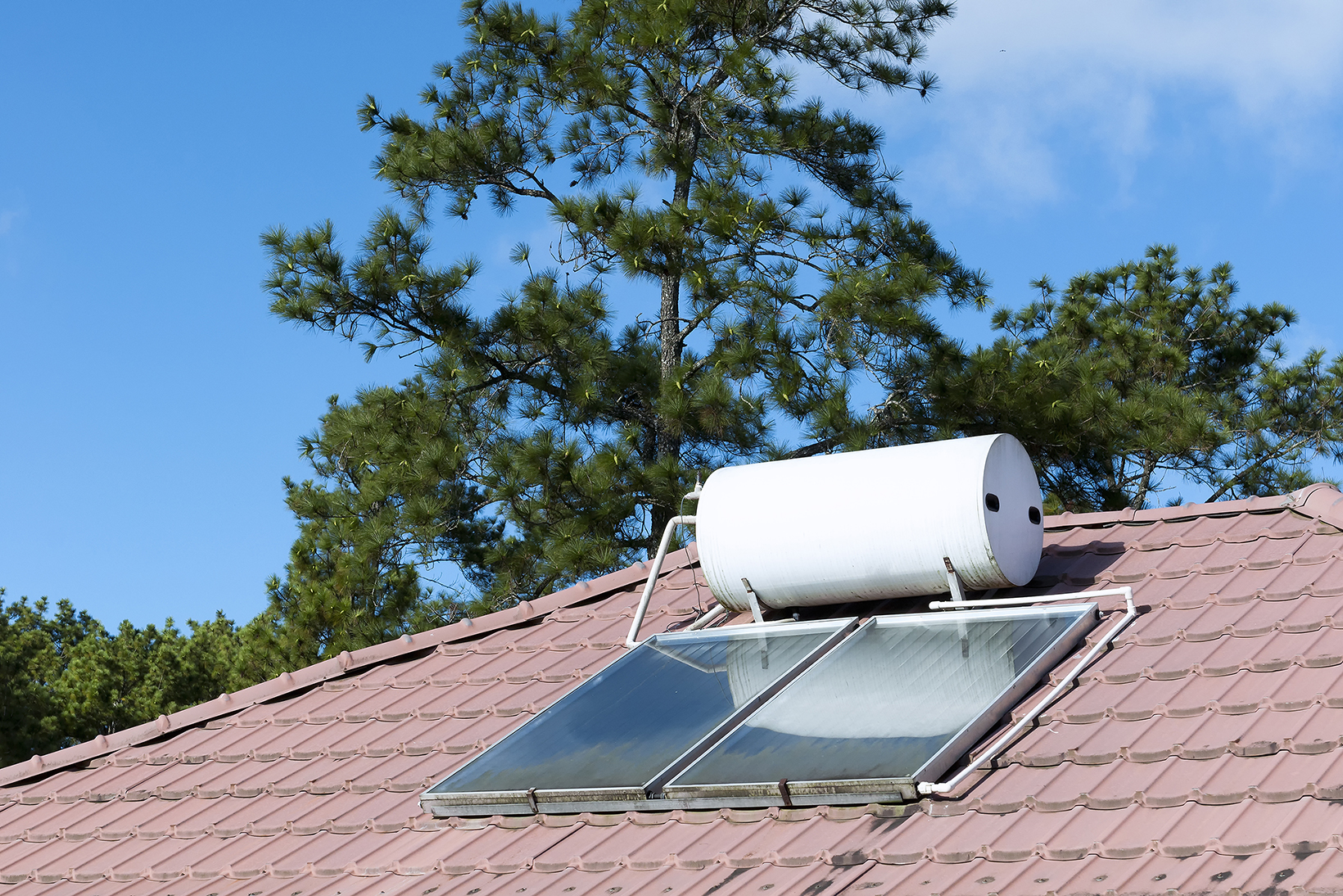

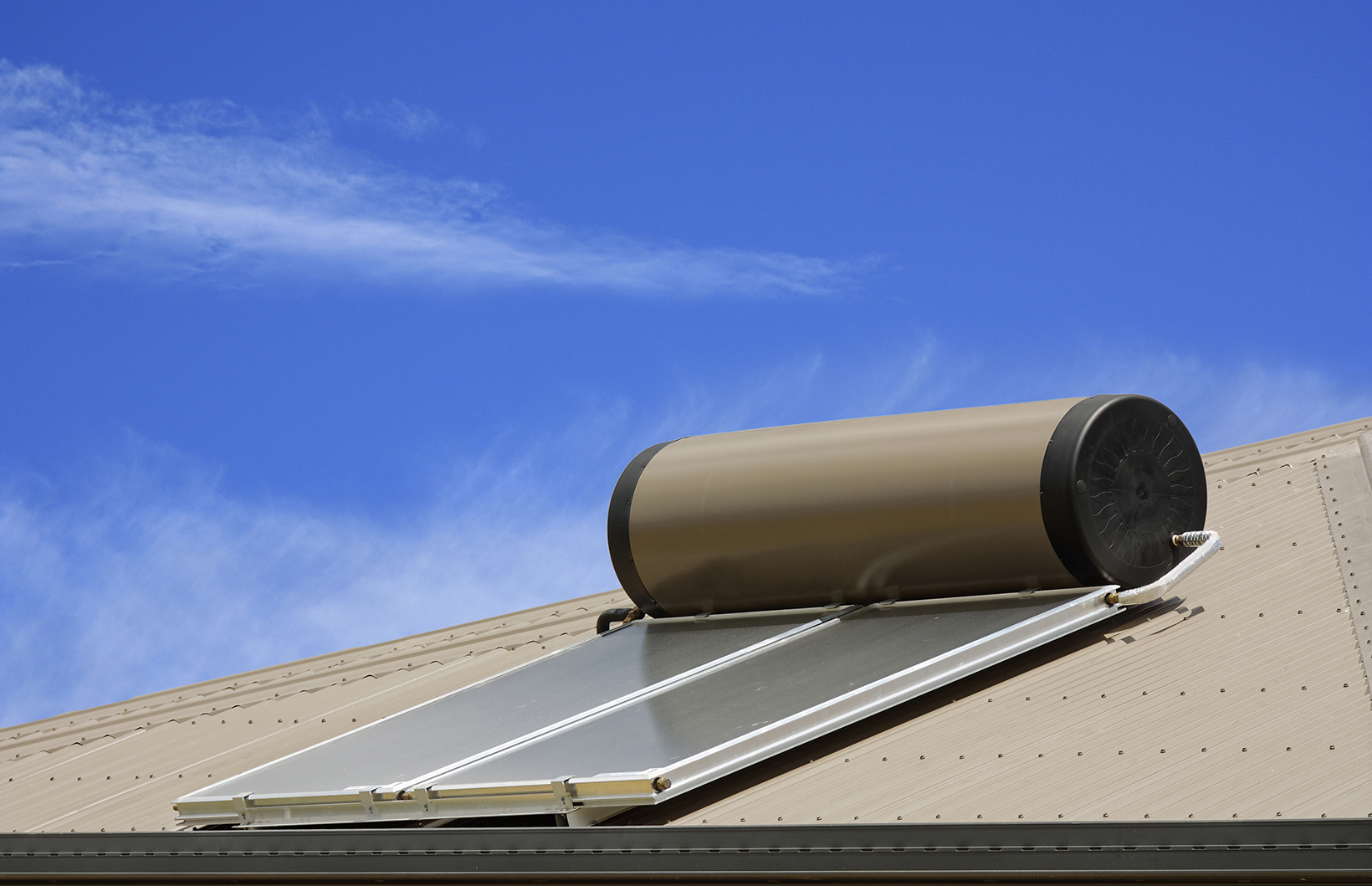

SolarTide Flat Plate Solar Water Heaters are suitable for both residential and commercial applications.
The design of the Flat Plate Solar Water Heater is a culmination of nearly 15 years of feedback from installers and solar professionals all over the world and aims to meet their requirements with the following key features:
●Easy and Safety Packing design (Tank, frame and Flat plate collector in separate packages)
● Top Color Steel for Outer tank, Stainless Steel 304-2B for inner tank
● Galvanized Steel with oil printing mounting frames
● Extremely reliable Tank design, less brazing points
● High efficiency Germany Tinox energy AL solar absorber
● Ultra lightweight top quality rock wool insulation
● UV stabilized components
● High tensile grade 6063-T5 black anodized aluminum body
● High transparency solar glass
| Model | STFN-150 | STFN-300 | STFP-150 | STFP-300 |
| Collector Lenghth | 2000mm | 2000mm | 2000mm | 2000mm |
| Collector Height | 1000mm | 1000mm | 1000mm | 1000mm |
| Collector Width | 80mm | 80mm | 80mm | 80mm |
| Tank Length | 1100mm | 2150mm | 1100mm | 2150mm |
| Collector Quantity | 1 PC | 2 PCS | 1 PC | 2 PCS |
| Peak Output * | 1706W / 5820 Btuh | 3412W / 11640 Btuh | 1706W / 5820 Btuh | 3412W / 11640 Btuh |
| Gross Area | 2.00 m2 | 4.00 m2 | 2.00 m2 | 4.00 m2 |
| System Capacity | 150 L | 300 L | 150 L | 300 L |
| System Type | Non-pressure | Non-pressure | Pressurized | Pressuirzed |
*Calculated at midday (trans IAM = 1), G=1000W/m2, ∆T (tm-ta)=0, Location is in Jinxing, China

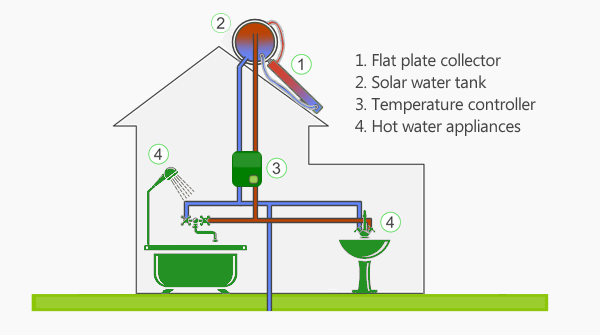

How It Works
Construction
The Flat Plate Solar Water Heater is comprised of three main parts:

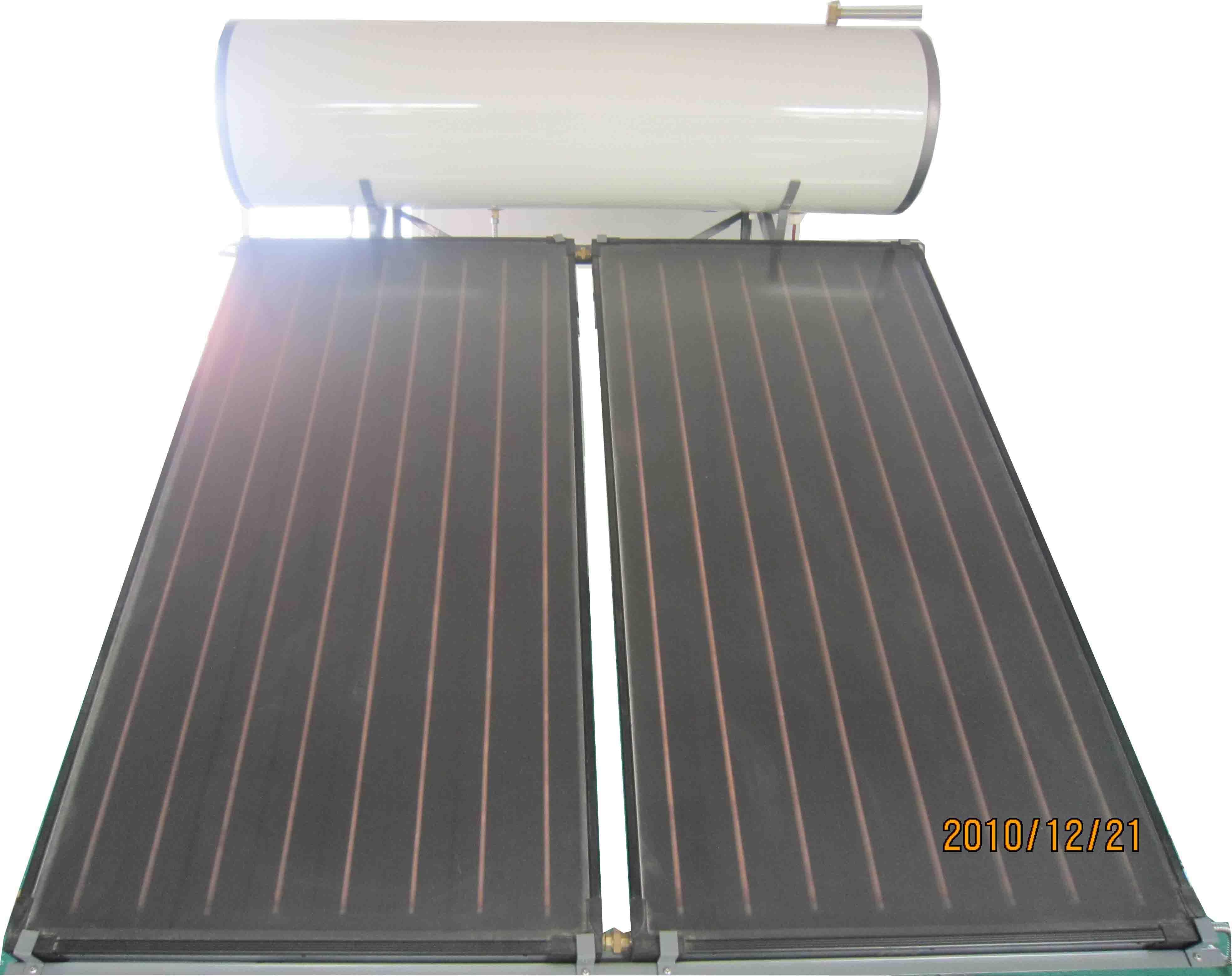

Pressurized Flat Plate Solar Collector
Absorbs solar energy and converts it to usable heat. The header and riser pipes are brazed together to form a harp shaped heat exchanger that the solar system heat transfer fluid circulates through.
Water Tank
It stock the hot water from the Flat plate collector, and keep the heat.
Mounting Frame
Strong and easy to install with various options to match different mounting methods.
Snow & Wind Loading
SolarTide Solar Water Heaters are rated for up to 298kg/m2 / 62lbs/ft2 snow loading. The roof and attachment points must also be suitably rated.
Mounting frames are available for the SolarTide Solar Water Heater that can withstand category C cyclonic winds (250km/h / 159mph). For such conditions there are specific requirements that must be observed.
| Tank Capacity (Liters ) | 150L, 300L | |||||
| Recomended People | 3 to 4, 6 to 7 | |||||
| Flat plate solar collector | Dimension | 2000*1000*80mm | ||||
| Gross Area | 2.0 m2 | |||||
| Numbers | 1pc, 2pcs | |||||
| Specification | ||||||
| Jacketed Tank | Inner tank | Ø426mm , δ2.0mm Galvanized Steel with Enamel coated | ||||
| Outer tank | Ø520 mm , δ 0.4mm white color steel | |||||
| Jacket | 10L | |||||
| insulation | δ47 mm high-density polyurethane foamed, 72 hours heat preservation | |||||
| working Pressure | 7 Bar for whole system | |||||
| Flat plate solar collector | Absorber | Coating | black chrome | |||
| Absorptivity | >94% | |||||
| Material | Aluminum -copper complex | |||||
| Welding | Advanced the whole plate laser/ultrasonic welding process | |||||
| Header Pipe | Ф22 * δ 1 Copper TP2, 2pcs | |||||
| Riser Pipe | Ф10 * δ 1 Copper TP2, 7pcs | |||||
| Construction | Glass | Low-iron tempered textured glass ,4.0mm thickness | ||||
| Insulation | 50mm thickness, Fiberglass | |||||
| Frame | 1.5mm thickness ,Aluminium alloy | |||||
| Back plate | δ0.3mm ,Aluminum alloy | |||||
| Mounting Bracket | Material | 1.5-2.0mm thickness ,Galvanized steel | ||||
| Angle | 20 degree for Sloop roof | |||||
| Screw for bracket | 8mm diameter Stainless steel | |||||
| Accessories | T/P valve | AKE brand, 90degree, keep system safe and stable | ||||
| Mg Bar | 3/4 inch 30cm | |||||
| Electrical heater | 1.25 inch, 1500W, screw model, stainless steel material | |||||
| Circulation pipe | Aluminum foil pre-insulated SUS316L stainless steel corrugated pipes | |||||
| Controller | SR609C 1.5kw | Show time, temperture, controlling heat elecment | ||||
