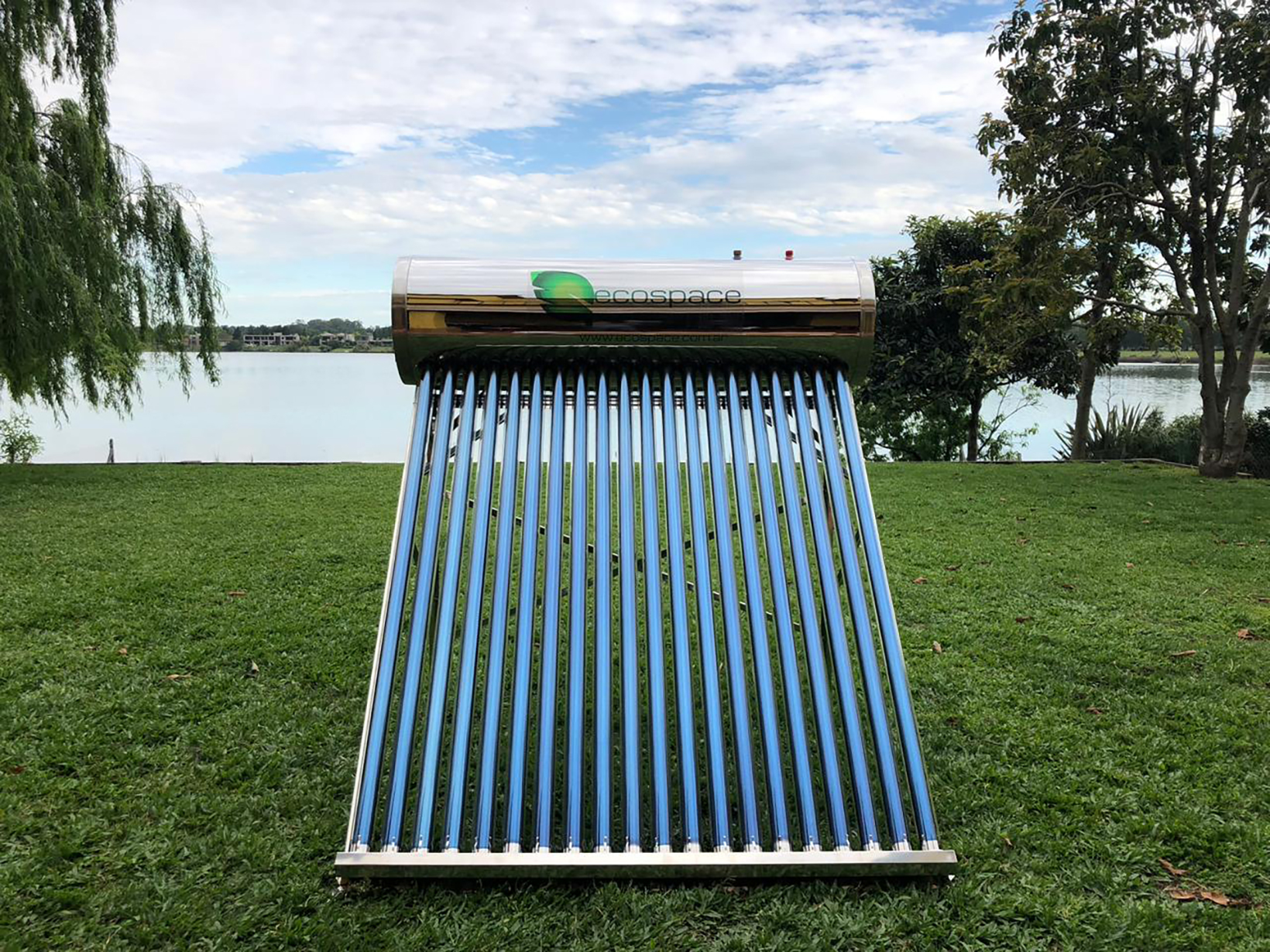

Non-Pressure Solar Water Heater

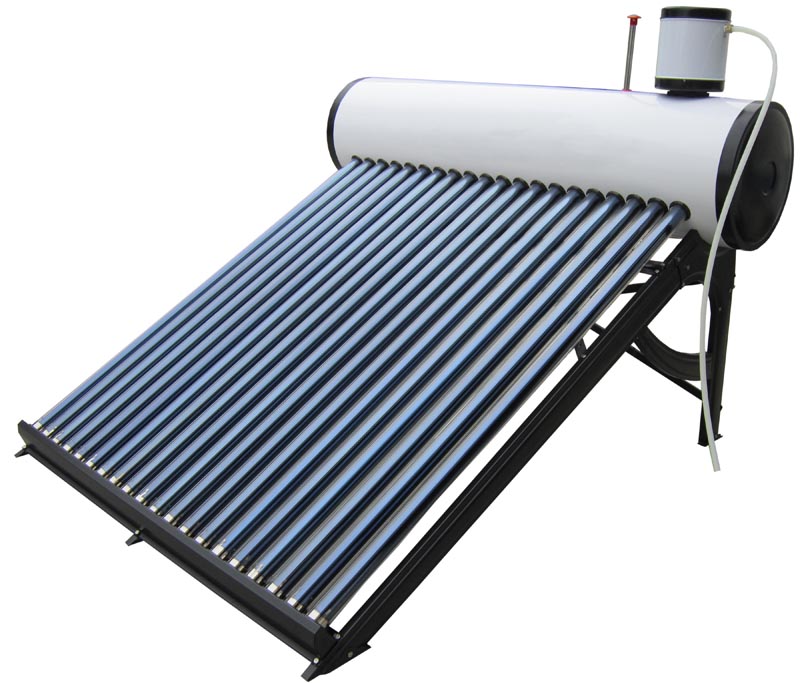

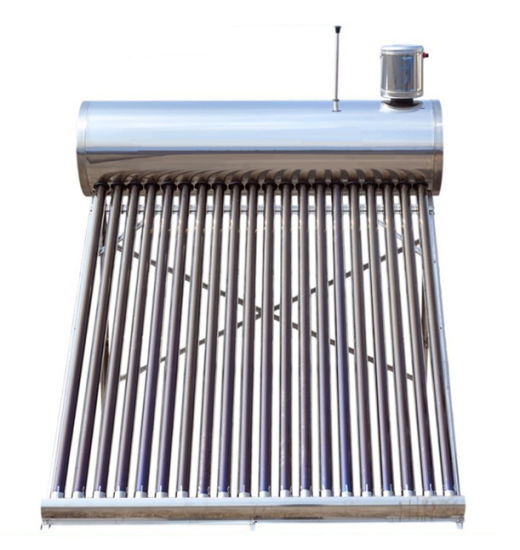

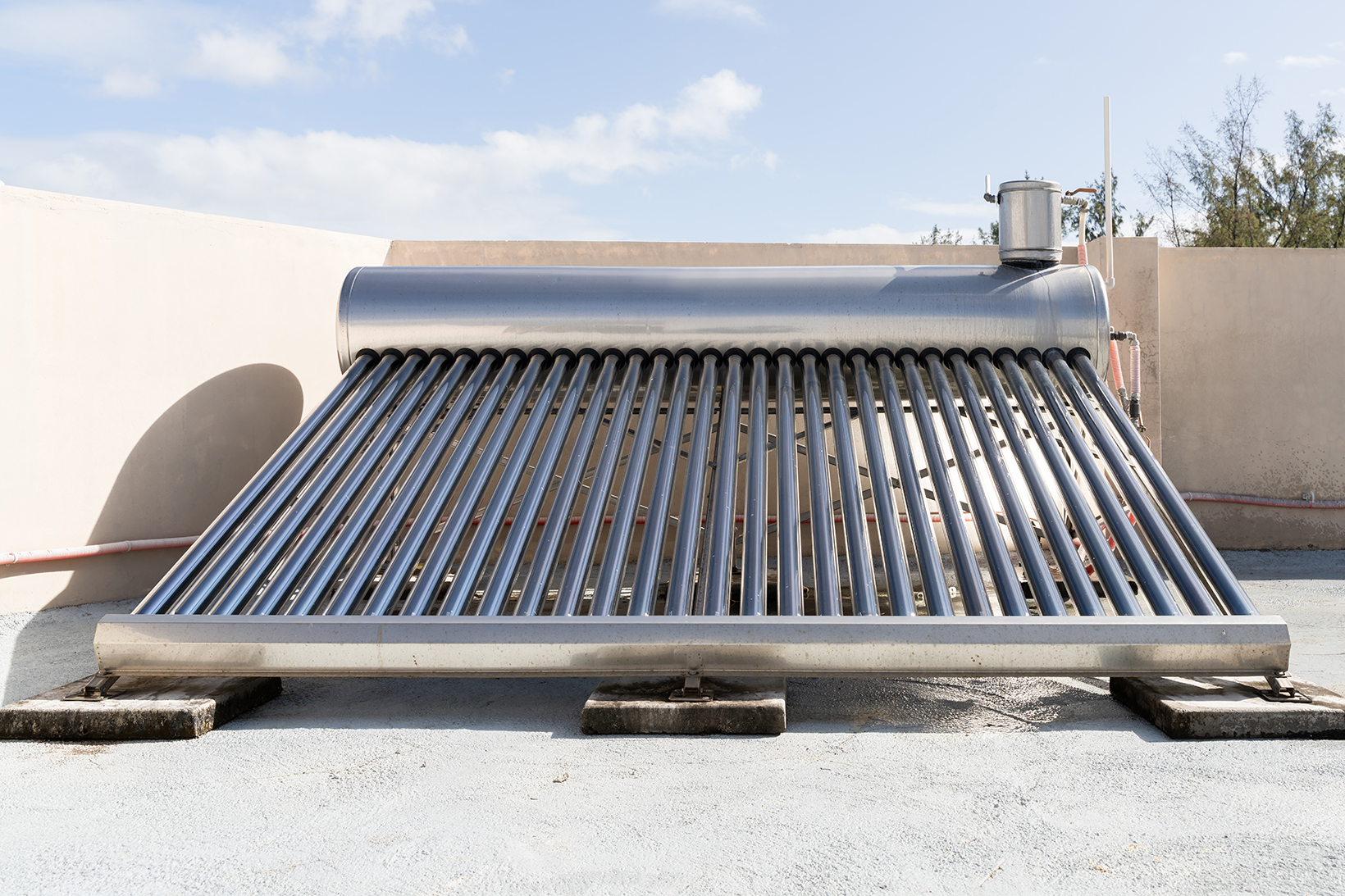

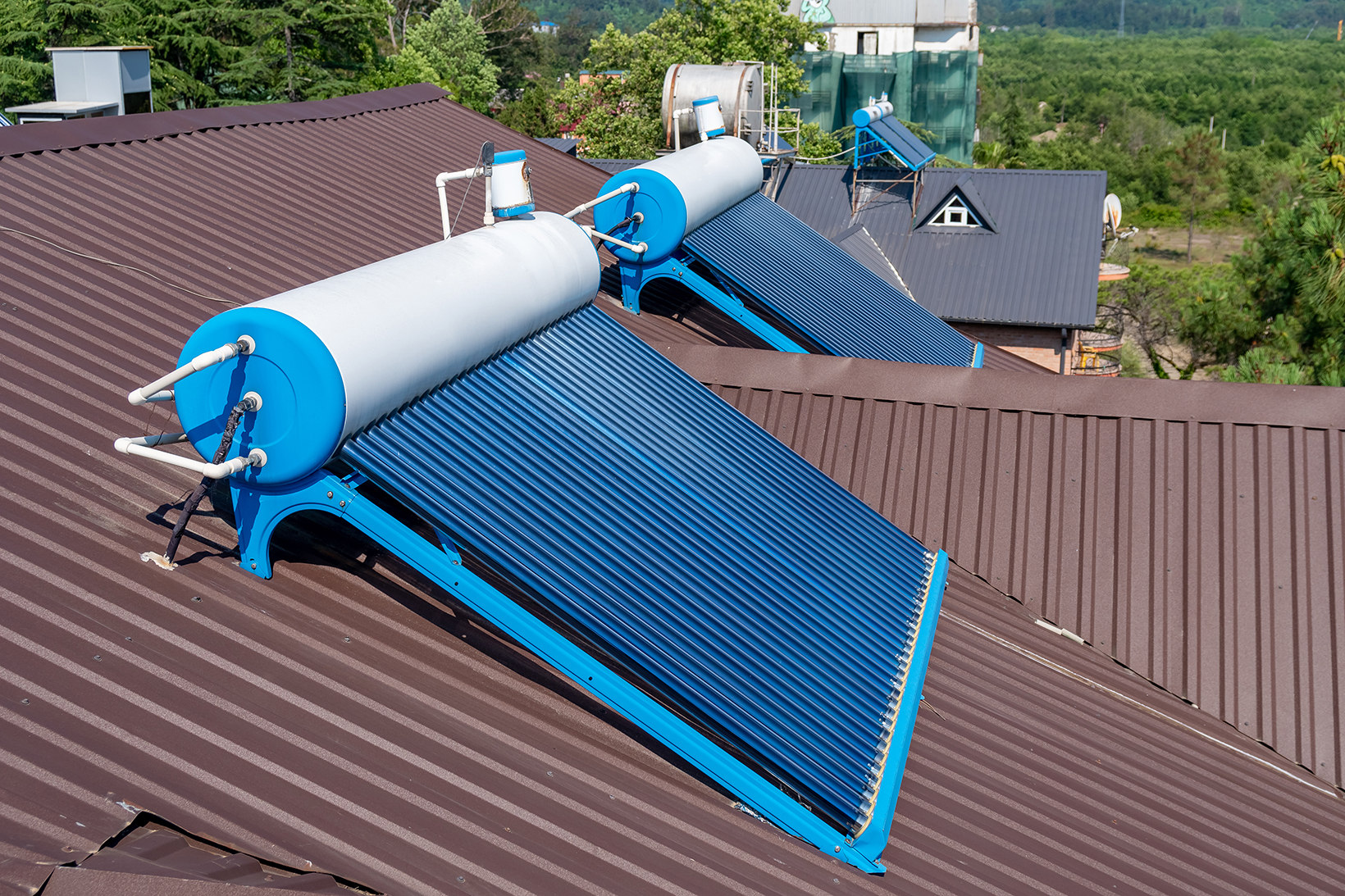

SolarTide STNP series of Non-Pressure Solar Water Heater are suitable for both residential and commercial applications.

FEATURES

The design of the STNP solar collector is a culmination of nearly 15 years of feedback from installers and solar professionals all over the world and aims to meet their requirements with the following key features:


● Easy and Safety Packing design

● Stainless Steel 304-2B or 316L for inner manifold

● Zinc-Coated Galvanized Steel frames

● Extremely reliable inner manifold design, less soldering points

● All glass tubes have three absorb coatings with high heat efficiency

● Extreme High density Polyurethane Foam from Europe for insulation layer

● UV stabilized components

● High wind load strength and High snow load strength

● Easy plug-in installation


PRODUCT RANGE

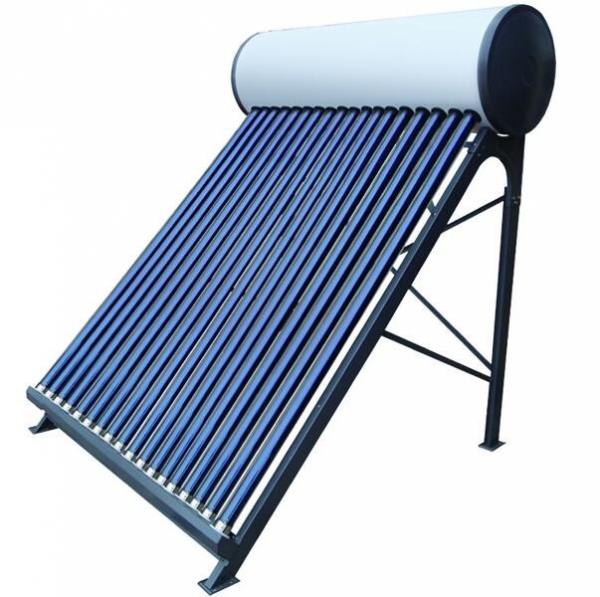

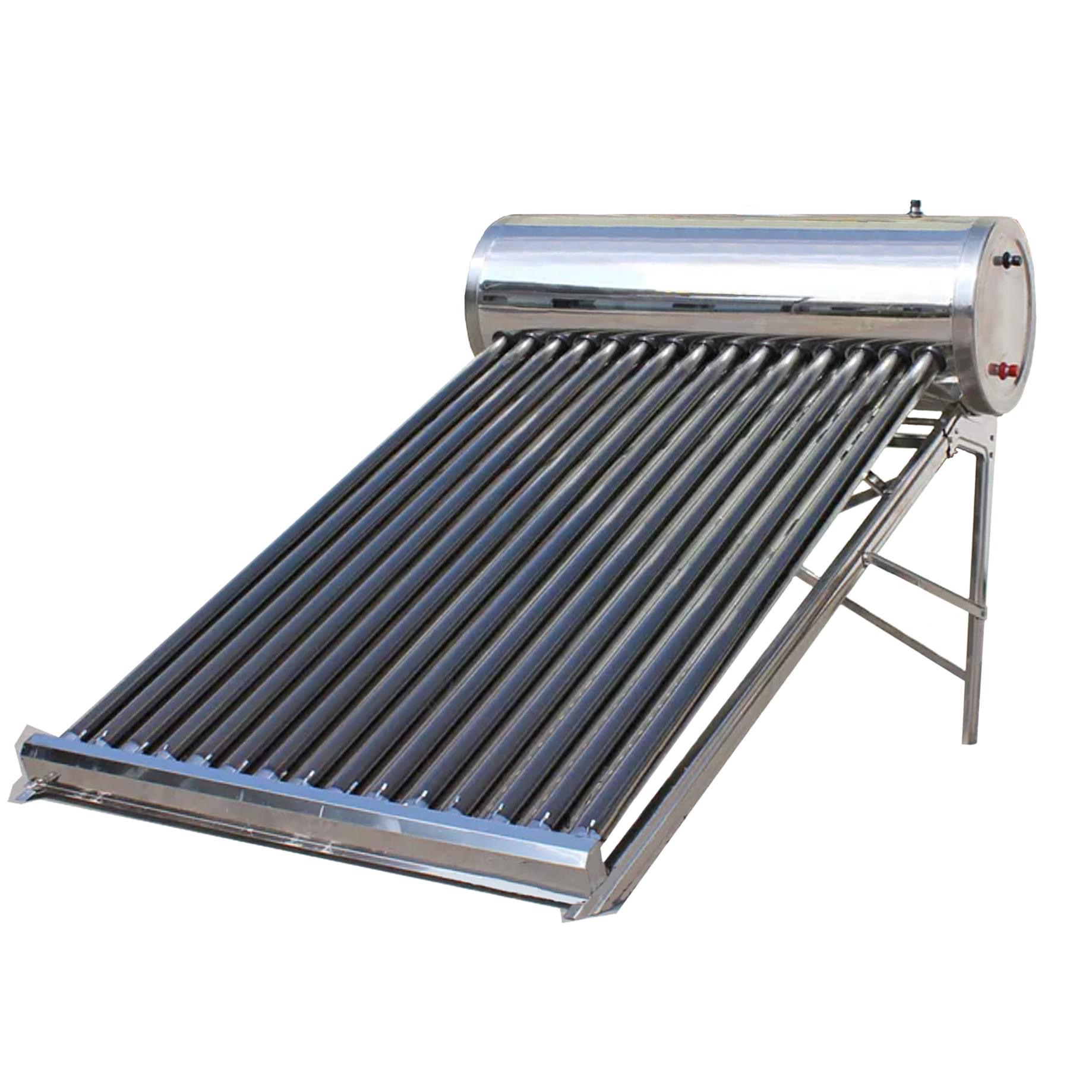

STNP system are available from 100-360L sizes and have a number of options depending on the local market requirements.

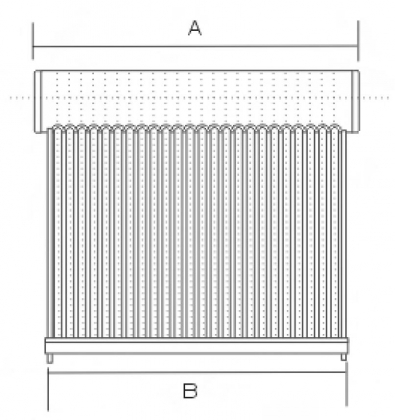

ModelSTNP-15STNP-20STNP-25STNP-30

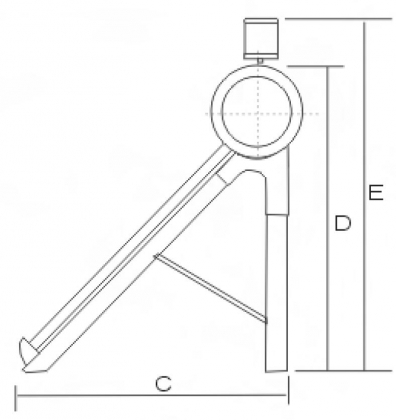

Size A1350mm 1585mm 2158mm 2510mm
Size B1410mm1532mm1963mm2310mm
Size C1550mm1550mm1550mm1550mm
Size D1600mm1600mm1600mm1600mm

Size E

(If with the assistant tank)

2010mm2010mm2010mm2010mm
Peak Output *1009W 1335W 1667W 2019W
Gross Area2.40 m23.17 m23.93 m24.70 m2
System Capacity150 L200 L250 L300 L
Tube Quantity1520 2530


*Calculated at midday (trans IAM = 1), G=1000W/m2, ∆T (tm-ta)=0, Location is in Jinxing, China




How It Works


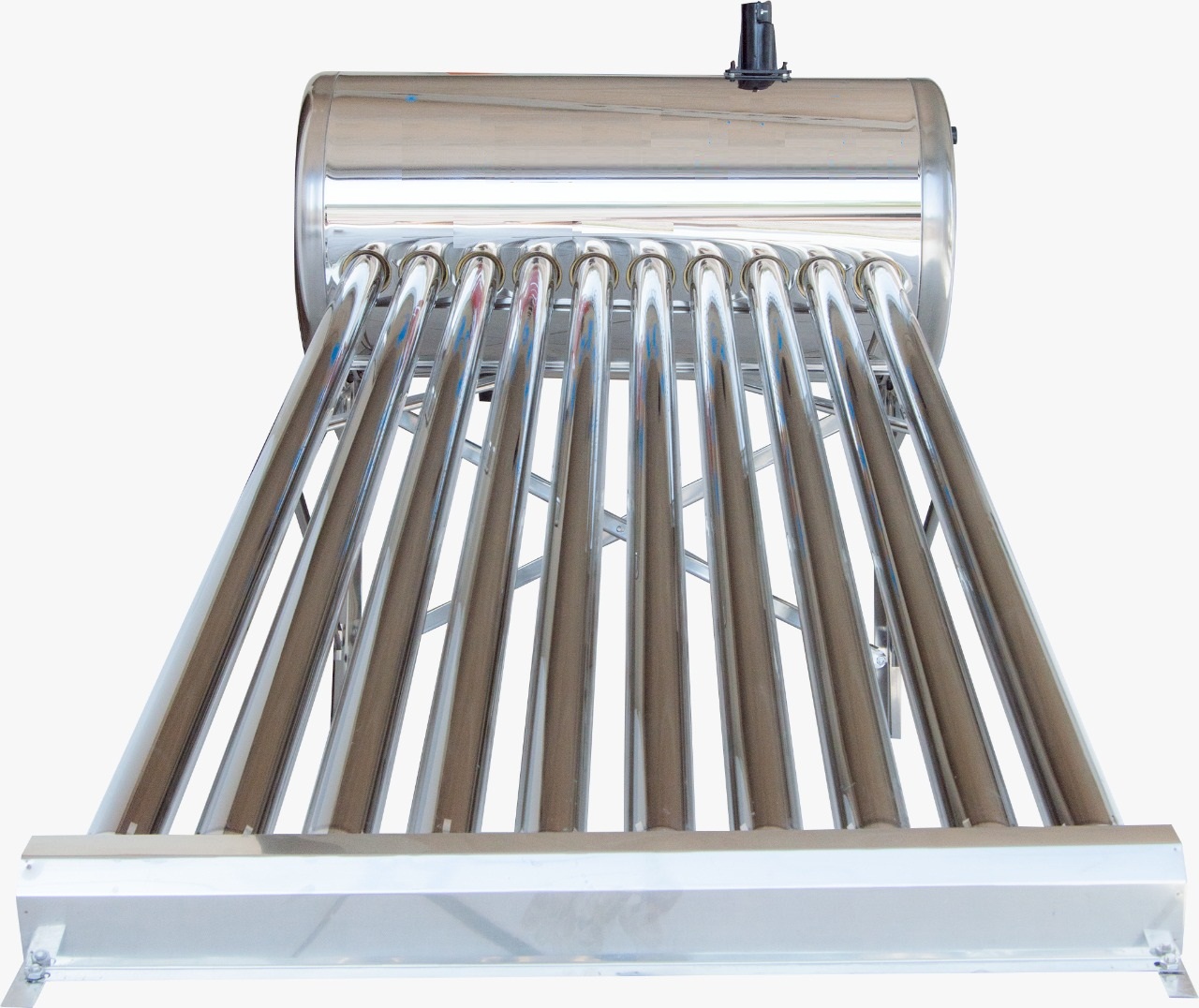

Construction

The SolarTide Solar Water Heater  is comprised of four main parts:


Evacuated Tube

Absorbs solar energy and converts it to usable heat. Vacuum between the two glass layers insulates against heat loss.


Water Tanks

It stock the hot water from the glass tubes, and keep the heat.


Mounting Frame

Strong and easy to install with various options to match different mounting methods.


Assistant Tank (Optional Use)

It can load the cold water into the main tank automatically when water level is down.

Without the assistant tank, customers can install the solar controller to realize the same function.


Operation

Step 1:  The absorber coating on the inner glass tube absorbs sunlight and converts it into heat.


Step 2:  The hot water inside the tubes floats up to the main tank, cold water inside the tank will go down to the glass tubes, and become a nature circulation.


Step 3:  The cold water will be loaded into main tank automatically when you use the hot water, if with the assistant tank or solar controller.

aHR0cHM6Ly93d3cuc29sYXJtYXN0ZXJ0ZWNoLmNvbS9xZnktY29udGVudC91cGxvYWRzLzIwMTgvMDEvNzEzZGIyZmM5YWRhNWY0NjliYTkxZjcwNDc5M2FjNTQtNjAweDgwNC5qcGc_p_p100_p_3D.jpg

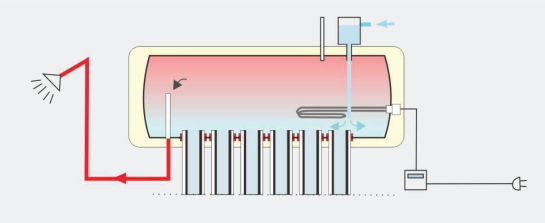

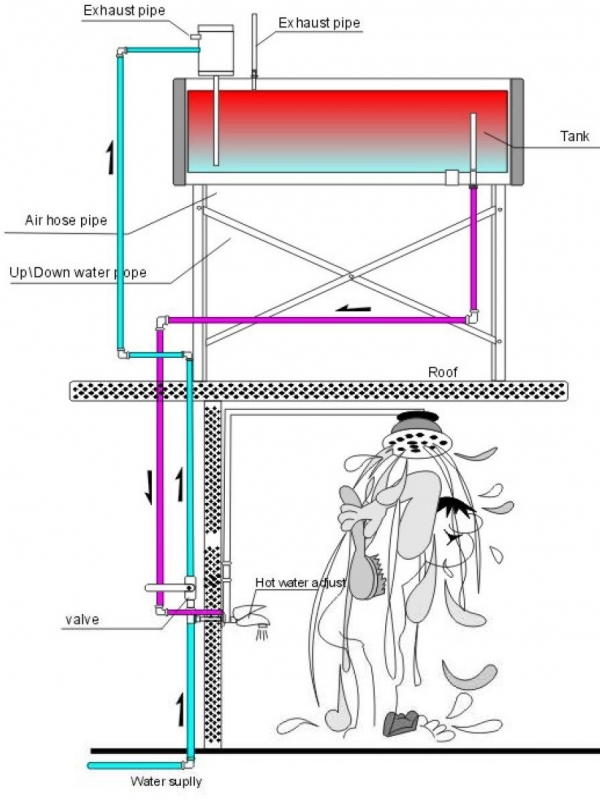

Tank Connection Application

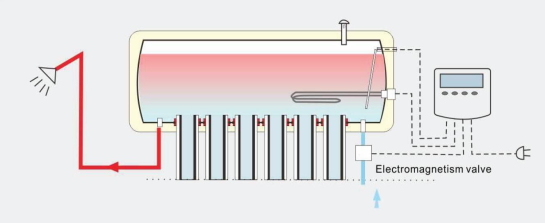

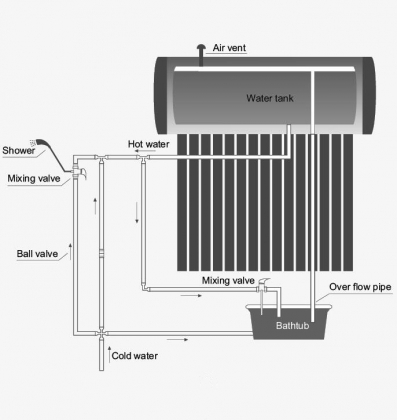

Case 1: Connect with Solar Controller, cold water loading automatically, sensor the water temp. and water lever,  control the electrical heater.


Case 2: Install the additional assistant tank, cold water loading automatically.

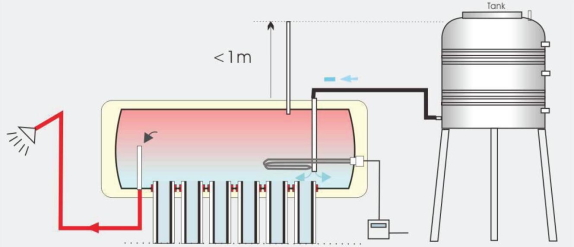

Case 3: Connect with the big water storage tank, cold water loading automatically. Widely used in Latin American countries, especially in Mexico.

Main Component
Specifications
ComponentMaterials & Specifications
Evacuated TubesMaterial: Borosilicate 3.3
Tube style: Twin wall all glass
Dimensions: ∅58mm outer tube; ∅47mm inner tube;  1.8m length, 1.65mm outer tube wall thickness
Solar Absorber CoatingMaterial: Graded ALN/SS-CU/ALN,three target coating
Absorptance: >92% (AM1.5);
Emittance: <8% (80 C)
Vacuum: P<5x10-5 Pa;
Heat loss: <0.8W/(m2 C)
Water Tank

Outer Tank: Φ460mm/Φ470mm/Φ480mm/Φ500mm, Stainless Steel 304-BA or 201-BA or Color Steel , 0.4mm thickness

Inner Tank: Φ360mm/Φ370mm/Φ380mm, Stainless Steel 304-2B or 316L, 0.31mm to 0.5mm thickness

Insulation Layer: 50 to 70mm thickness, High density Polyurethane Foam from Germany

Operating temperature: 55-95 C

Lowest Startup temperature: 0 C

Rubber ComponentsMaterial: HTV Silicone Rubber (UV stabilized)
Mounting FrameMaterial: Stainless Steel 304-BA or 201-BA or Aluminum alloy or Galvanised Steel
