SolarTide

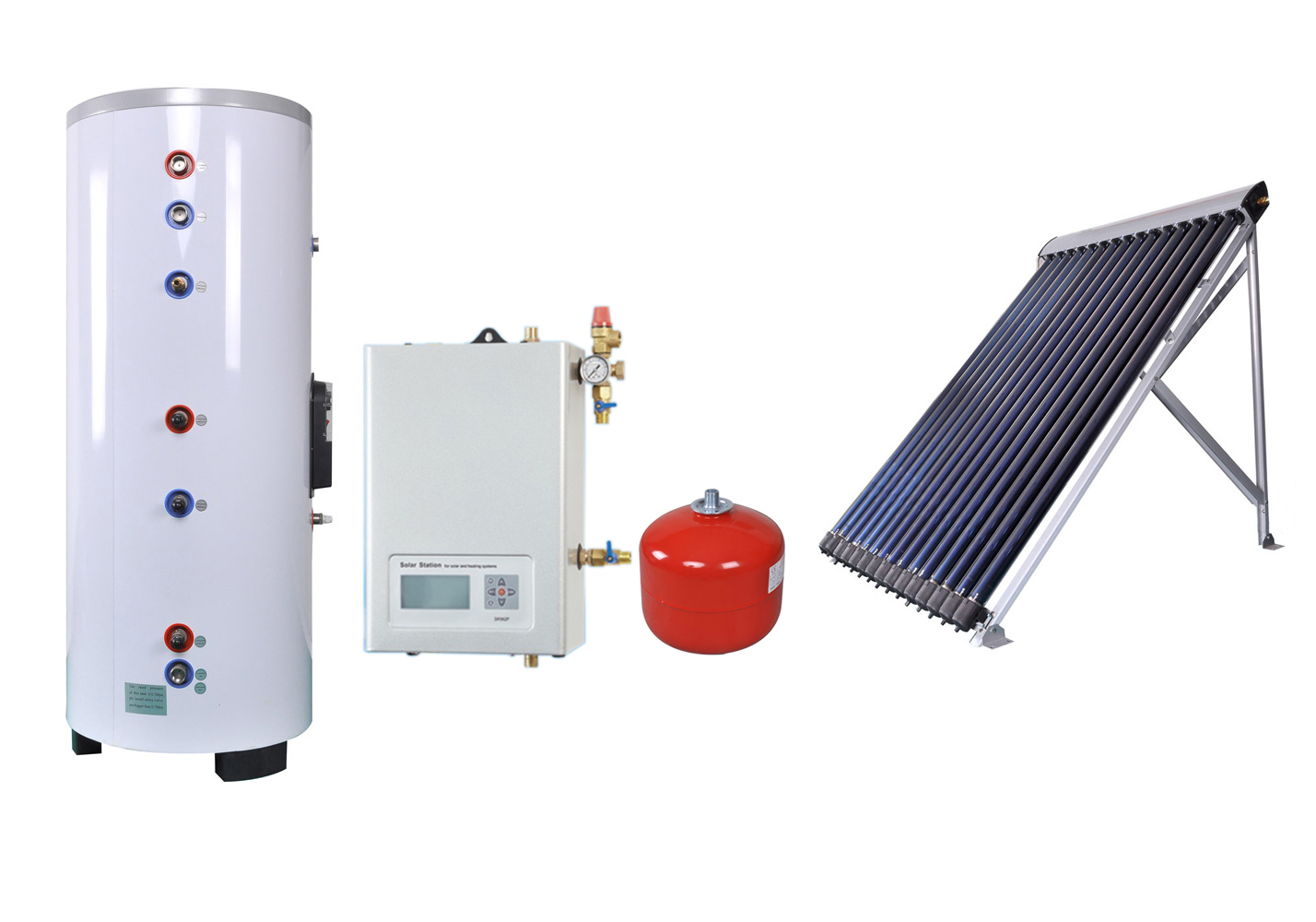

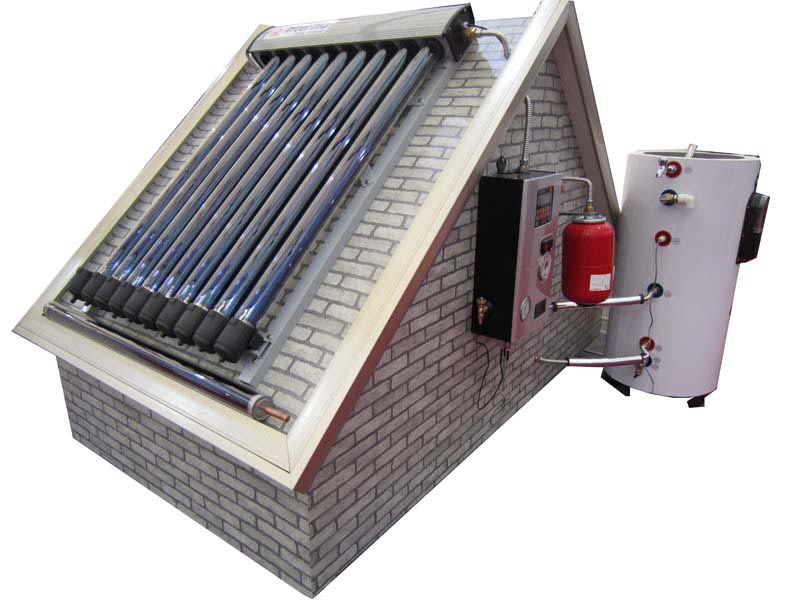

Split Pressurized Solar Water Heater

Split Pressurized Solar Water Heater

SolarTide STSP series of Split Pressurized Solar Water Heater are suitable for both residential and commercial applications.

FEATURES

The design of the STSP Split Pressurized Solar Water Heater is a culmination of nearly 15 years of feedback from installers and solar professionals all over the world and aims to meet their requirements with the following key features:


● Solar collector and Water tank separated design

● Minimal impact on the aesthetics of your roofline

● No need to reinforce the roof structure

● Water tank capacity from 100-1000 litre

● Intelligent control and automatic operation

● Extreme cold resilience as low as to -35 C degrees

● Gas or electrical boost options are available

● High wind load strength and High snow load strength

● Multifunction: Bathing, Washing, Floor heating

PRODUCT RANGE

STSP system are available from 100-1000L sizes and have a number of options depending on the local market requirements.



ModelCollector QuantityTank CapacityTank CoilsWorking StationExpansion Tank                Available Persons*
STSP-1010 tubes * 1PC100 L0 or 1 or 2SR961S/SR21/SR115 L1 ~ 2
STSP-1515 tubes * 1PC150 L0 or 1 or 2SR961S/SR21/SR115 L2 ~ 3
STSP-2020 tubes * 1PC200 L0 or 1 or 2SR961S/SR21/SR115 L3 ~ 4
STSP-2525 tubes * 1PC250 L0 or 1 or 2SR961S/SR21/SR118 L4 ~ 5
STSP-30
30 tubes * 1PC
300 L0 or 1 or 2SR961S/SR21/SR118 L5 ~ 6
STSP-4020 tubes * 2PCS400 L0 or 1 or 2SR961S/SR21/SR1112 L6 ~ 7
STSP-5025 tubes * 2PCS500 L0 or 1 or 2SR961S/SR21/SR1118 L7 ~ 8
STSP-10025 tubes * 4PCS1000 L0 or 1 or 2SR961S/SR21/SR1125 L12 ~15



* The no. of available person is also depend on your local weather condition and if you also use for washing and floor heating.

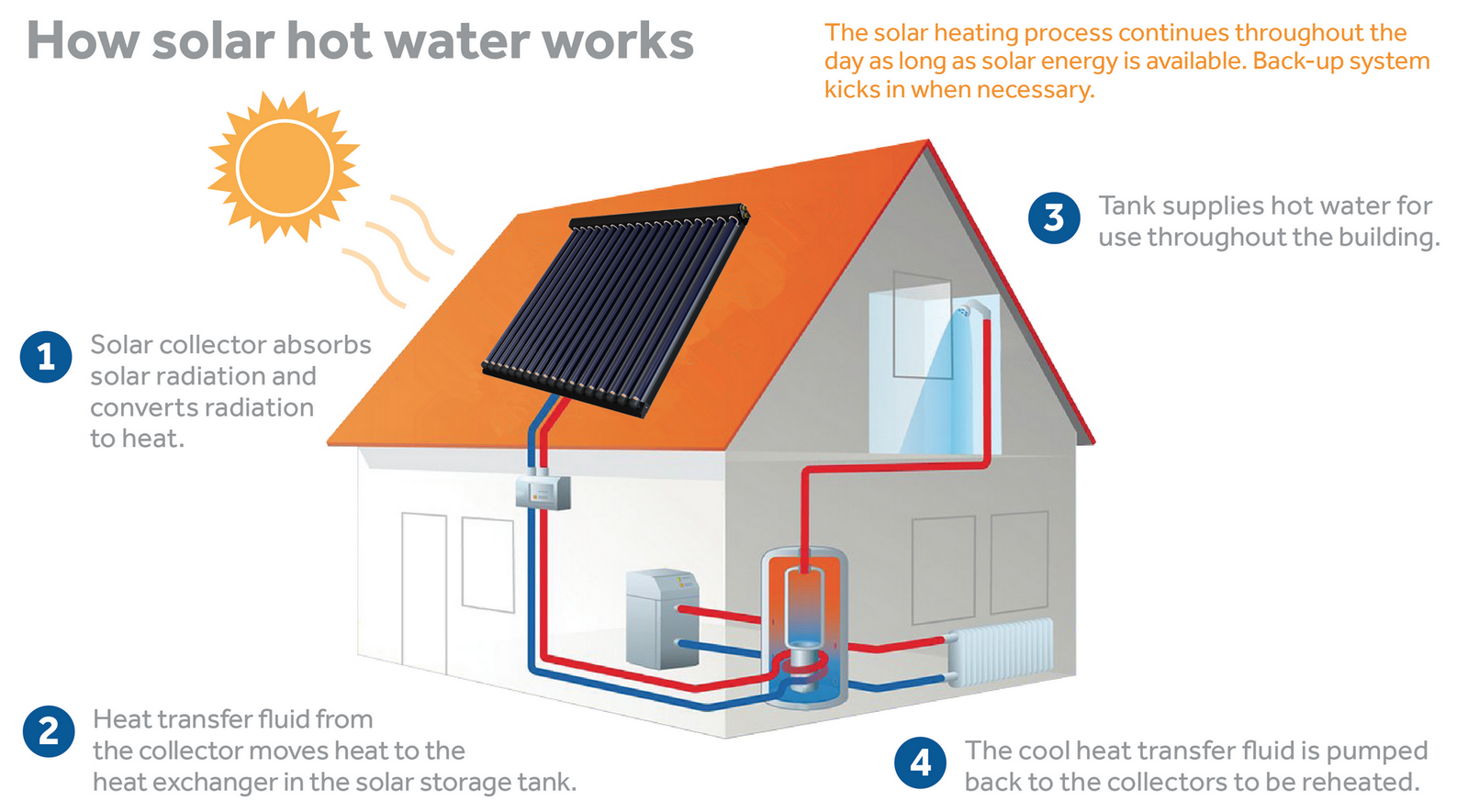

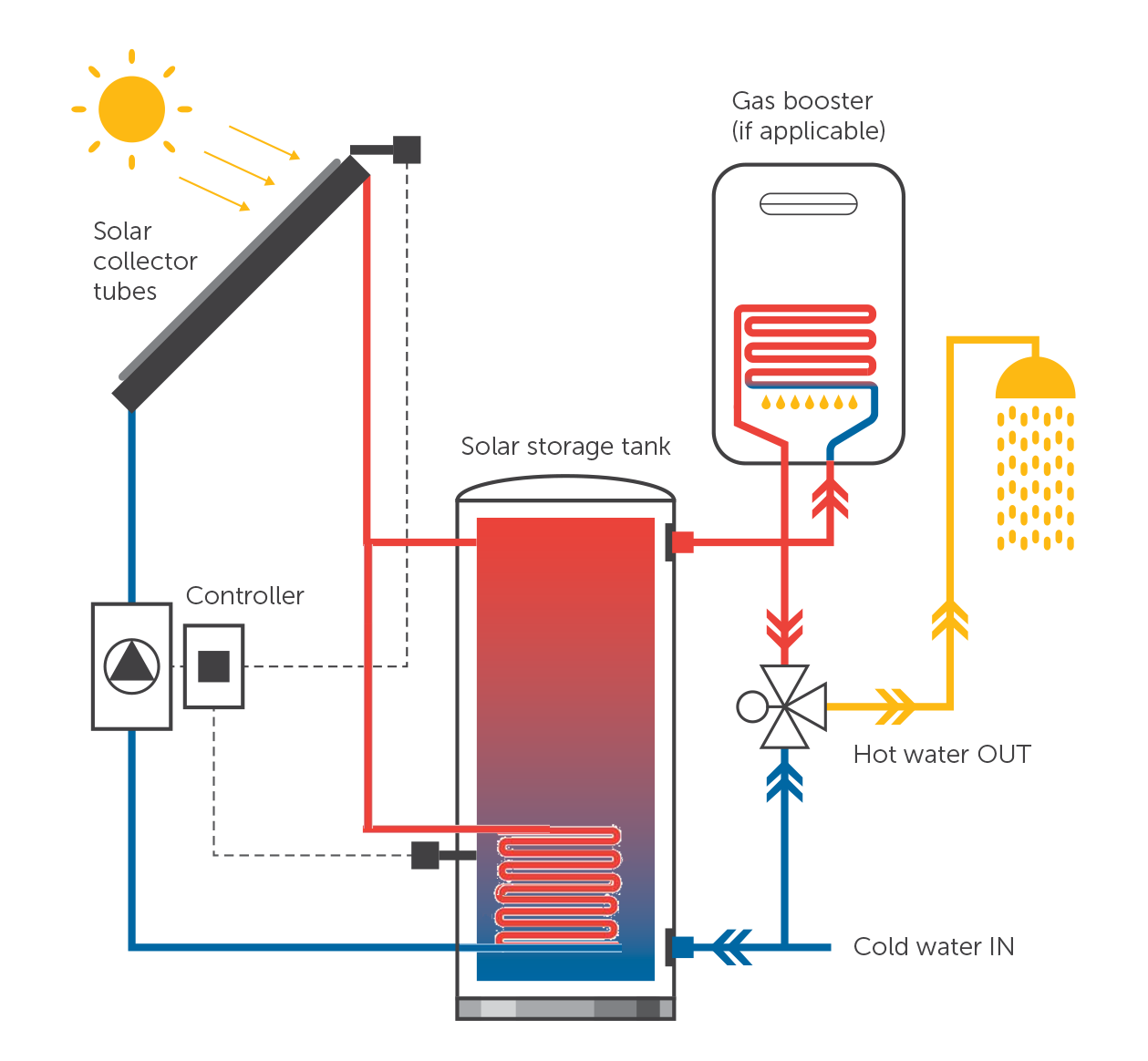

How It Works



Step 1:

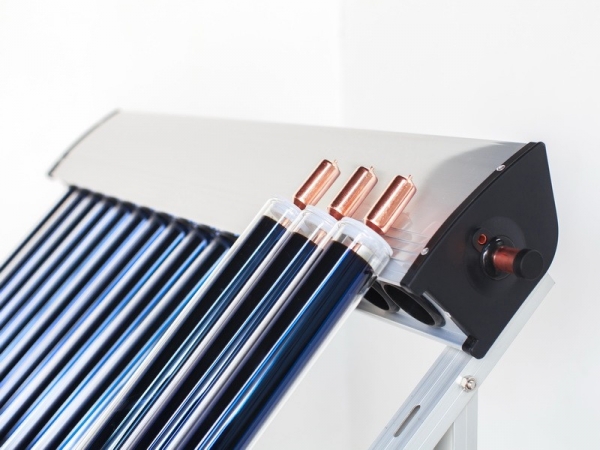

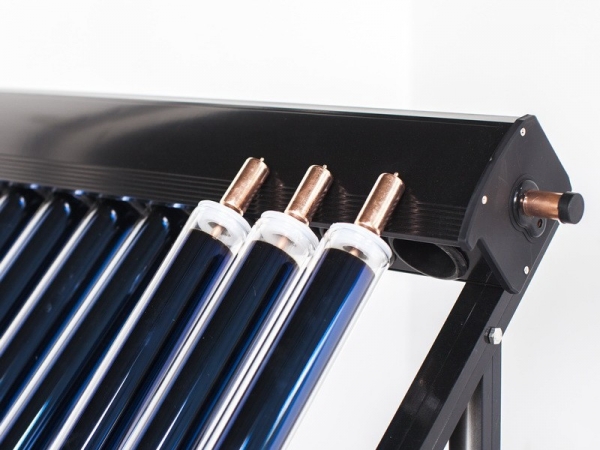

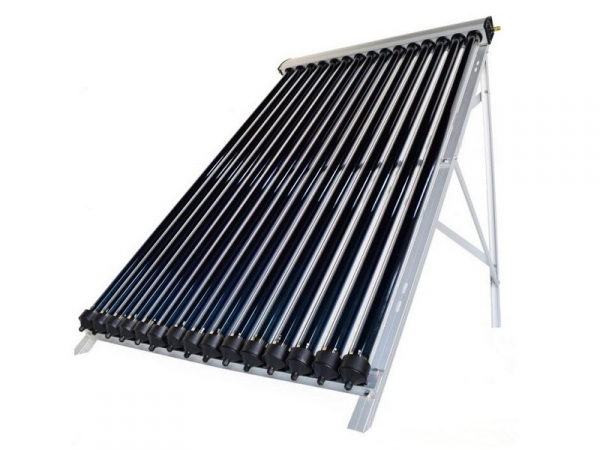

Solar Collector absorbs solar radiation and converts radiation to heat.



Step 2:

Heat transfer fliud from the collector moves heat to the heat exchanger in the solar water tank.



Step 3:

Tank supplies hot water for use throughout the building.



Step 4:

The cool water transfer fluid is pumped back to the collectors to be reheated.

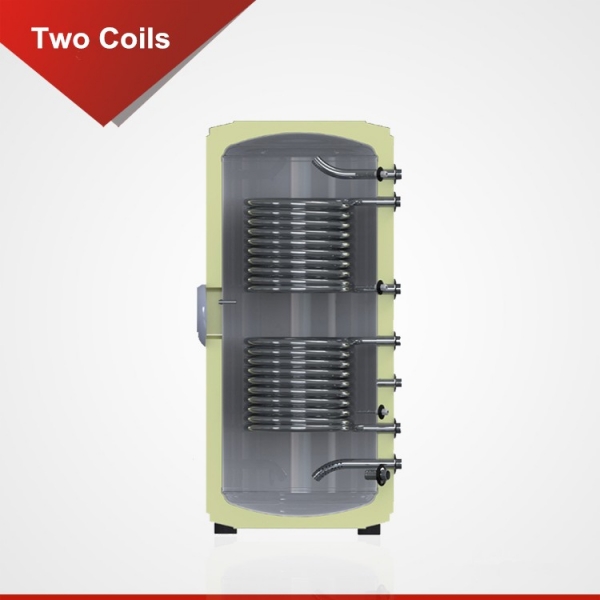

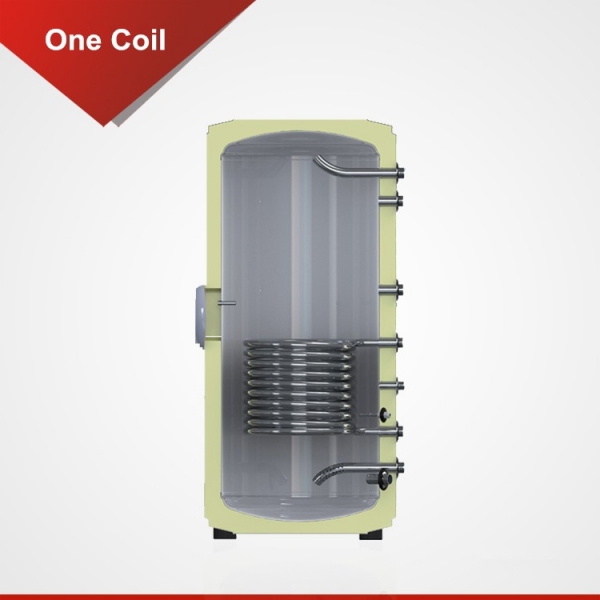

Tank Structure

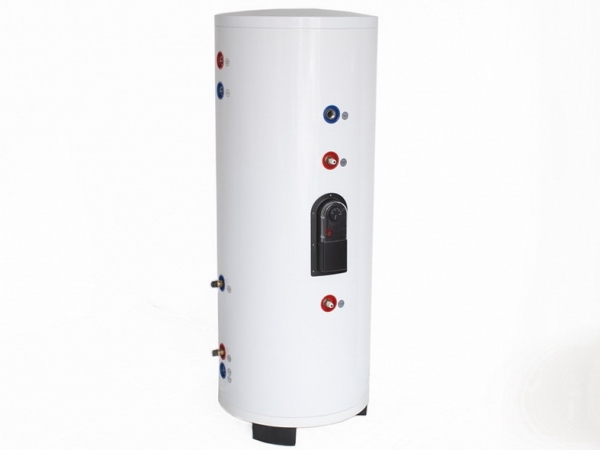

Water Tank
Specifications
                Tank Capacity                Insulation LayerOuter Tank Inner Tank Tank Size Packing Size
                100 L

High Density Polyurethane

Thickness: 50mm

Dia: Φ470mm

Color Steel Plate

Thickness: 0.5mm

Dia: Φ370mm

SUS304-2B

Thickness: 1.0mm

Φ470mm * 1060mm 1142*560*560mm
                150 L

High Density Polyurethane

Thickness: 50mm

Dia: Φ470mm

Color Steel Plate

Thickness: 0.5mm

Dia: Φ370mm

SUS304-2B

Thickness: 1.2mm

Φ470mm * 1450mm1520*560*560mm
                200 L

High Density Polyurethane

Thickness: 50mm

Dia: Φ550mm

Color Steel Plate

Thickness: 0.5mm

Dia: Φ450mm

SUS304-2B

Thickness: 1.5mm

Φ550mm * 1340mm1440*630*630mm
                250 L

High Density Polyurethane

Thickness: 50mm

Dia: Φ580mm

Color Steel Plate

Thickness: 0.5mm

Dia: Φ480mm

SUS304-2B

Thickness: 1.5mm

Φ580mm * 1450mm1540*675*675mm
                300 L

High Density Polyurethane

Thickness: 50mm

Dia: Φ580mm

Color Steel Plate

Thickness: 0.5mm

Dia: Φ480mm

SUS304-2B

Thickness: 1.5mm

Φ580mm * 1700mm1770*675*675mm
                400 L

High Density Polyurethane

Thickness: 60mm

Dia: Φ700mm

Color Steel Plate

Thickness: 0.5mm

Dia: Φ580mm

SUS304-2B

Thickness: 2.0mm

Φ700mm * 1560mm1660*770*770mm
                500 L

High Density Polyurethane

Thickness: 60mm

Dia: Φ700mm

Color Steel Plate

Thickness: 0.5mm

Dia: Φ580mm

SUS304-2B

Thickness: 2.0mm

Φ700mm * 1890mm1970*770*770mm
                1000 L

High Density Polyurethane

Thickness: 100mm

Dia: Φ1000mm

Color Steel Plate

Thickness: 0.5mm

Dia: Φ800mm

SUS304-2B

Thickness: 2.5mm

Φ1000mm * 2100mm2300*1100*1100mm
