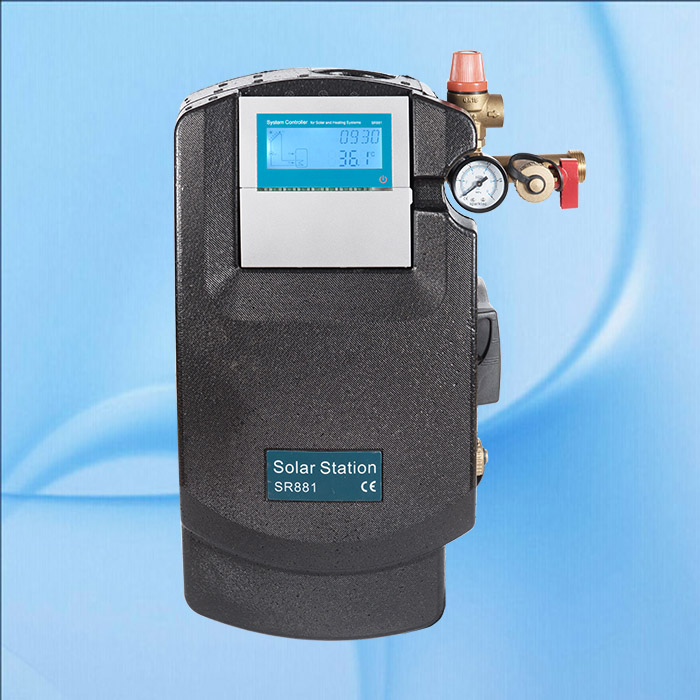

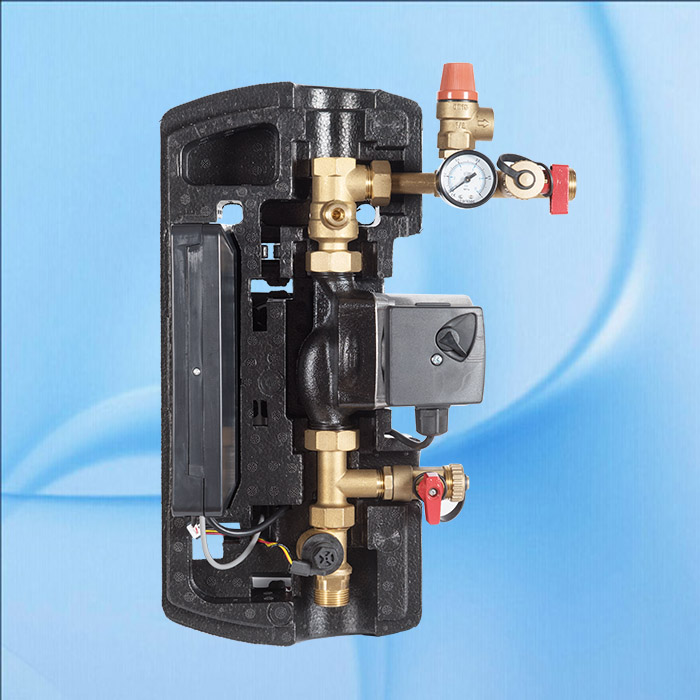

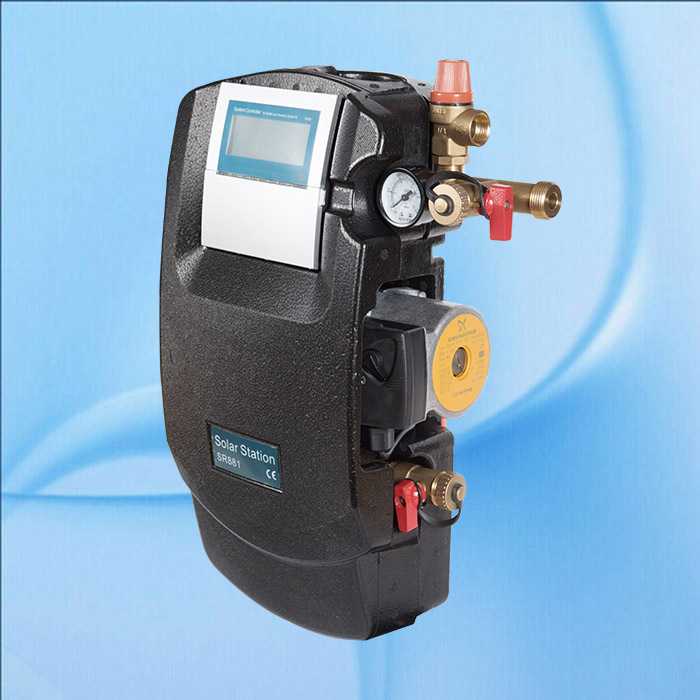

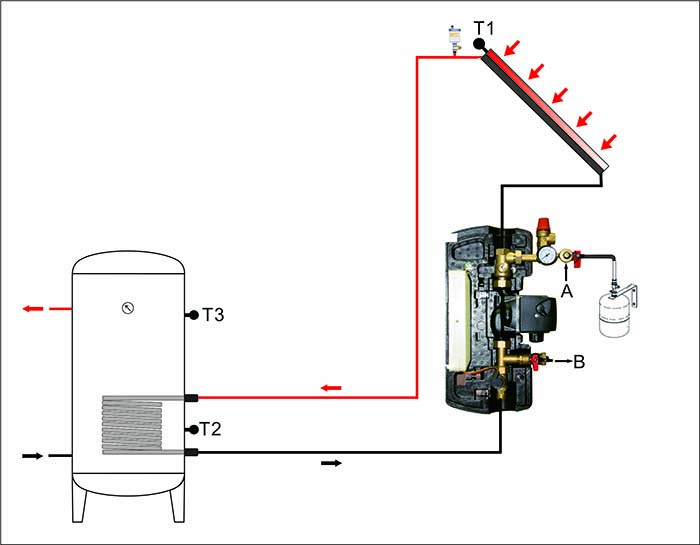

APPLICATIONS CAPACITY Max.number of collectors:1 Max.number of storage tanks:1 Max.number of relays:2 Max.number of sensors:3 Max.number of application system:1

TECHNICAL  DATA

Diamension:400mm*200mm*145mm

Installation:  wall  mountingalso  suitable  for  mounting  into  patch  panels

Power  supply:200V-240V  AC  or  100V-130V  AC50-60Hz.  .

Power  consumption:  < 3W

Accuracy of temperature measuring: ± 2oC

Range of collector temperature measuring: -10 ~200oC

Range of tank temperature measuring: 0 ~110oC

Suitable power of pump: 2 pumps possible to be connected power of each pump < 200W .

Inputs: 3 sensors

Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC)

NTC10K B3950 sensor (≤ 135oC) for tank (PVC cable ≤105oC)

Outputs:2 relays for circulation pumps or 3-way electromagnetic valve

Ambient temperature:-10oC ~ 50oC.

Water proof grade: IP40.

MAIN  FUNCTIONS

Timing  heating

Temperature  difference  control  1*ΔT

Collector  emergency  shutdown

Collector  cooling  function

Collector  low  temperature  protection

Collector  frost  protection

Tank  re-cooling  function

Celsius  and  Fahrenheit  temperature  switch

Maximum  temperature  of  tank(max.number  1)

Anti-Legionella  function

Temperature  controlled  hot  water  circulation  pump

RPM  speed  controlling(1*semiconductor)

Thermal  energy  measuring

Pump  interval  functions.

High  temperature  by-pass  function

Manual  Control(  for  2  outputs:P1H1)

Password  setting

Recovery  to  factory  setting

Holiday  fucntion

Manual  Heating

Temperature  query  function

Memory  Protection

Screen  protection

Trouble  shooting

Trouble  protection

Trouble  checking
