SolarTide

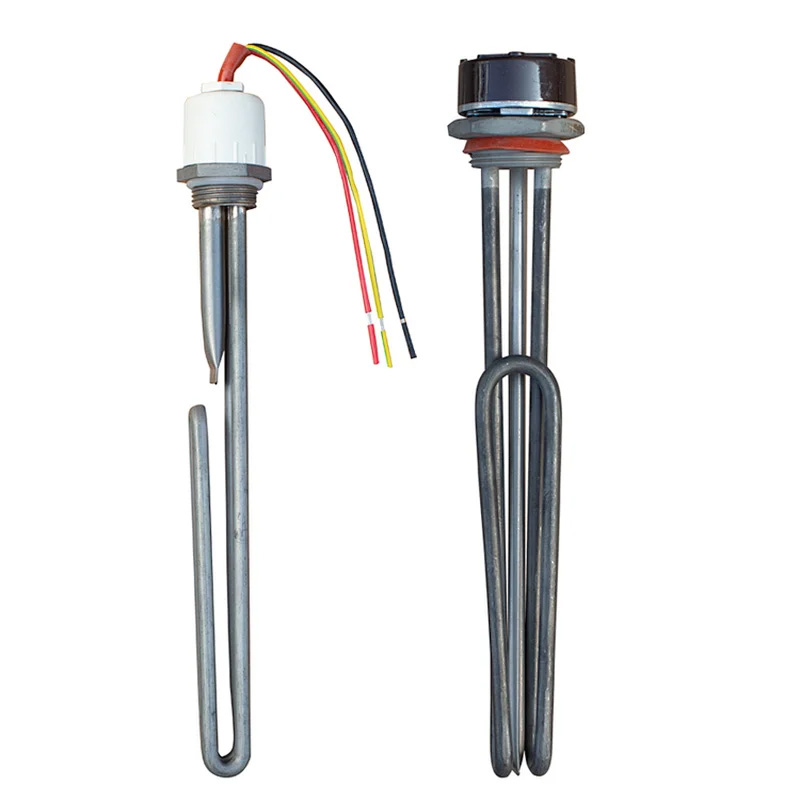

SolarTide Heating element

SolarTide Heating element

Model NO. SolarTide-HE

FEATURES

Model NO. SolarTide-HE

Price: US $ 6.00-15.00 / pieces

Delivery: FOB

Minimum order quantity: 100 pieces

Supply Ability: 100000 pieces / Week

Country of Origin: China

Stock Time: 20 Days

Product Description

No.

Main Parameters

1

Model No.

SY06-30UT

2

Tube Material

Copper(T2)/Stainless Stell

3

Output power

1000W-3000W +5%, -10%

4

Voltage

220V-240V/50Hz. 110V/60Hz

5

Hi-pot test

1800V/S min cold condition

6

Leakage Current

0.75ma max

7

Insulation

500MΩ

8

Heating resistance wire

Ocr25AI5, Cr20NI80 or as custom's requirement

9

Sheath Diameter

8mm-8.4mm

10

Hydraulic testing

8.0KG

11

Total Length

30cm

12

Flange

1 1/4"brass flange with/without Mg anode holding M6/M8

13

Thermostat

With 16A 250V. L=275mm. Double safety thermostat.

14

Temperature Range

20-80℃


Basic Information

Material:Copper(T2)/Stainless Stell

Brand:SolarTide

Model:SolarTide-HE
