Solar Water Heater Packing Line
Application:
Used for solar water heater tank cleaning and packing
Production line assembly:
1. Around 18 meter roller table (Clean line with wheel)
2. Power roller table 3 sets
3. Lift arm 1set
4. Automatic boxing (sealing)machine 1set
5. Automatic belt packing 1set
6. Electricity & gas control system 1set.
Description:
Plate chain conveyor rack with aluminum structure, the supporting foot with steel and install a set of support legs, each 1.5 m. Panel steel sheet mold forming, power unit and tensioning devices using steel welded conveyor chain pitch 100 industrial chain, the drive inverter is used for motor. The transmission speed can be adjusted between 1 ~ 6m/min. Packing robot with dual clamp structure of the cylinder to drive the gripping part of the install rubber pads, adjustable clamping force through the valve. Set up different types of manual adjustment of the positioning device to ensure correct packing. Balers MH-102 automatic strapping machine, bar form; three parallel strapping (adjustable), the installation of photoelectric sensing systems and production lines to produce linkage. Automatic sealing machine MH-FJ automatic sealing machine, sealing speed 16m/min; automatic timely transportation; up and down at the same time sealing. The entire production line control system for centralized system, compact body. Easy to operate, manual operation and automatic operation selectable by the knob to switch between manual and automatic, many of the production line to set the emergency stop button, each drive mechanism with electrical overload protection and failure alarm function. This production line inverter and PLC by Japan's Mitsubishi, and other electrical components using Omron cylinder mining and solenoid valve AirTAC.
Parameter:
Max.Stand Weight | 40kg |
Tank diameter | Φ420mm - Φ500mm |
Tank length range | 1100-3500mm |
Power | 1.5KW |
Voltage | 380v 50HZ |
Air Pressure | 0.5Mpa-0.8Mpa |
Labor | 2 people |
Tatk Time | 90s-70s |
8houes Max.Efficiency | 400sets/8h |
Components Size
Roller table clean line(mm)(L*W*H) | 18000×520×550, |
Belt packing machine | 1900×620×1600。 |
Automatic boxing machine | 1300×1000×1500 |
Remark:
If feel clean line length not enough, can add as your need

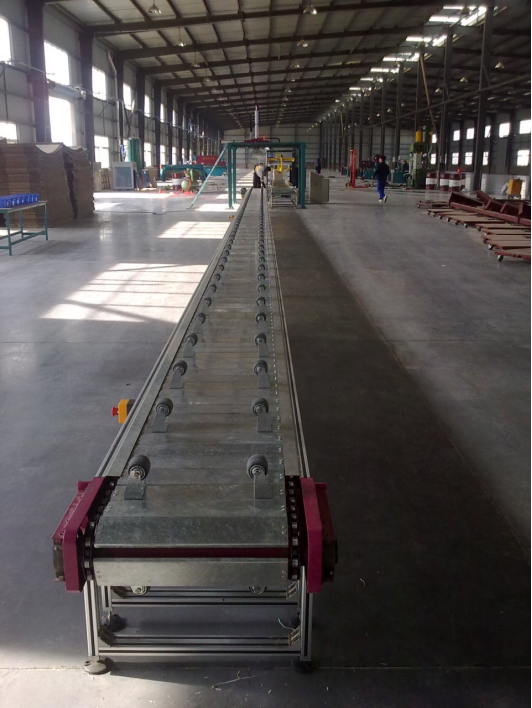

1. Photo

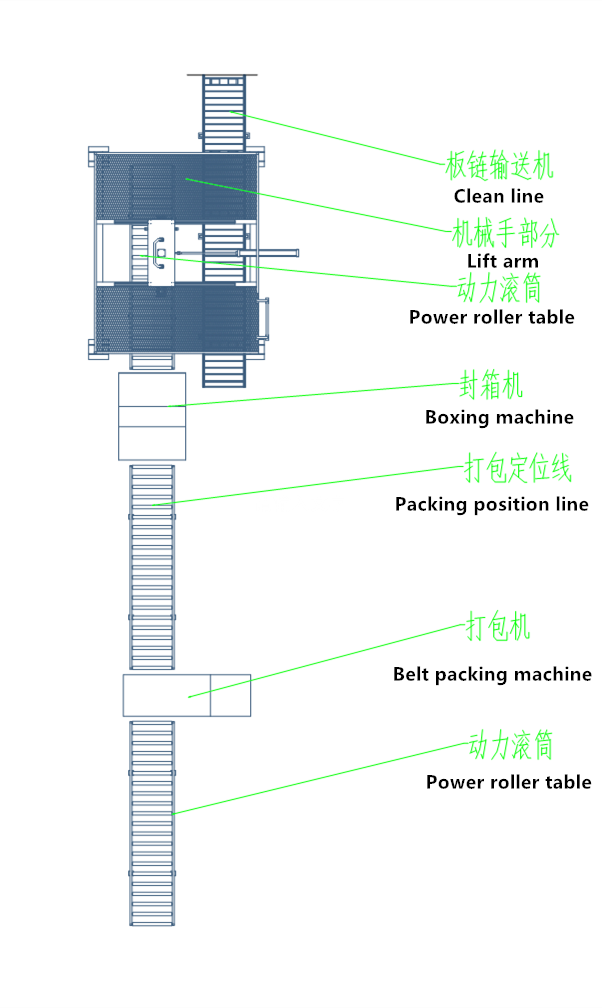

1. Schematic
