Solar water hater support frame production line-Tank holder produce
Application

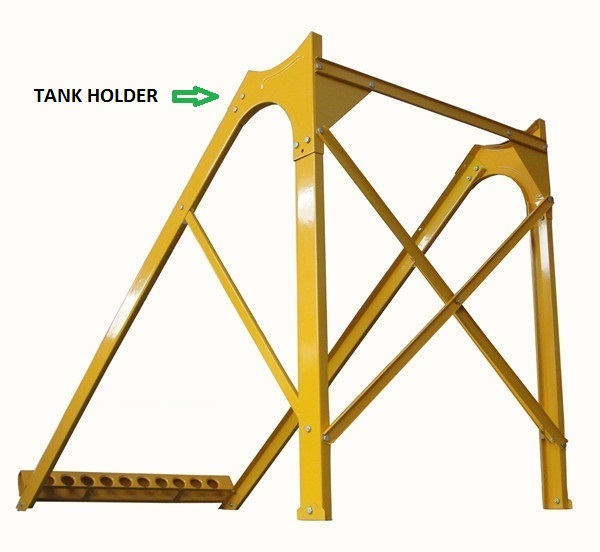

Tank holder blanking & forming
Description

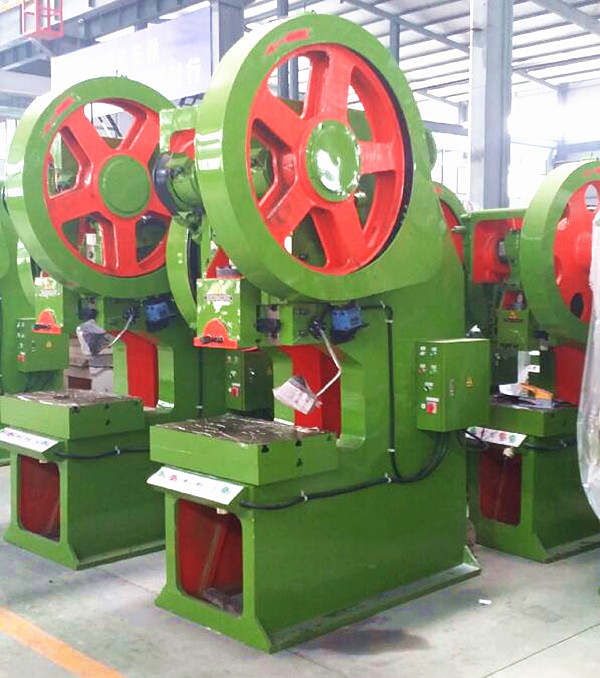

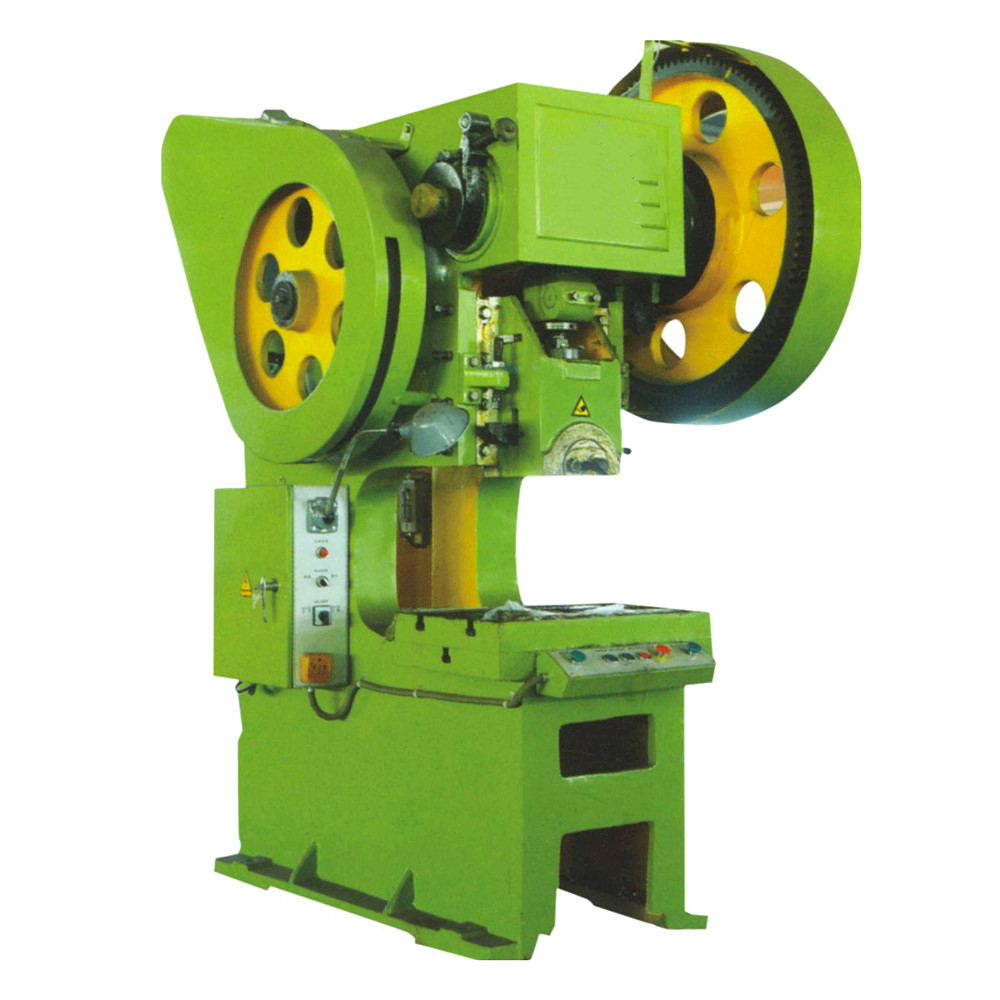

Punching sheet for solar products, need to increase the depth of the throat, provide more room to work, using the crankshaft horizontal structure, rigid and rotating key clutch, body made of cast iron precision casting and after artificial aging.

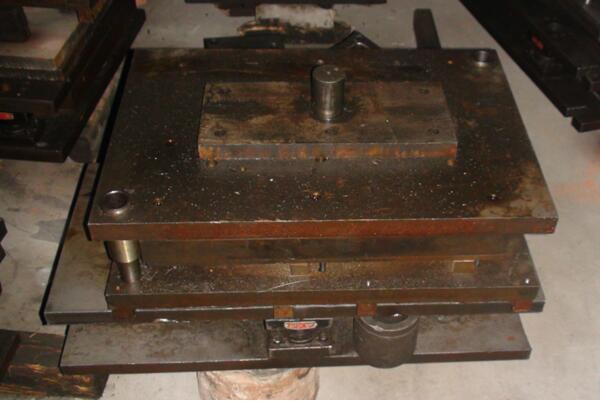

Mold has two type, one for GI material only, another is suit to SS & GI both material
Parameter data | |
PN | 1200KN |
Slide stroke | 150mm |
Slide adjustment | 100mm |
Distance of body and the slide center | 400mm |
Shut Height | 400mm |
Efficiency | 80 time |
Voltage | 380v 50HZ |
Power | 3.0KW |
Weight | 5000kg |
Operation Labor | 1people |
Size (L*W*H) mm | 1600*1400*2500 |
YOUTUBE LINK:

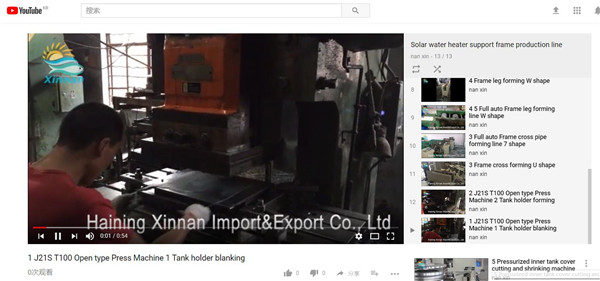

1 J21S T100 Open type Press Machine 1 Tank holder blanking
https://youtu.be/XyfFAzLj4vQ
2 J21S T100 Open type Press Machine 2 Tank holder forming
https://youtu.be/7Uy-GbXa7N4
