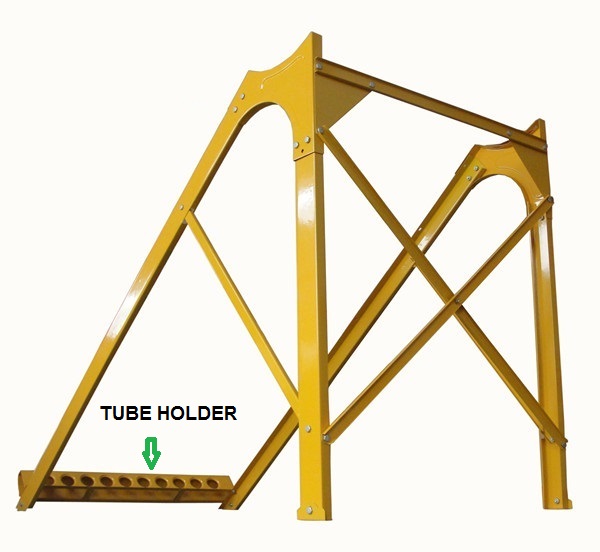

Solar water hater support frame production line-Tube support produce
Technological flow

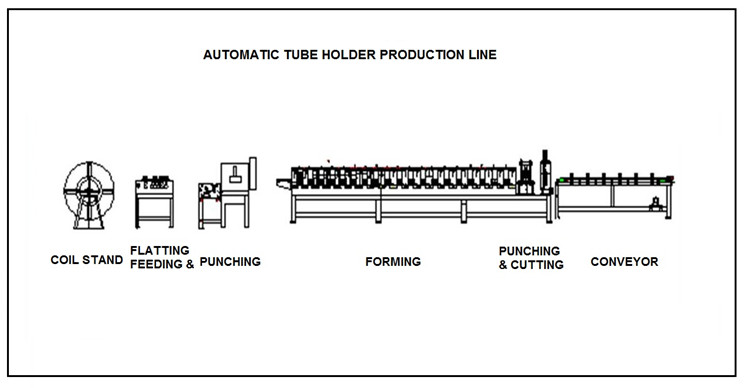

Material flatting → Straightening→ Feeding→ Tube Hole Punching →Positioning→ Forming→ Holes Punching→ Cutting→ Transfer
Processing Material
Q195、235, Thickness 1.0~1.5mm

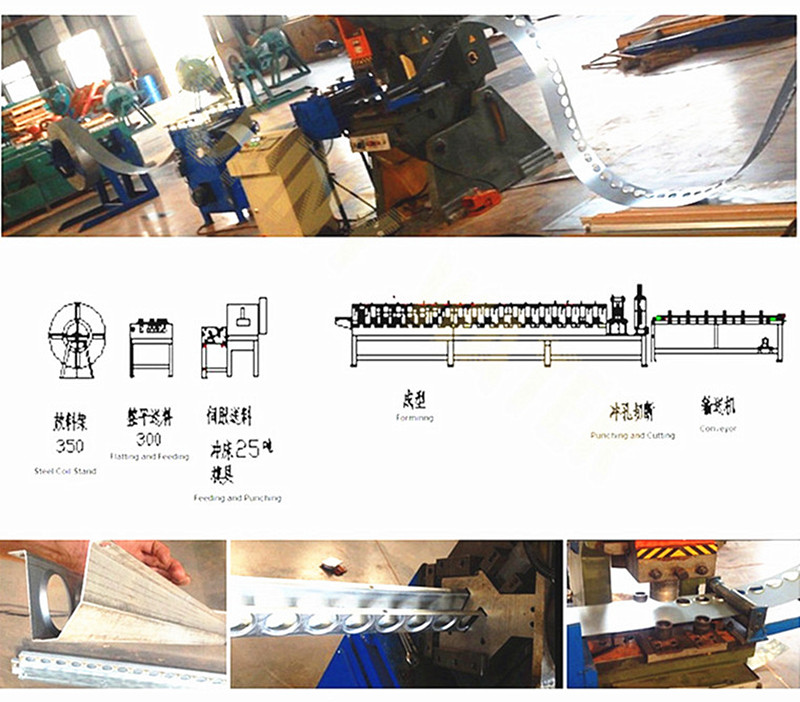

Production line components
1). Steel Coil Stand – 1 set
2). Straightening machine – 1 set
3). Feeder - 1 set
4). Electric servo feed punching machine control system – 1 set
5). Tube hole punching mold and Guiding device – 1 set
6). 25TON Electromagnetic punching machine – 1 set
7). Forming machine – 1 set
8). Connect hole punching and Cutting system – 1 set
9). Hydraulic pump – 1 set
10). Electric hydraulic control system – 1 set
1). Steel coil stand: Max. stand 2 Ton, manual type
2). Straightening machine: Up 5 Wheels, Down 6 Wheels, Power 1.5KW, Processing width: 300mm,
3). Feeder: Power 1KW, make sure tube hole precisely
4). Punching system: In the role of guiding device, feeder cooperate with punching, can set the tube hole centre distance and size. Control system is Japanese MITSUBISHI PLC,
WEINVIEW touch screen. Linking with forming machine control system.
5). Molds material: Cr12MoV, heat treatment hardness: HRC58 ~ 60. Total of 2 sets of knifes.
6). Punching machine: 25 TON
7). Forming machine:
a. Forming speed: 0～10m/min
b. Forming passes: 20 (up and down 20 each)
c. Axle Dia: Ф 55 mm, 45 # steel material.
d. Roller material: GCR15, precisely machining, heat treatment
e. Transmission: high torque hydraulic motor, chain transmission
f. Forming machine has photoelectric sensor and coder, effective control of the tube support size
g. Transmission: Friction conveyor belt feeding, motor 0.35 KW. Main function is transfer the tube support, avoid finish product damage.
h. Punching and Cutting system: cut off the smoothly, without waste. Control system adopts Japanese MITSUBISHI PLC, WEINVIEW touch screen, linking punching control system,
convenient operation and control of the whole line.
