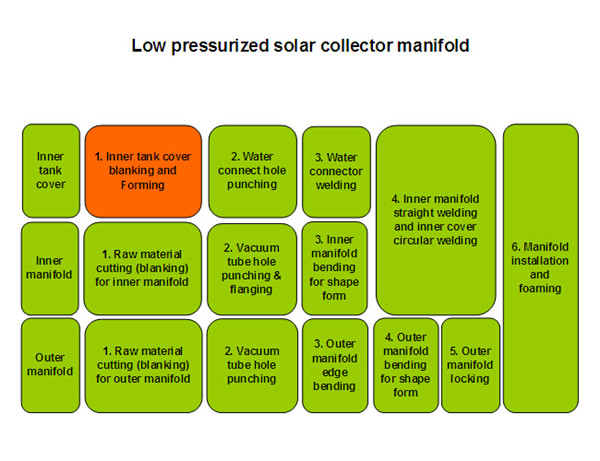

Low pressurized solar collector manifold production line Step 1. Inner tank cover blanking and Forming
Application:
Manifold inner tank cover forming.

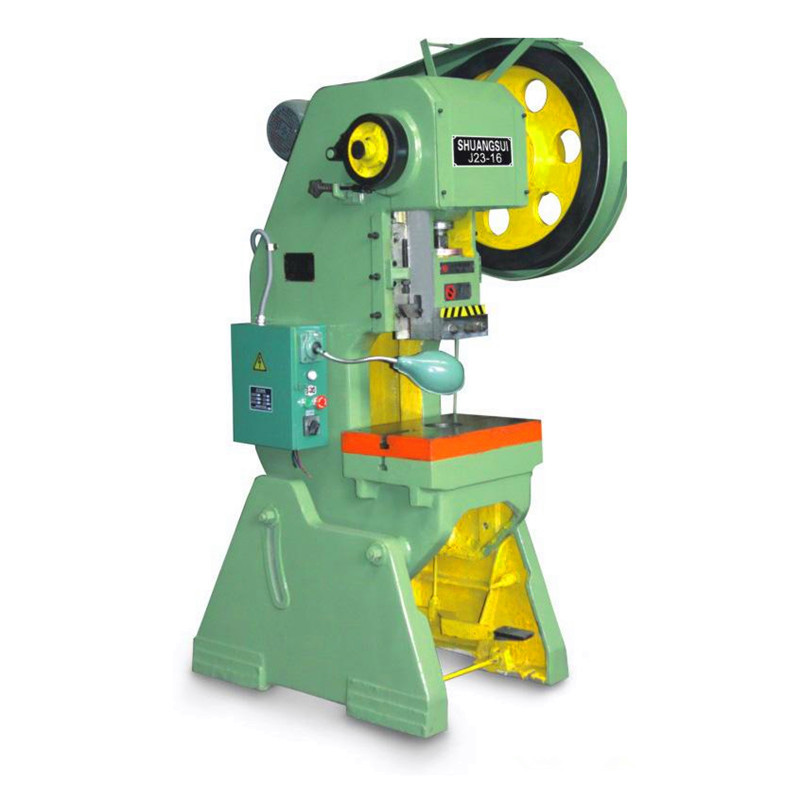

Structure of crankshaft askew, turn rigid clutch, airframe using iron precision casting.
Parameter data | |
Nominal Pressure (PN) | 160KN |
Slide Stroke | 50mm |
Slide adjustment | 50mm， |
Distance of body and the slide center | 350mm |
Shut Height | 180mm |
Max. Efficiency | 120 times/min |
Max. processing material thickness | 0.4mm (Forming material thickness) |
Voltage | 380v 50HZ |
Power | 1.75KW |
Operation Labor members | 2 person |
Weight | 900kg |
Floor space (L*W*H) mm | 600*1100*1700 |
