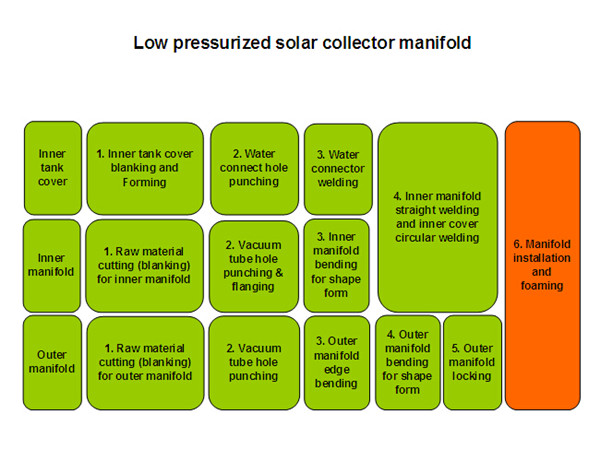

Low pressurized solar collector manifold production line Step 6. Manifold installation and foaming
Application:

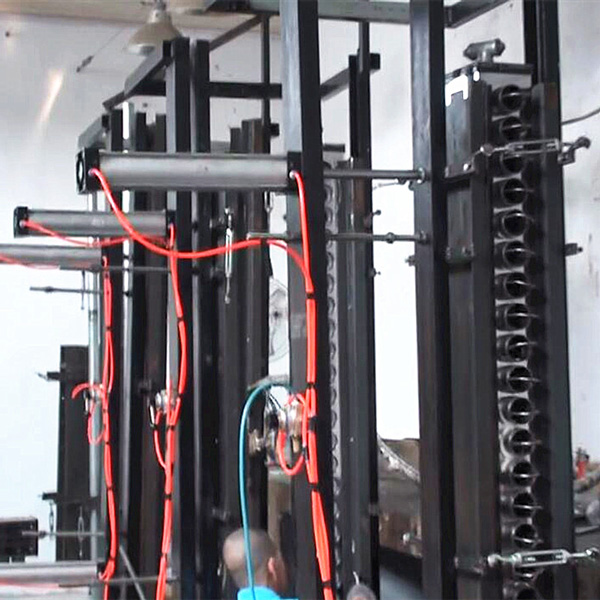

Manifold foaming fix for inner and outer manifold.
For solar collector, manifold inner and outer tank foaming. Specially designed fixture, fixed the tank in foaming. Prevent the tank moves, deformation.
Parameter data | |
Max processing manifold Length | 2500mm (30 tubes) |
Inlet & outlet connect size | 1 inch or 1.5 inch ( 1 size in common) |
Voltage | 380v 50HZ |
Operation Labor members | 2 person |
Weight | 300kg |
Floor space (L*W*H) mm | 900*900*3000 |
