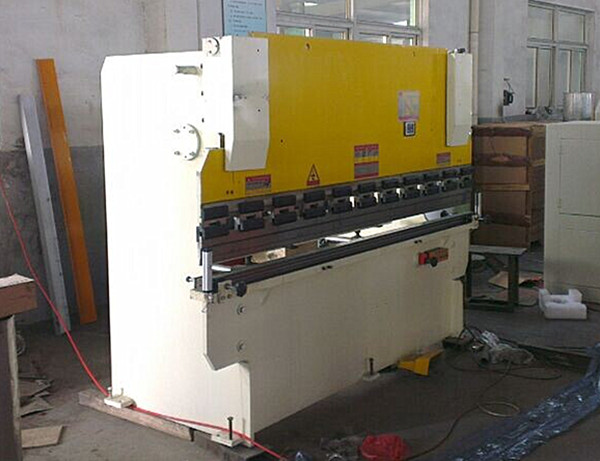

ZY40-2500 Bending machine

ZY40-2500 Bending machine

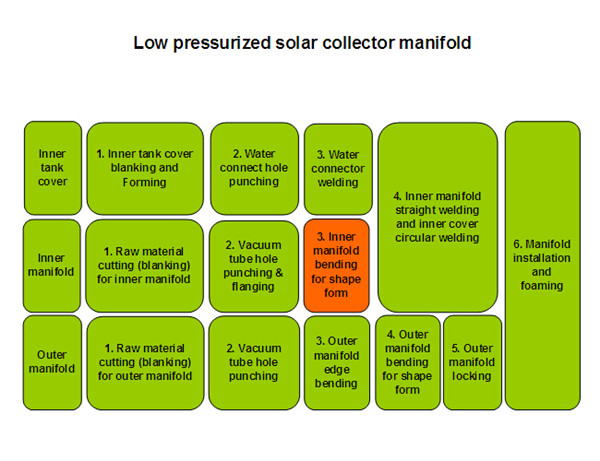

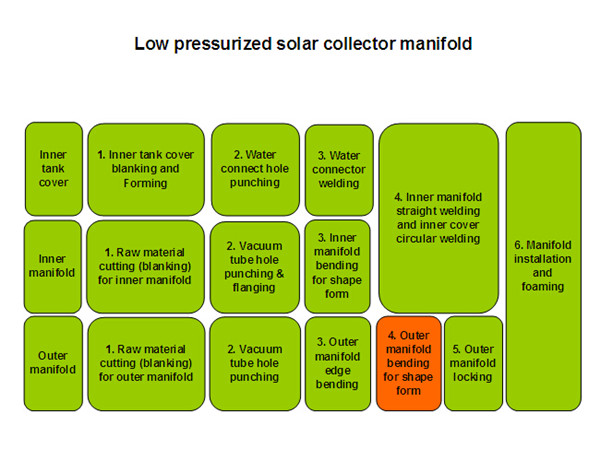

Low pressurized solar collector manifold production line Step 3. Inner & outer manifold bending for shape form

FEATURES

Application:

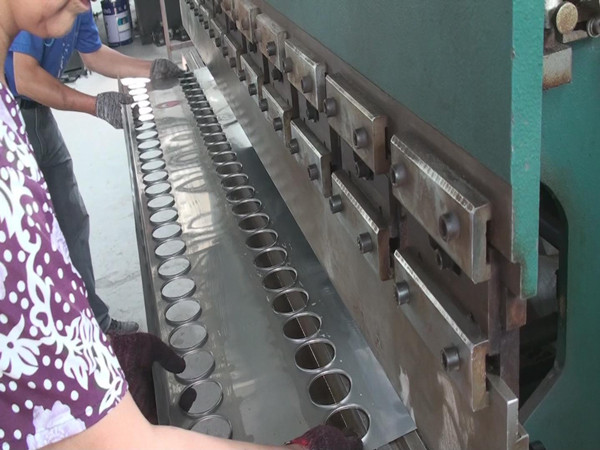

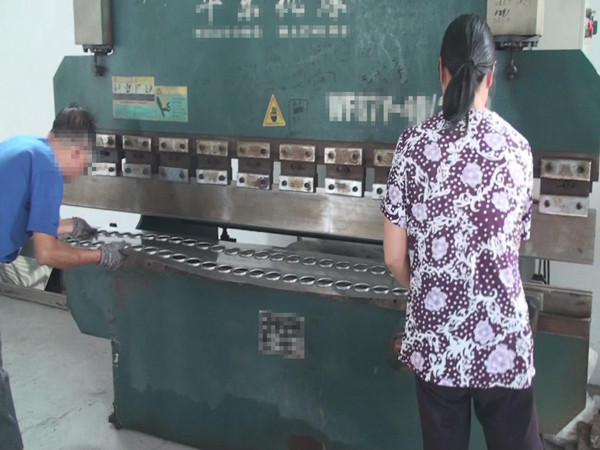

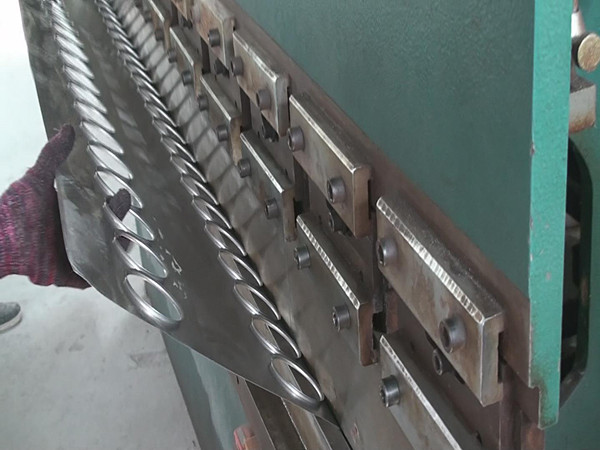

Inner & outer manifold square shape bending.

Product Description

Adopts hydraulic bending, High bending accuracy and efficiency. Machine body adopts all steel structure, stress small, rigidity high. Double acting hydraulic drive, the distance, on the slider stroke behind electric adjustment, manual fine adjustment, and is equipped with a flexible compensation mechanism. With a circular arc bending and right-angle bend mould


Parameter data

PN

600KN

Max bending thickness

0~2.5mm

Max process material width

2500mm,

Max bending width

adjustable

Voltage

380v

Power

4.5KW

8 hours Max. Efficiency

800 PCS bending

Weight

3500kg

Labor

1 people

Outer Size (L*W*H) (mm)

2500*1200*2150



Production Steps

YOUTUBE LINK:  https://www.youtube.com/c/EricZhuSolar

Production Steps
