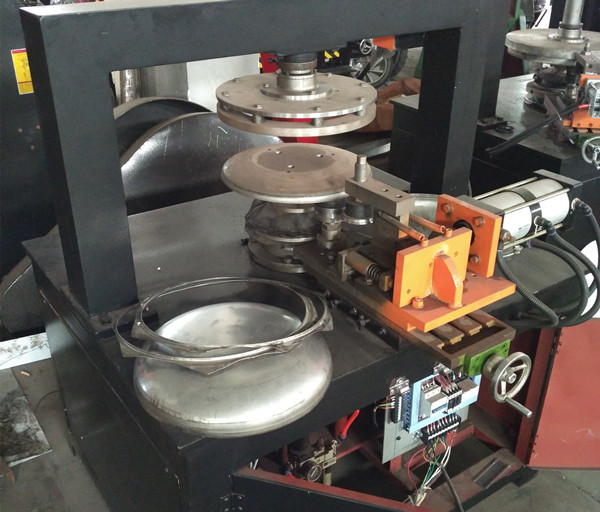

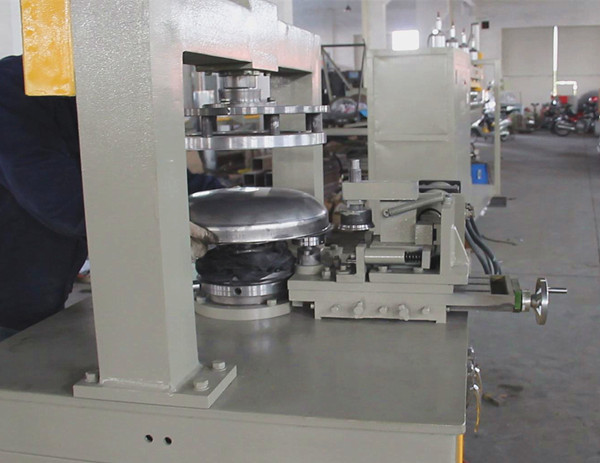

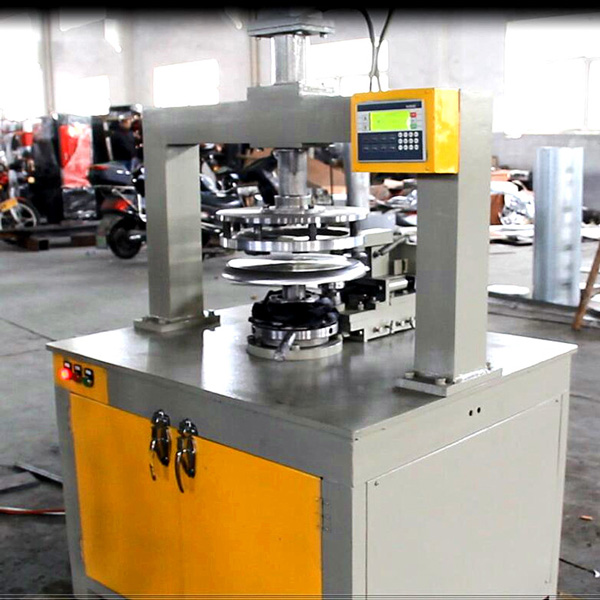

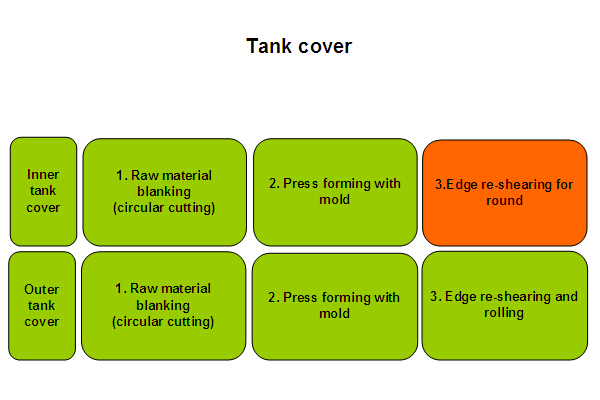

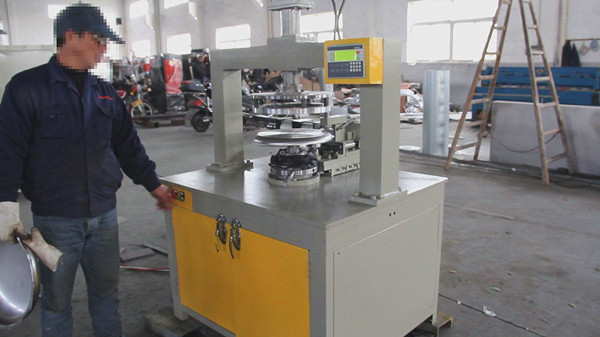

Pressurized Inner Tank cover Step 3. Edge re-shearing and shrinking
Application:

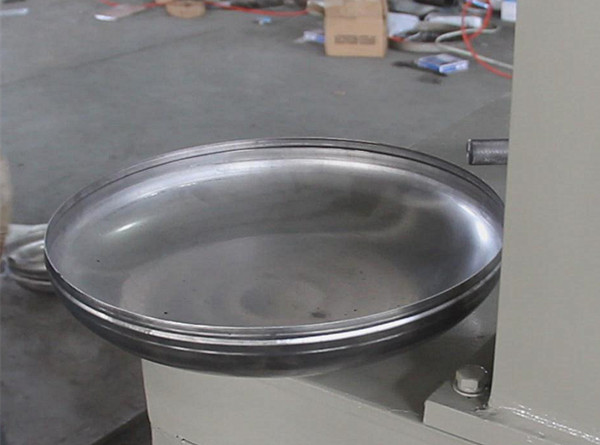

Used to pressurized inner tank cover cutting round and shrinking

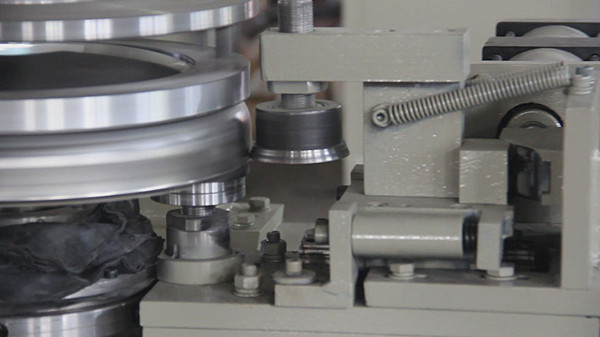

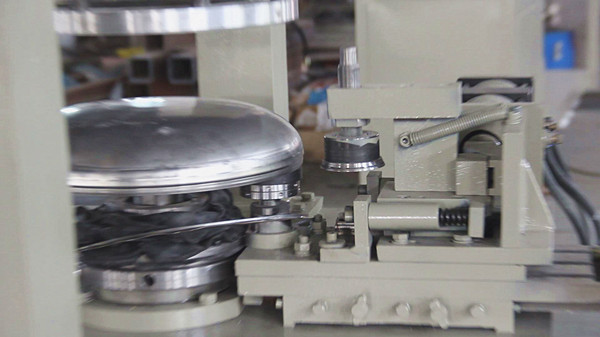

Outer frame type welded structure, high strength, good rigidity, blade adopts Gr12 high hardness steel production, and after a 810 - degree high temperature oil quenching heat treatment, to ensure the hard grind of the mould, the trimming a diameter of 400 mm, to increase the cutting tool of thrust cylinder adopts high power voltage double cylinder, efficacy than ordinary mechanical 3-5 times.
Parameter data | |
Processing diameter | 1 size, range less than 800mm |
Air pressure | 0.8Mpa |
Voltage | 380v/220v |
Power | 4.0KW |
Weight | 1600kg |
8hours Max. Efficiency | 1400PCS |
Size (L*W*H) mm | 1500*1200*1350mm |
