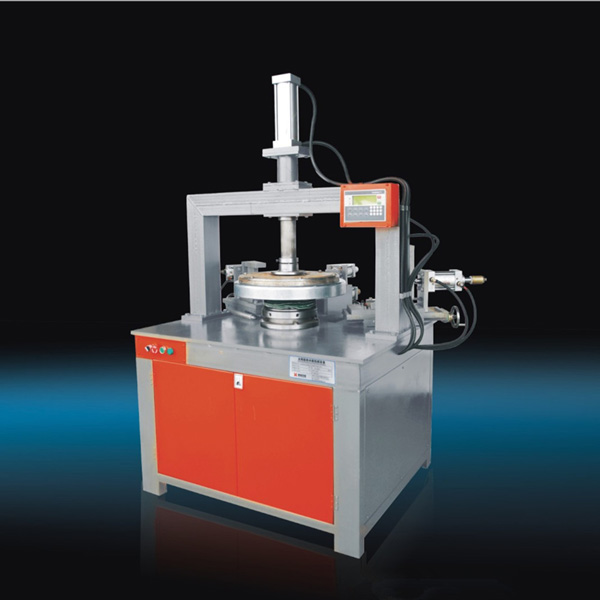

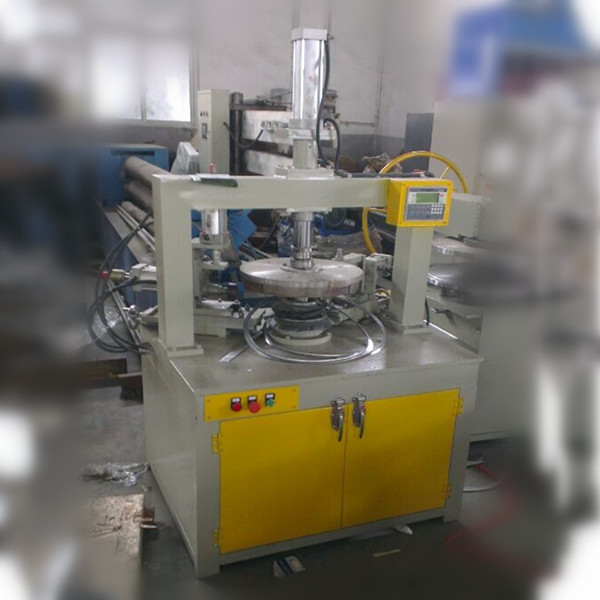

Tank cover Step 3. Edge re-shearing and rolling
Application:

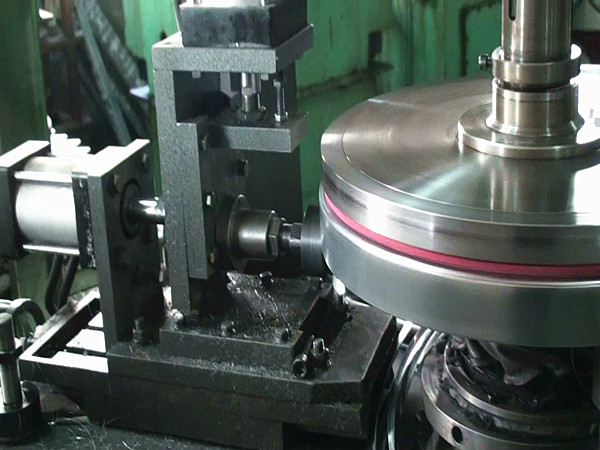

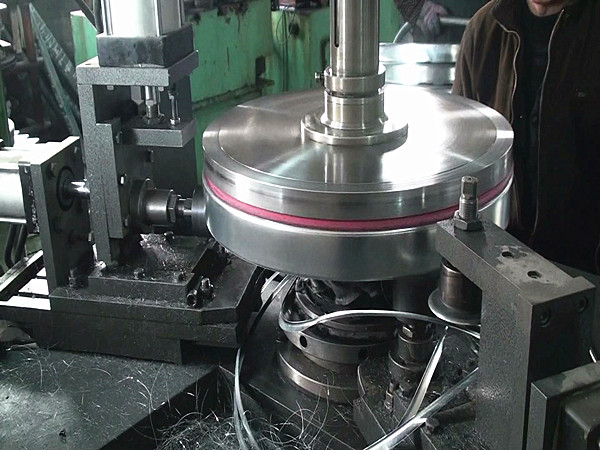

Used for out tank cover edge re-cutting and rolling (inside) after cover forming
Out tank cover automatic trimming, PLC computer control plate, round bar, agnail amphibious aircraft, warp 3.2 x 3.2 ±0.10 mm in diameter, efficacy than ordinary mechanical 3-5 times
Parameter data | |
Processing diameter | 1 size, range less than 500mm |
Air pressure | 0.5Mpa |
Voltage | 380v/220v |
Power | 2.0KW |
Weight | 1300kg |
8hours Max. Efficiency | 1500PCS |
Size (L*W*H) mm | 1300*1300*1750 |
