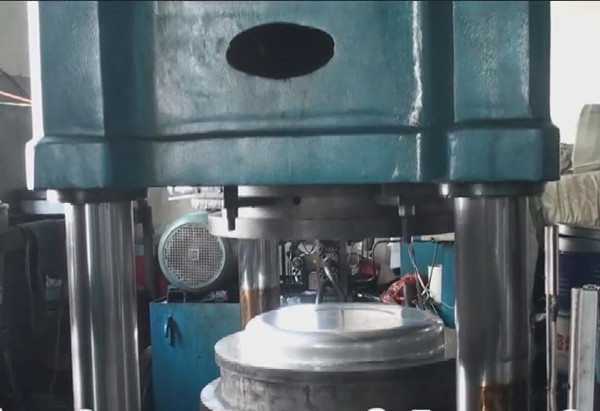

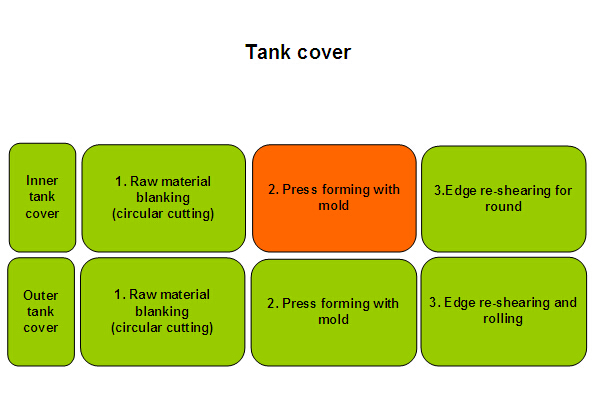

Tank cover Step 2. Press forming with mold
Application:
Non-pressurized Inner and outer tank cover forming machine, need mold cooperatively

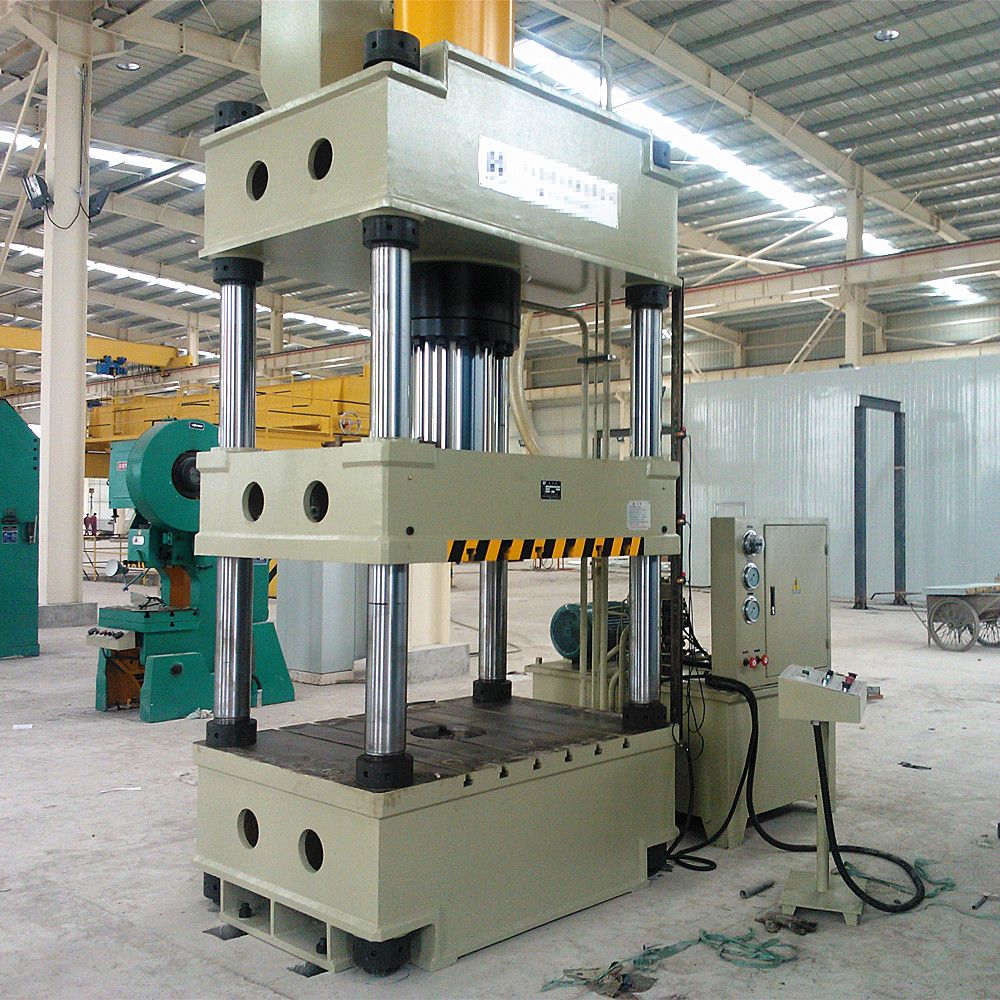

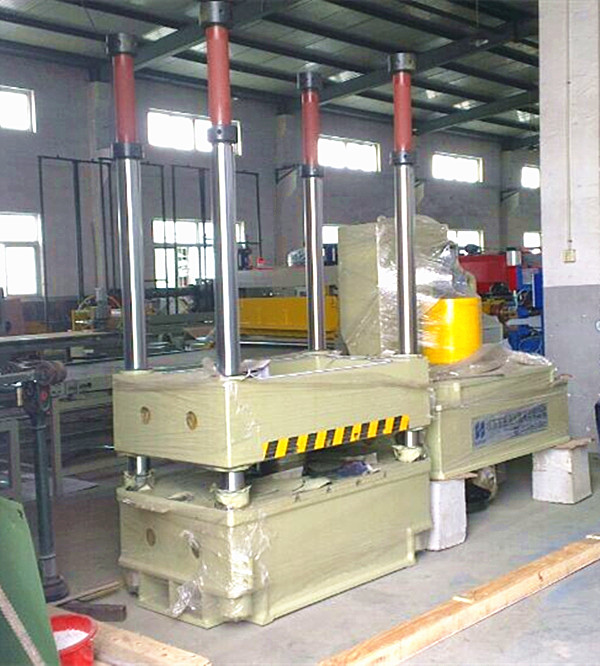

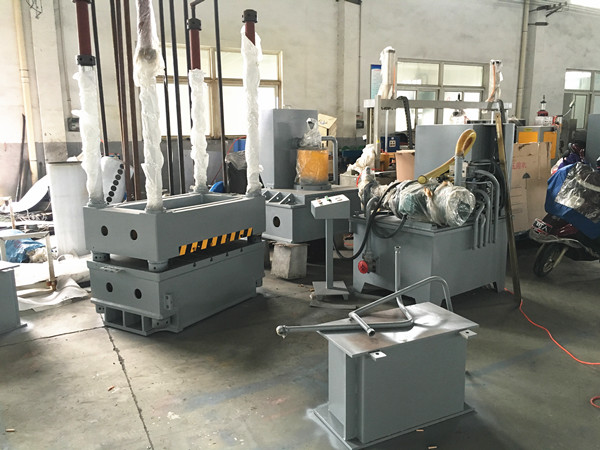

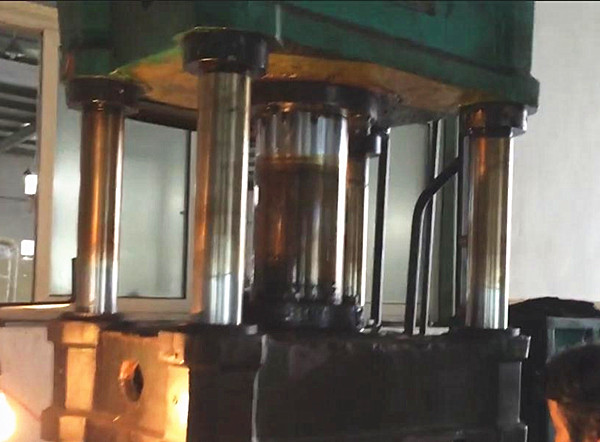

This machine is a general-purpose hydraulic pressure machine. Widely used product, stamping, bending, flanging, stretching processing. This machine has a power mechanism and electrical systems. Adopt buttons centralized hands, one control platform. High-pressure pump 63YCY14-1B axial piston pump. Low pressure pump using CB-B6 gear pump.
Parameter data | |
Nominal pressure PN | 1600KN |
The bottom cylinder output PN | 800 KN |
Working table size（L*W mm） | 900*800 |
Process material thickness | Inner 0.5mm, outer 0.5mm |
Outer tank depth | Base on mold |
Tank diameter | Base on mold |
Down speed | 100mm/S |
Push out speed | 60mm/S |
Voltage | 380v 50HZ |
Power | 11KW |
Operation Labor | 1people |
8hours Max. Efficiency | 1200 PCS tank cover |
Weight | 7000kg |
Size (L*W*H) mm | 1200*1100* 2950 |
YOUTUBE LINK: https://youtube.com/shorts/v0ysnB7wsEE?feature=share
