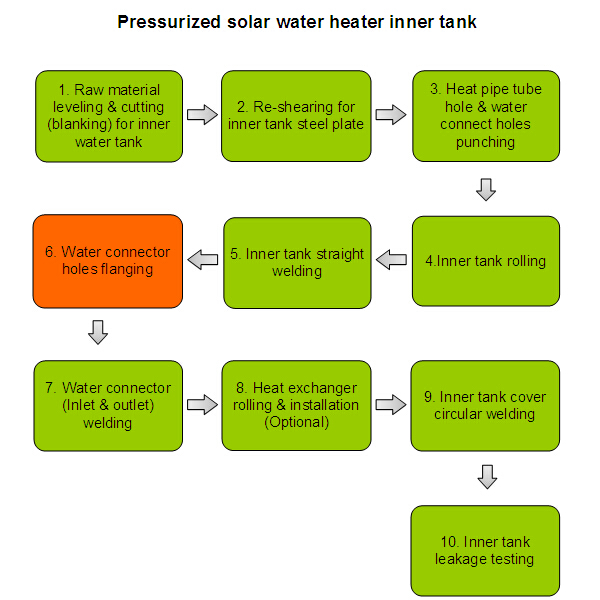

Pressurized solar water heater inner tank production line Step 6. Water connector holes flanging
Application:

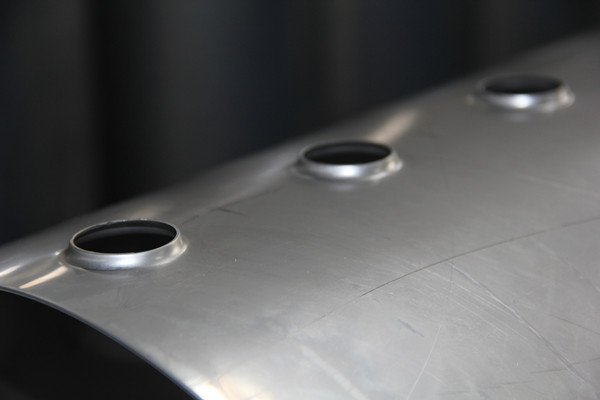

Pressurized inner tank holes flanging.

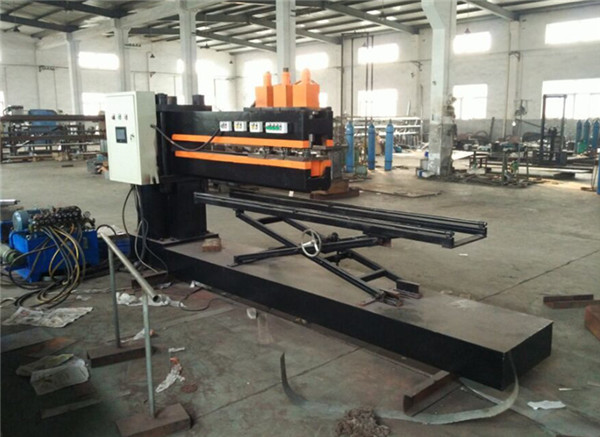

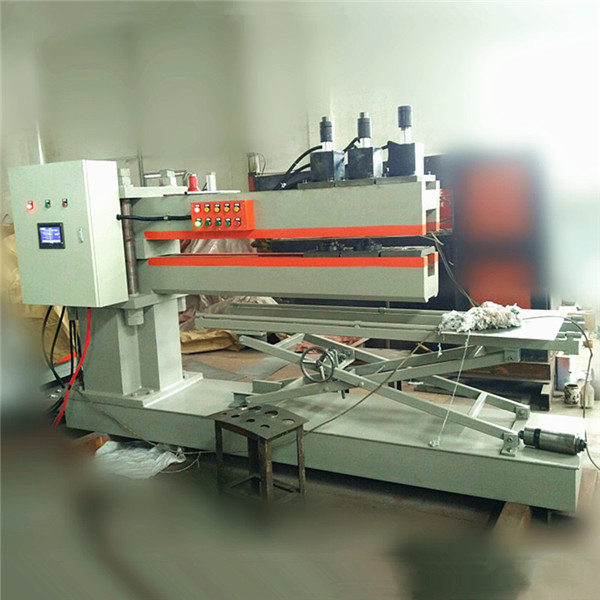

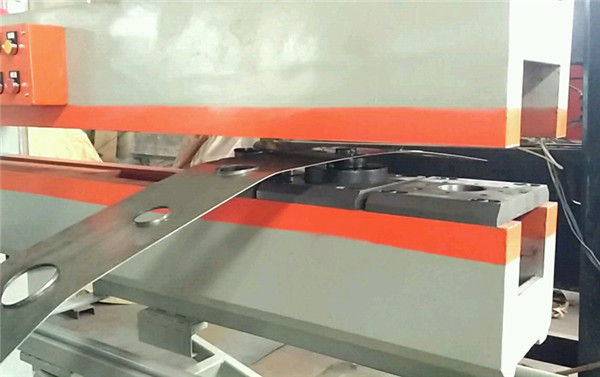

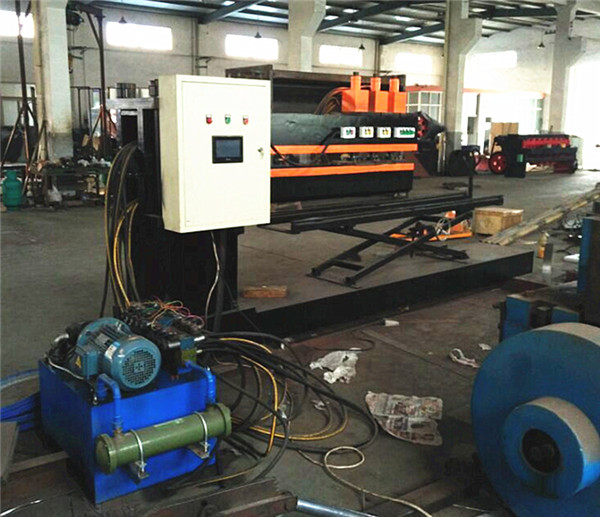

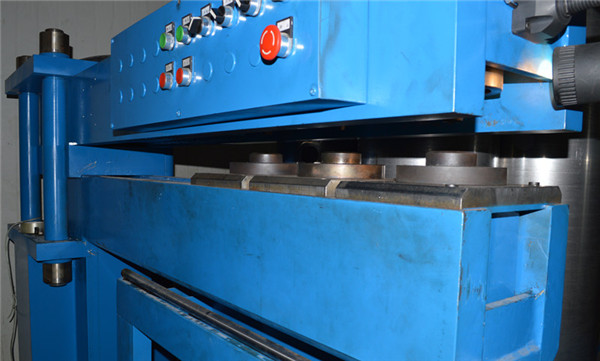

Open type steel plate welded structure. Hydraulic system configuration, equipped with high speed hydraulic blow head, used to install the flanging hole flanging mold. Lift with steel ball bracket is easy to adjust water tank diameter size, installation of 3 sets of flanging molds.
Parameter data | |
Maximum welding thickness | 1.5 mm stainless steel/2.0mm galvanized steel |
Max. Effective Length | 3000mm (2 ends, double time) |
Flanging diameter | 1/2’ inch ~ 2’inch (3 size molds in option) |
Voltage | 380v 50HZ |
Power | 40KW |
Operation labor | 1 people |
8 hours Max. Efficiency | 1800 holes |
Weight | 3200kg |
Dimension (mm) (L*W*H） | 2300*900*1400 |
