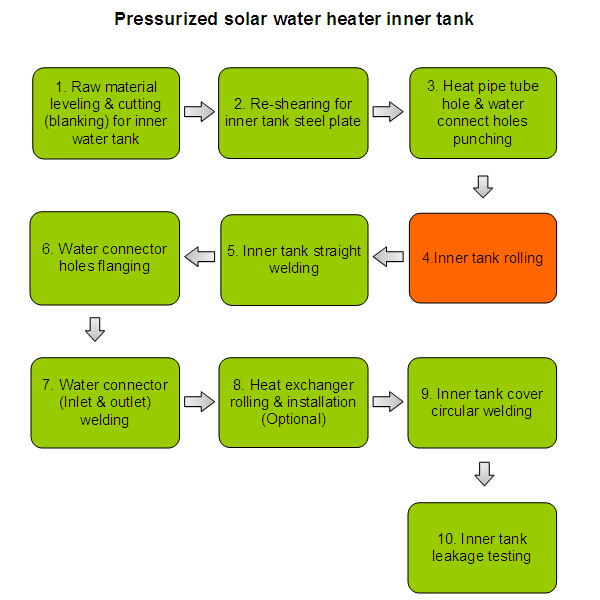

Pressurized solar water heater inner tank production line Step 4.Inner tank rolling
Application:

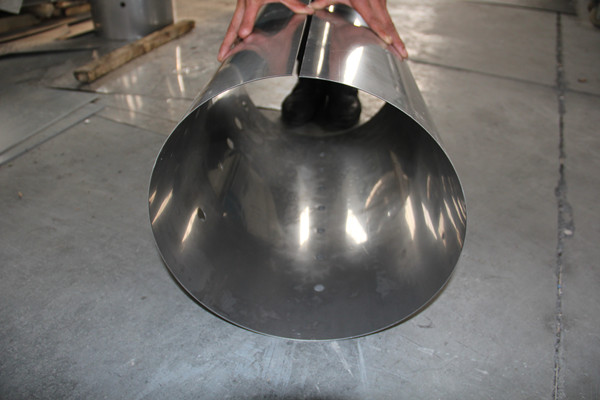

Inner tank rolling.

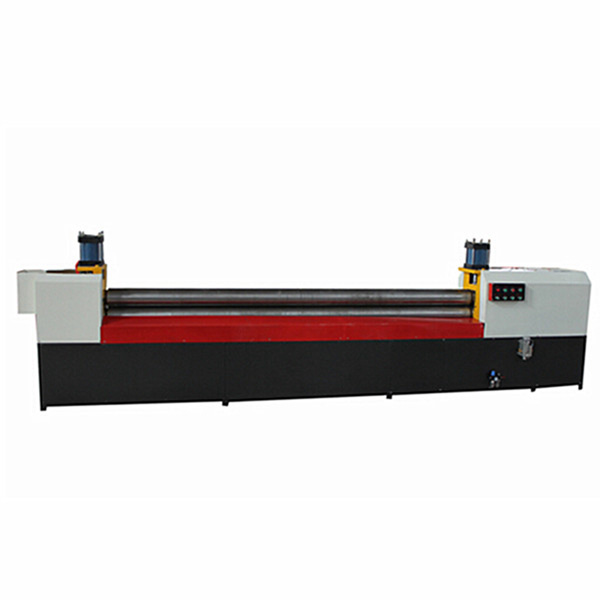

Using asymmetric three roll closed structure, cylinder lifting, coil diameter size can be adjusted.
Parameter data | |
Rolling Diameter | Adjustable |
Max. Rolling Length | 2500mm |
Max. Rolling Thickness | 1.5mm stainless steel |
Power | 2.2KW |
Voltage | 380v 50HZ |
Air Pressure | 0.5Mpa—0.8 Mpa |
Labor | 1—2people |
8 hours Max. Efficiency | 250pcs/inner tank |
Weight | 2000kg |
Dimension (mm) (L*W*H） | 3400*850*1300 |
