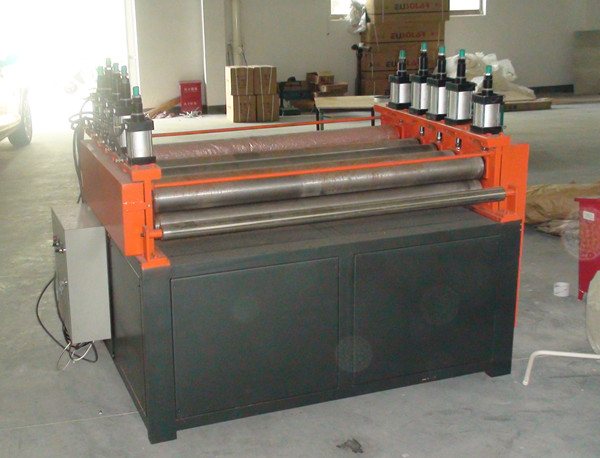

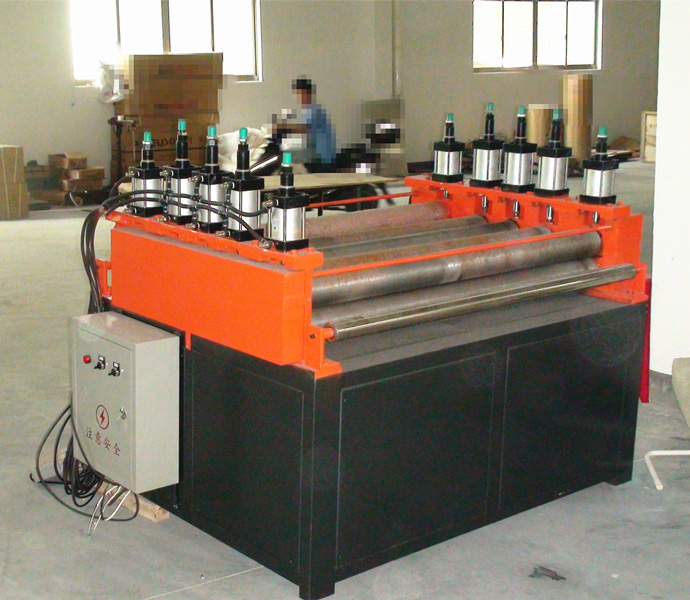

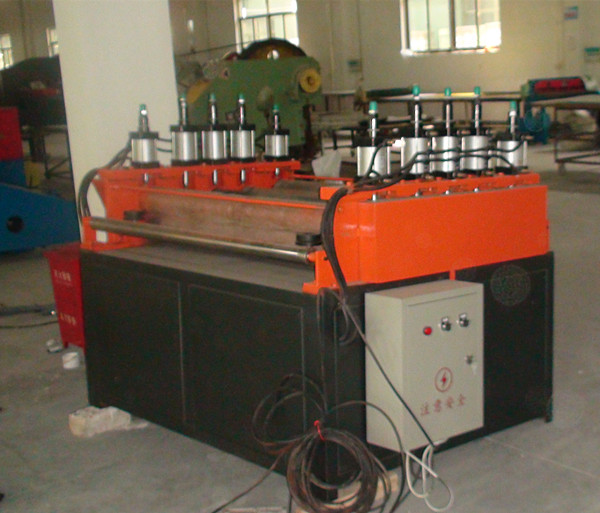

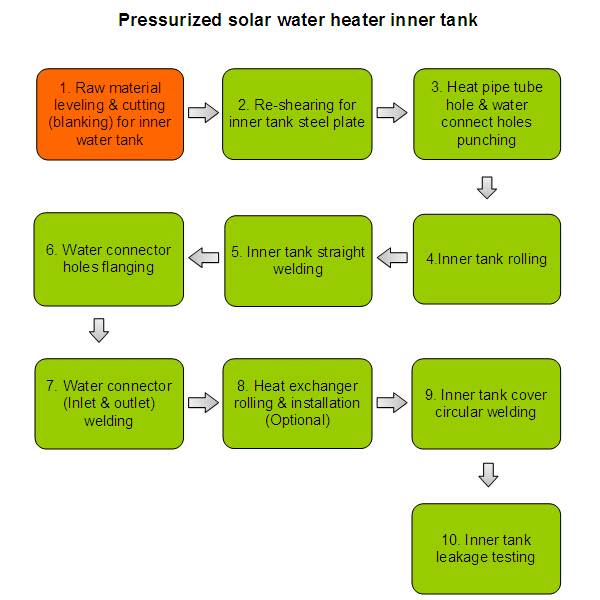

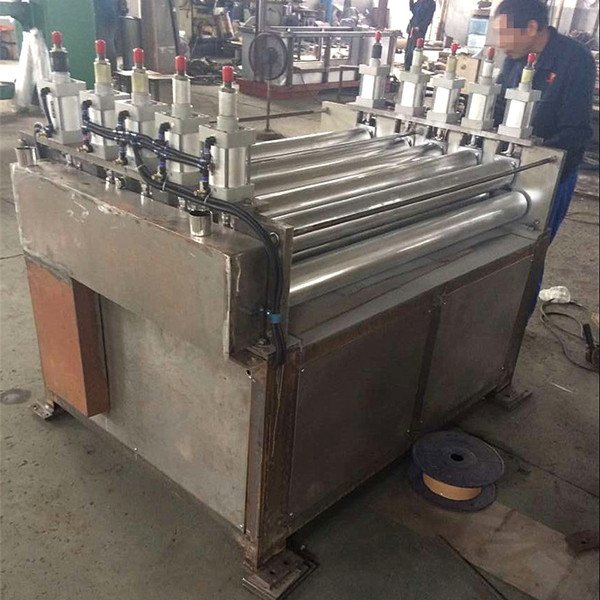

Pressurized solar water heater inner tank production line Step1. Raw material leveling & cutting (blanking) for inner water tank
Application:
Used for inner tank steel plate traction and leveling.
This machine integrating traction, leveling function, equipped with a set of traction roller and four groups of leveling roller. Leveling roller and traction roller surface with hard chromium plating, improve the service life. Up roller adopt cylinder lifting and easy operation. Cooperate with cutting machine.
Parameter data | |
Max process width | 1300mm |
Max process thickness | 0.8mm/ 2.0mm |
Power | 2.0KW/ 3.0KW |
Voltage | 380v 50HZ |
Air Pressure | 0.5Mpa—0.8 Mpa |
Operation Labor | 2 people |
Weight | 850 kg |
Dimension (mm) (L*W*H） | 1200*1550*1300 (L*W*H) |
