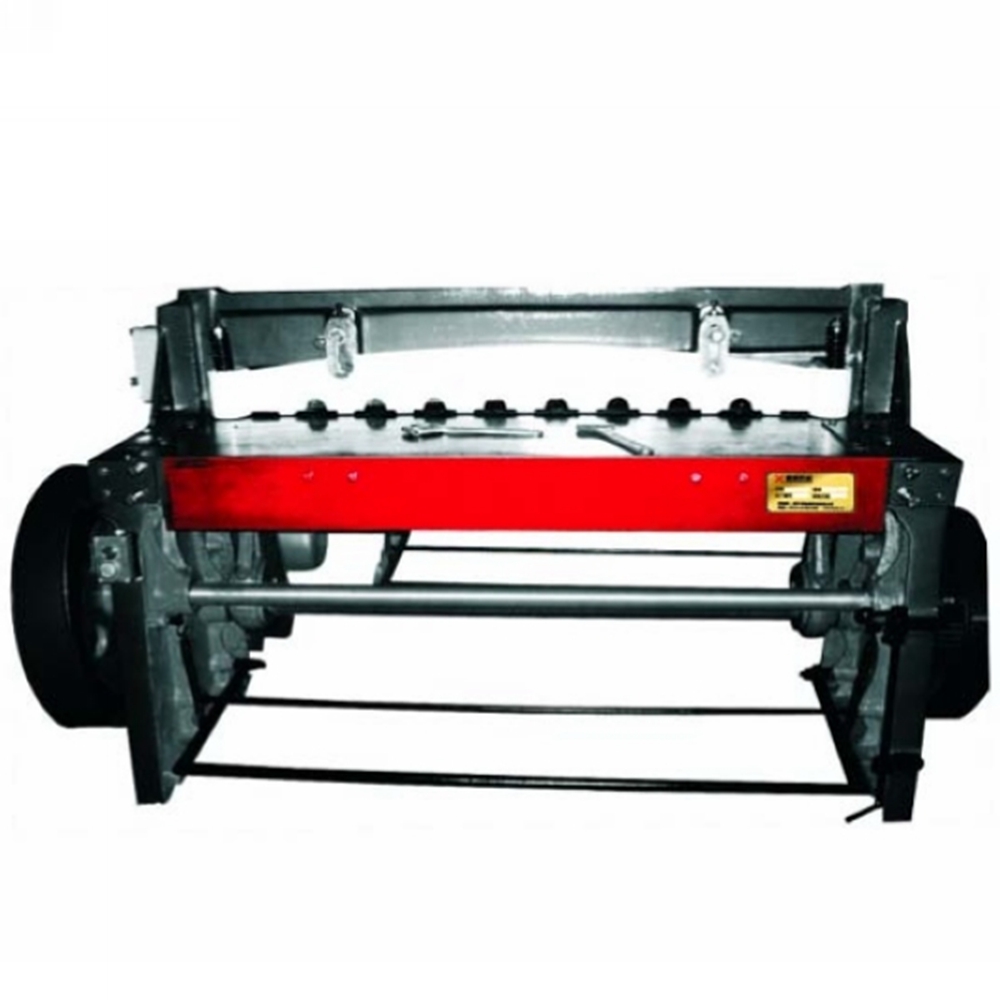

Q12-1300 Cutting machine

Q12-1300 Cutting machine

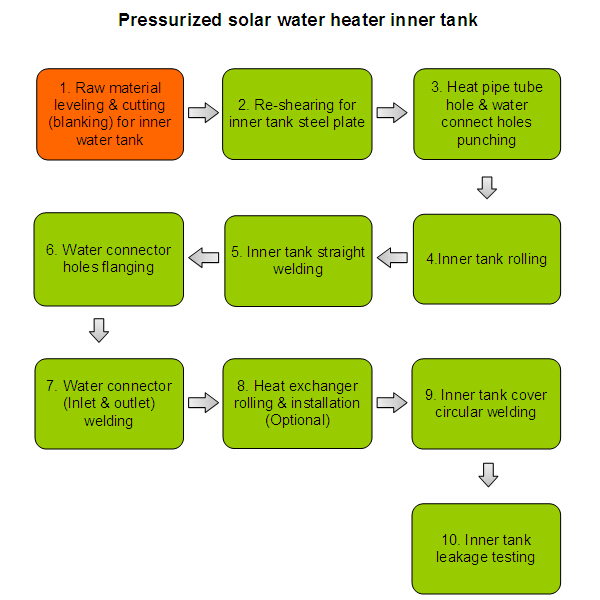

Pressurized solar water heater inner tank production line Step1. Raw material leveling & cutting (blanking) for inner water tank

FEATURES

Application:

Pressurized solar water heater inner tank steel plate cutting.

Product Description

In the form of resistance to key structure and open gear clutch. Shear automatic reset. machine equipped with keep-off device and stepping bar folding device. Pedal spring using sliding protection fixed. The body adopt the cast iron, the blade is four shape type, blade used 9GS quality alloy steel (special for stainless steel), incision, no burrs. high shearing quality, durable, easy to use, suitable for all kinds of metal cutting requirements.


Parameter data

Max Effective Length

1300mm

Max Material Thickness

1.2mm stainless steel/ 3.0mm galvanized steel

Power

1.75KW

Voltage

380v 50HZ

Operation Labor members

3people

8hours Max. Efficiency

1000 steel plates

Weight

1000kg

Dimension (mm) (L*W*H)

1600*900*1400 (L*W*H)
