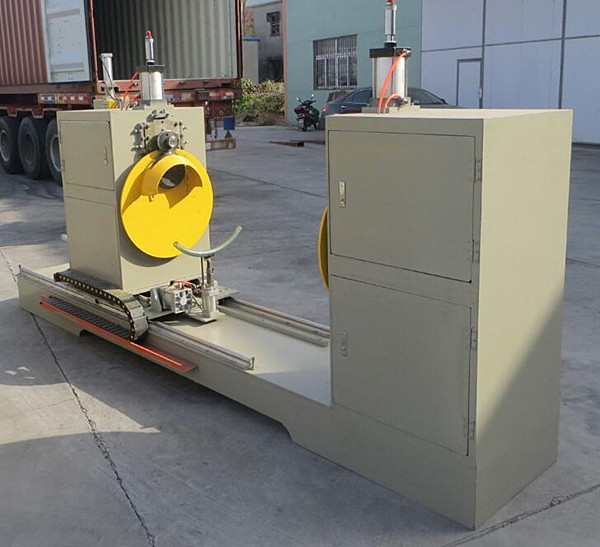

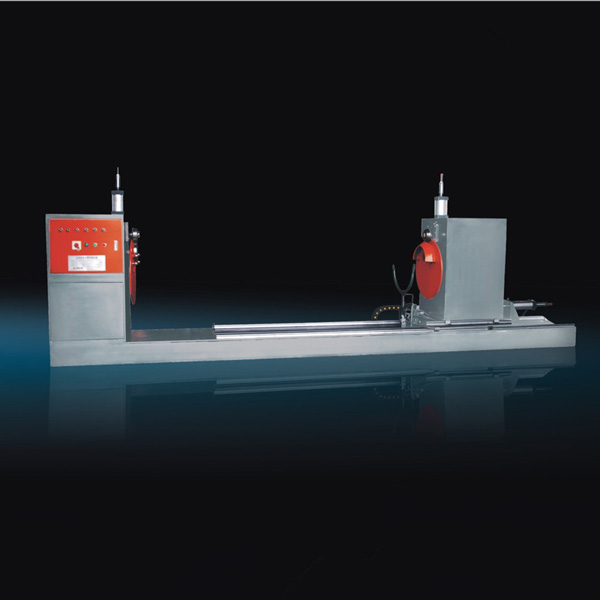

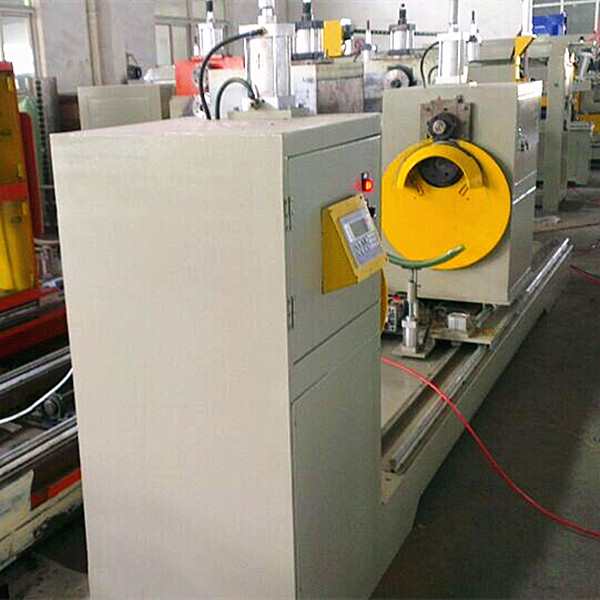

SK-S*3200 Air-pressure double-side Automatic Shrinking Machines

SK-S*3200 Air-pressure double-side Automatic Shrinking Machines

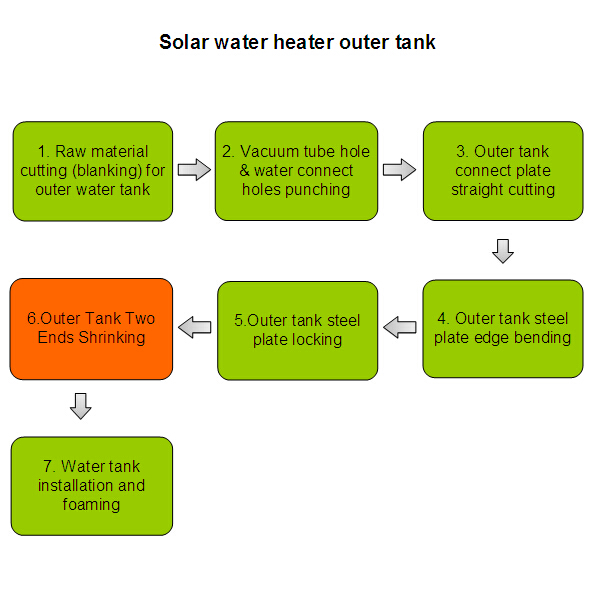

Solar water heater outer tank Step 6.Outer Tank Two Ends Shrinking

FEATURES

Application:

Solar Water Heater outer tank two ends shrinking

Product Description

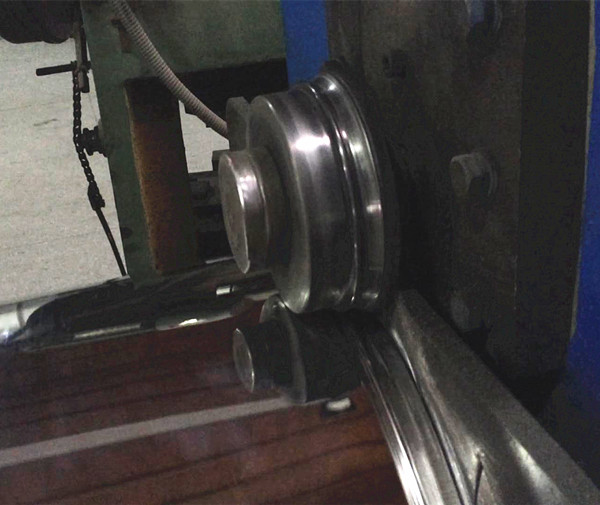

PLC automatic control systems, automatically two end shrinking.Fitted with automatic lifting bracket barrel body, automatically compensates for the short plate caused by shrinking, Different diameter shrinking do not need to change the mold. The rail use precision linear guide. Shrinking die is made of Cr12 with heat treatment, Omron electrical components, Taiwan AirTAC cylinder.


Parameter data

Max. Tank Length

3000mm

Tank Diameter Range

Φ380—Φ560

Processing Material Thickness

0.31mm - 0.6mm

Power

1.5KW*2

Voltage

380v50HZ

Air Pressure

0.5Mpa—0.8 Mpa

Operation Labor

1people

8 hours Max. Efficiency

350pcs/8h

Weight

1500kg

Size(L*W*H) mm

4200*650*1200
