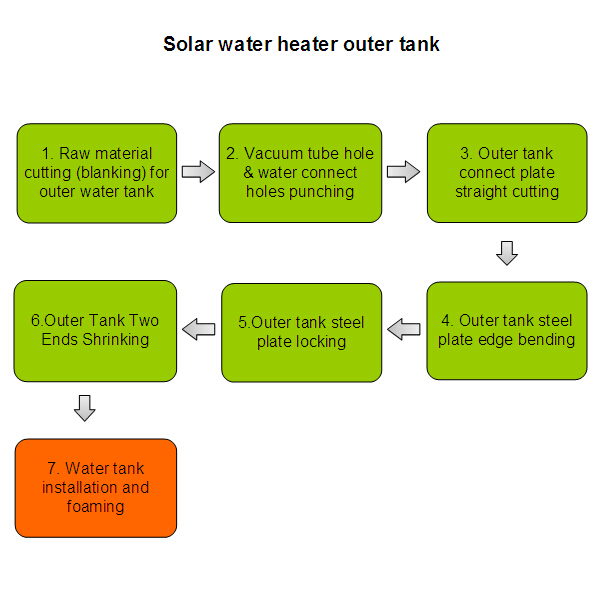

Solar water heater outer tank Step 7. Water tank installation and foaming
Application:
Fix the position of Solar Water Heater inner & outer tank in foaming

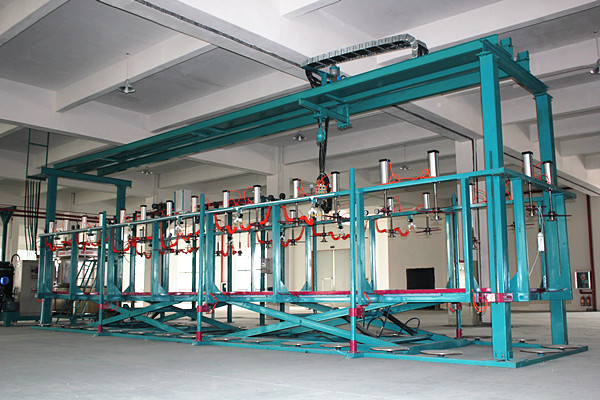

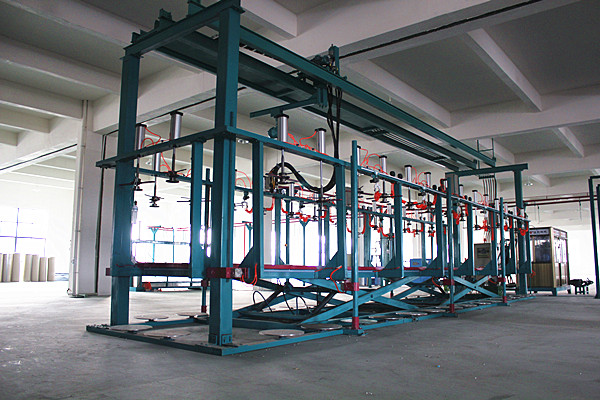

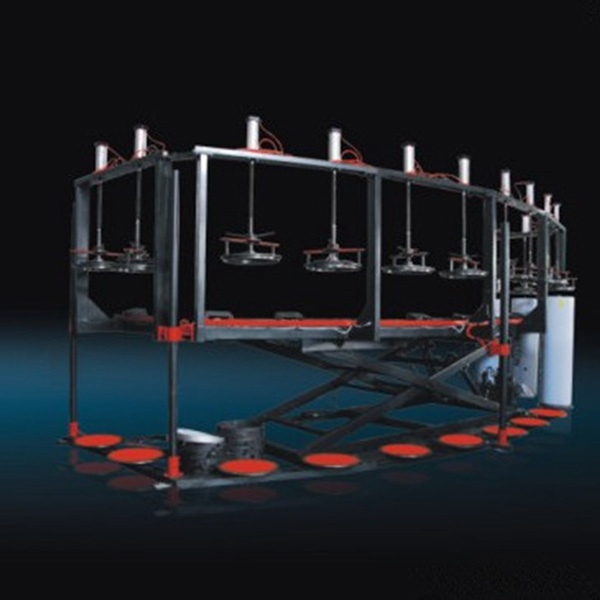

Mobile hydraulic lift table, countertops with automatic lock function, 8 foaming station. Adopt the cylinder pressure mode.
Parameter data | |
Max Tank Length | 3000mm |
Foaming Diameter | According to customer demand |
Foaming station | 8 set |
Power | 4.0kw |
Voltage | 380v50HZ |
Air Pressure | 0.5Mpa—0.8 Mpa |
Operation Labor | 4people |
8 hours Max. Efficiency | 160pcs/h |
Weight | 1500kg |
Size(L*W*H) mm | 4300*1800*4800 |
YOUTUBE LINK: https://youtu.be/QxDh2hxrsaA
