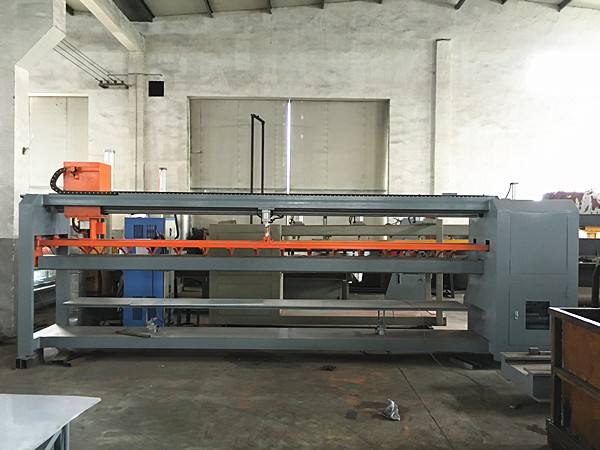

ZS-3200 Automatic Tenon Pressing Machine

ZS-3200 Automatic Tenon Pressing Machine

Solar water heater outer tank Step 5. Outer tank steel plate locking

FEATURES

Application:

Outer Tank locking, connect area Joggle and Planish

Product Description

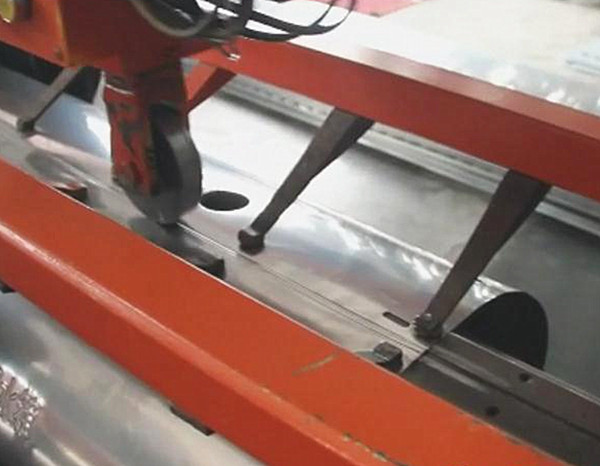

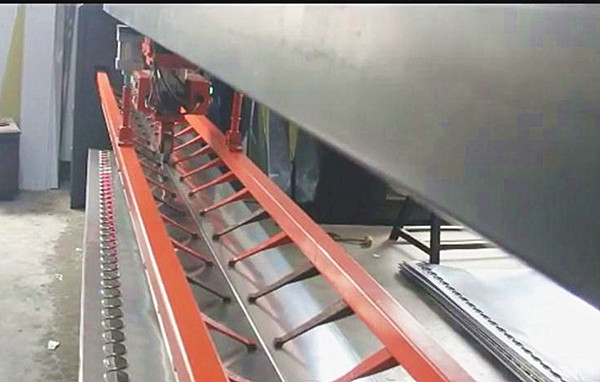

This machine adopts PLC automatic control systems. It have automatic plate positioning, the presser foot automatically platen, rollers automatically to down stream rolling, bottom bracket automatic lifting. Rolling number has single pressure and double pressure. Rollers is made of Cr12r, which with heat treatment. Lower mold material is 9GS with heat treatment, which greatly ensure the rolling mold’s life span. This machine adopt Omron electrical components, and Taiwan AirTAC cylinder


Parameter data

Max Pressure Tenon Length

3200mm

Outer Tank Diameter

Φ380—Φ560

Processing Material Thickness

0.31mm-0.50mm

Power

1.0KW

Voltage

380v 50HZ

Air Pressure

0.5Mpa—0.8 Mpa

Operation Labor

2 people

8 hours Max. Efficiency

300pcs/8h

Weight

1300kg

Size (L*W*H) mm

4500*800*1980 (L*W*H)

Video Guide

YOUTUBE LINK:  https://youtu.be/L5JuYTjgd2Q

Production Steps
