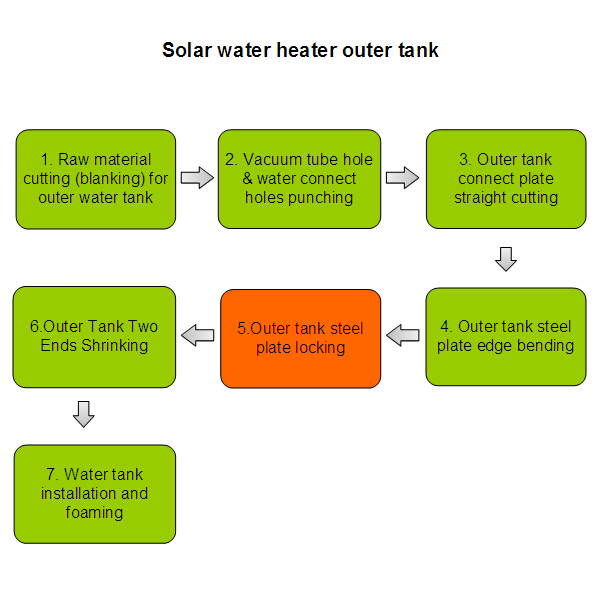

Solar water heater outer tank Step 5. Outer tank steel plate locking
Application:

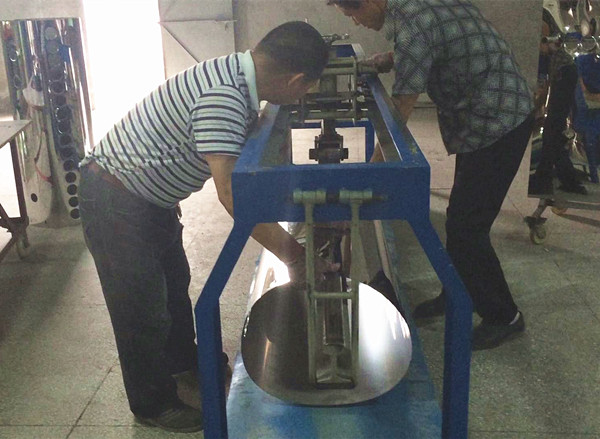

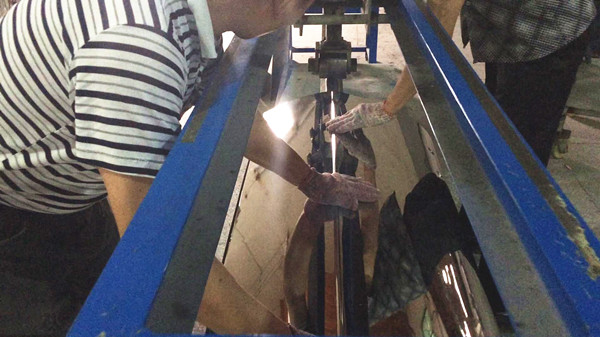

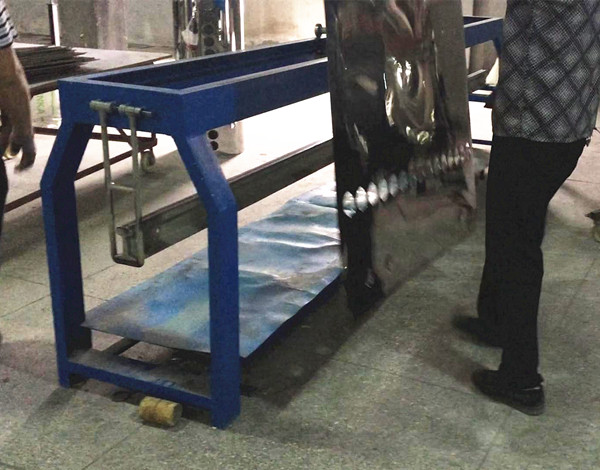

Outer Tank locking, connect area Joggle and Planish

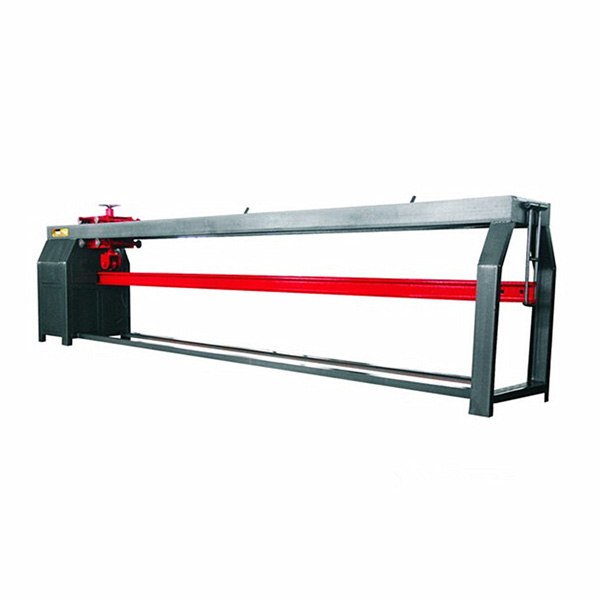

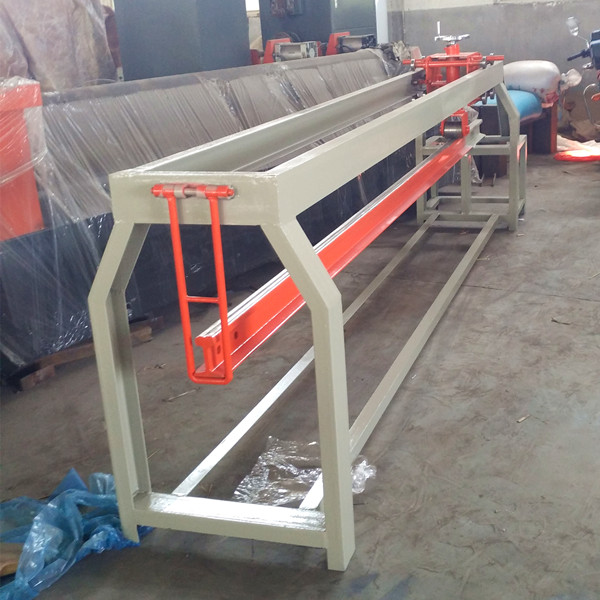

Machine body adopts high-strength frame type structure. Rolling power adopt artificial thrust mode. Rolling wheel is made of high strength abrasive wheel.
Parameter data | |
Max Pressure Tenon Length | 3000mm |
Outer Tank Diameter | Φ380—Φ560 |
Processing Material Thickness | 0.31mm-0.50mm |
Operation Labor | 2 people |
8 hours Max. Efficiency | 500pcs/8h |
Weight | 300kg |
Size (L*W*H) mm | 4100*620*1450 (L*W*H) |
YOUTUBE LINK: https://youtu.be/QxDh2hxrsaA
