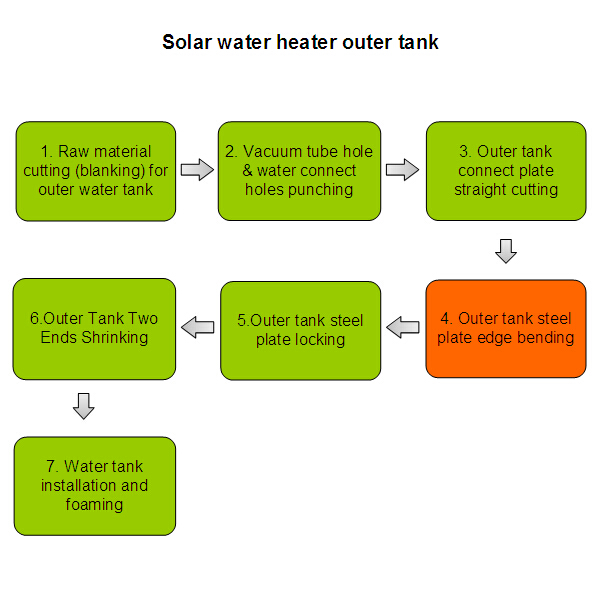

Solar water heater outer tank Step 4. Outer tank steel plate edge bending
Application:

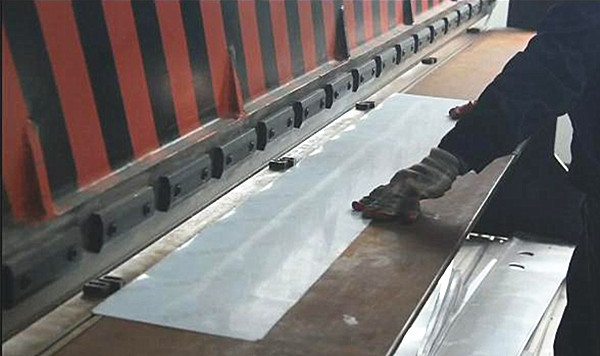

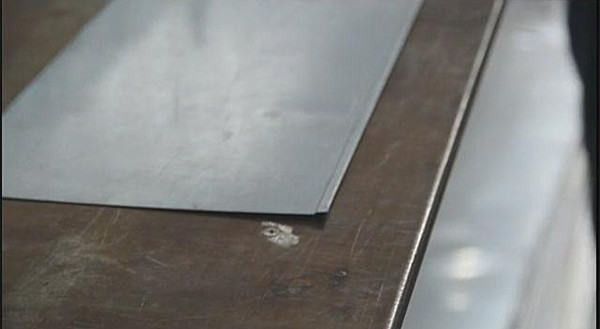

Solar Water Heater out tank connect edge bending

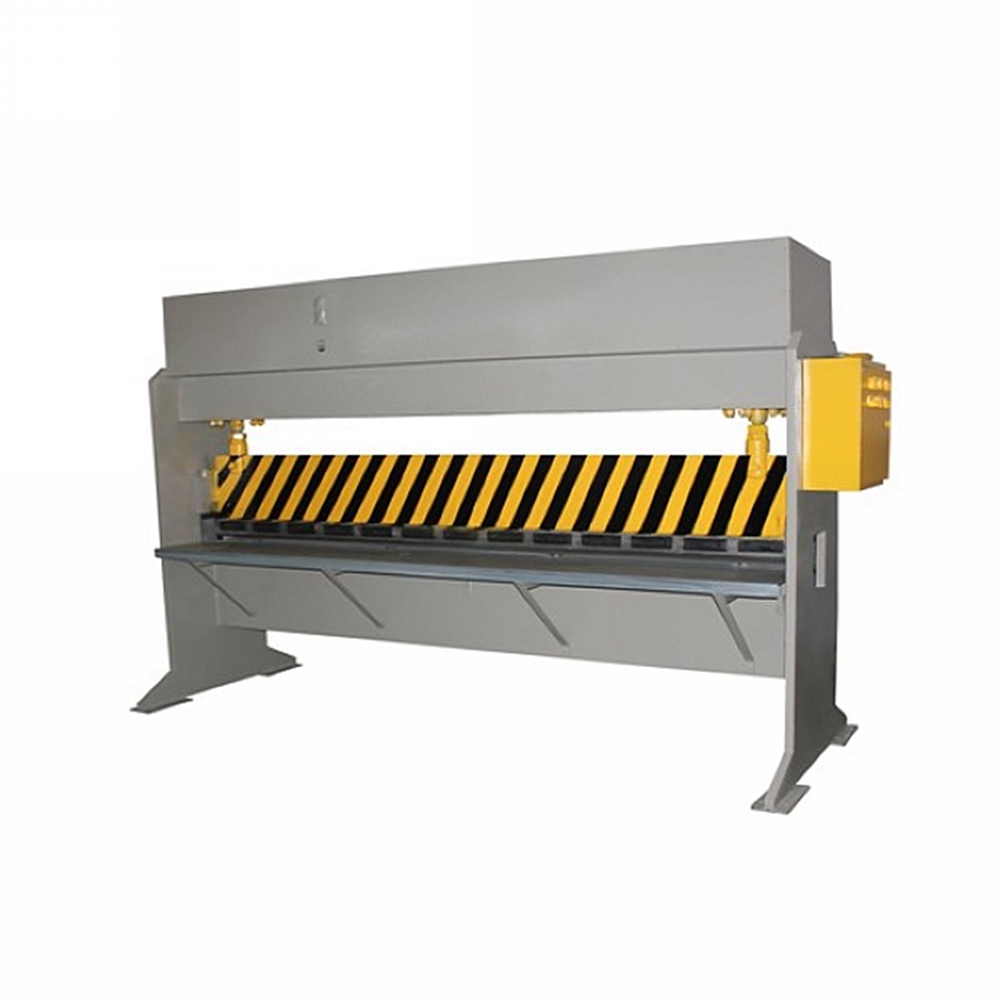

Full steel welding process, high strength and rigidity. Gantry structure can double-sided belding. Fold tenon mode configuration, you can choose a single bend-tenon technology and bi-bend tenon process, mold material is 9GS. Configuration 630KN with a pressure hydraulic system can ensure the fold tenon work piece do not rebound. Diameter dual 125 dual cylinder configuration to ensure a smooth trip up and down. V-shaped slider, adjust the slider clearance with high precision. The mode of operation points jog and automatic, Conditioners using the jog , operation use automatic.
Parameter data | |
Tenon Bending Width | 3.0mm - 7.0mm |
Max. Processing Thickness | 0.6m |
Max. Effective Length | 3000mm |
PN | 400KN |
Hydraulic System Power | 4.5KW |
Voltage | 380V 50HZ |
Operation Labor | 15 - 20tube tank : 1 people |
20 - 36tube tank : 2 people | |
8 hours Max Efficiency | 500 PCS bending |
Weight | 2800kg |
Size (L*W*H) mm | 3300*1100*2180 |
YOUTUBE LINK: https://youtu.be/QxDh2hxrsaA
