Solar water heater outer tank Step 3. Outer tank connect plate straight cutting
Application:
Vertical Cutting for Outer Tank Connect plate Steel
Composition of equipment:

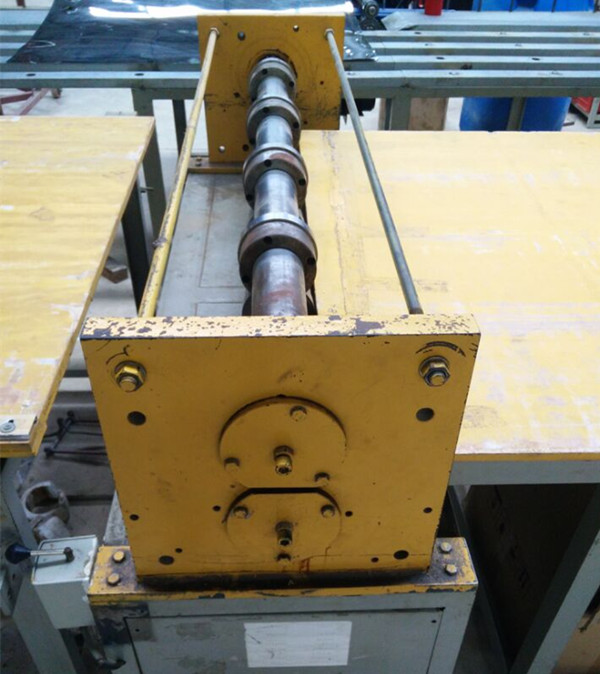

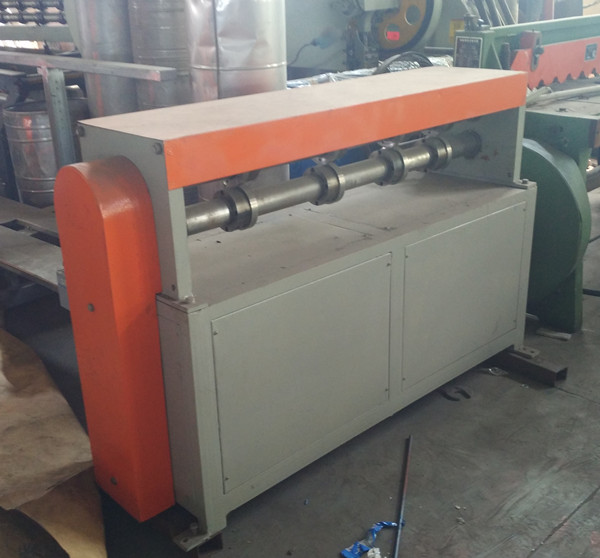

slitting machine + two working tables
The upper and lower blade shaft driven plate cutting. This machine have a positioning mobile table for material feeding and a fixed table for material discharge,. Cutting width is adjustable. The blade material is made of high-speed steel W18Cr4V,. The maximum shear quantities are 5pcs with trimming, the minimum is 3pcs with trimming.
Parameter data | |
Quantity | 3-5 pcs every time |
Material Length | Unlimited |
Material Thickness | 0.10mm-0.45mm |
Power | 1.5KW |
Voltage | 380v 50HZ |
Operation Labor | 1person |
8 hours Max Efficiency | 2000pcs/8h |
Weight | 650kg |
Size（L* W* H）mm | 5600*1800*1500 with two side working tables |
YOUYUBE: https://youtu.be/QxDh2hxrsaA
