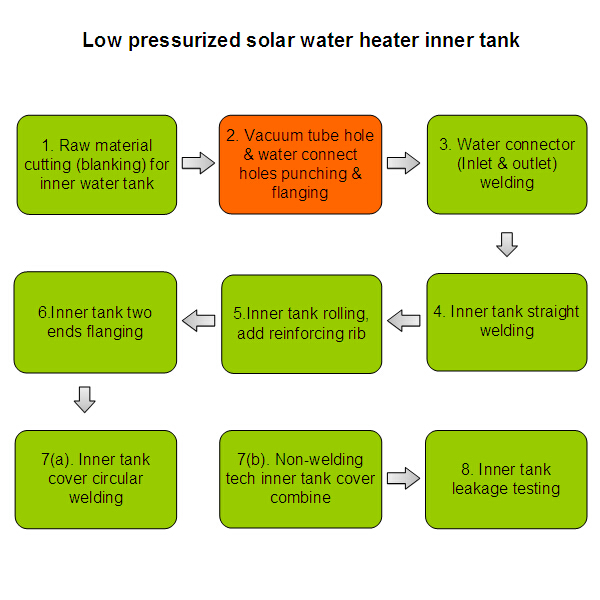

Solar water hater inner tank production line- Step 2. Vacuum tube hole & water connect holes punching & flanging
Application:
Solar Water Heater Inner and Outer tank plate & tank cover Punching and Flanging for vacuum tube holes and water connector holes.

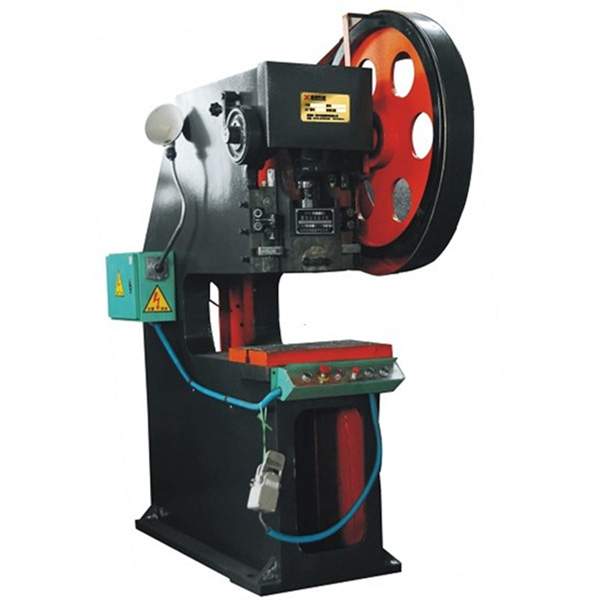

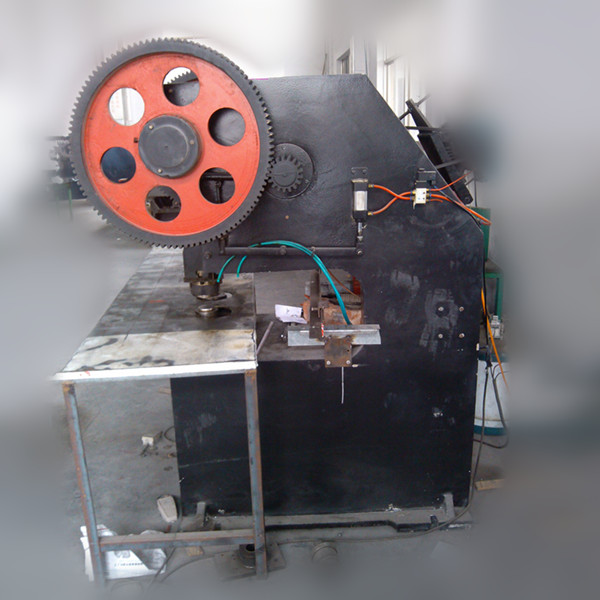

According to the Solar Water Heater product’s plate characters, increase the depth of the holes throat, provide more space to working. Adopt the crankshaft horizontal structure, rigid and rotating key clutch. Machine body made of precision cast iron.
Parameter data | |
Nominal Pressure (PN) | 160KN |
Slide Stroke | 50mm |
Slide adjustment | 50mm， |
Distance of body and the slide center | 350mm |
Shut Height | 180mm |
Max. Efficiency | 120 times/min |
Max. processing material thickness | 0.4mm (Forming material thickness) |
Voltage | 380v 50HZ |
Power | 1.75KW |
Operation Labor members | 2 person |
Weight | 900kg |
Floor space (L*W*H) mm | 600*1100*1700 |
YOUTUBE LINK: https://youtu.be/QxDh2hxrsaA
