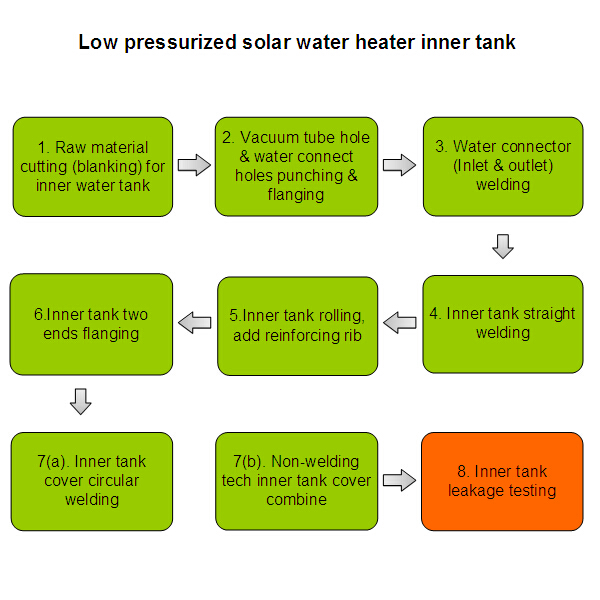

Solar water hater inner tank production line- Step 8 Inner tank leakage testing
Application:

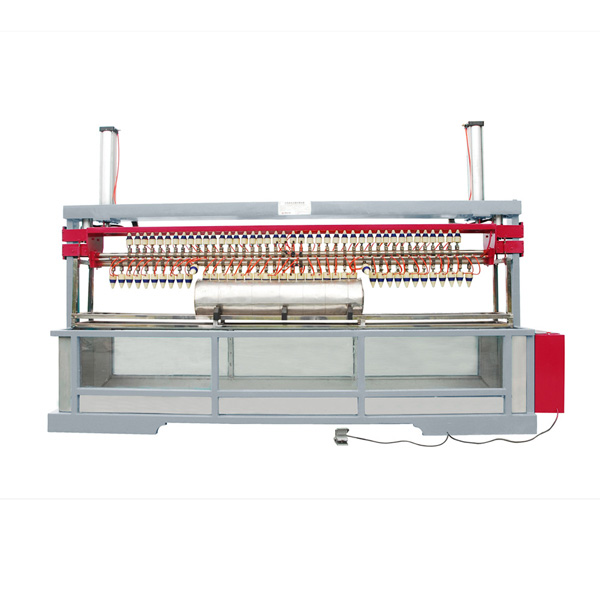

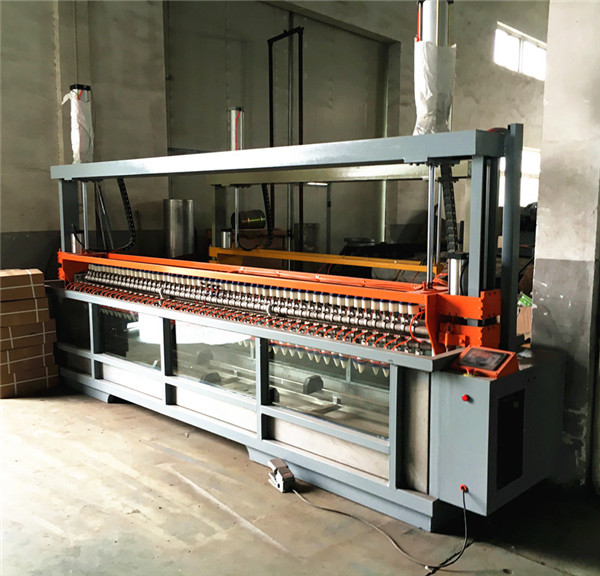

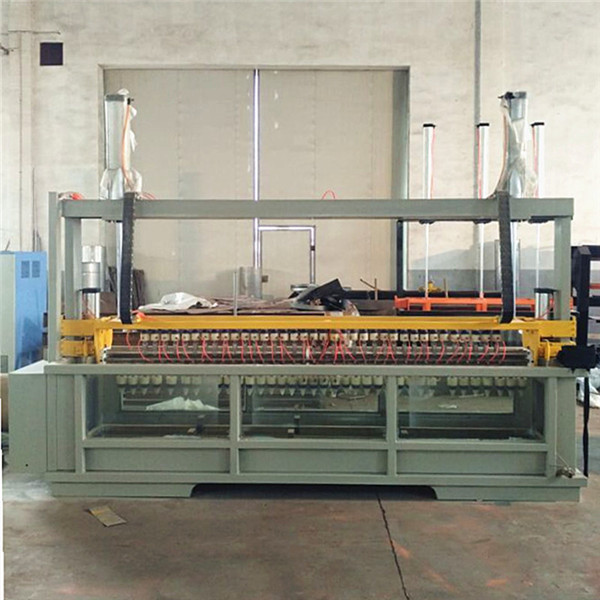

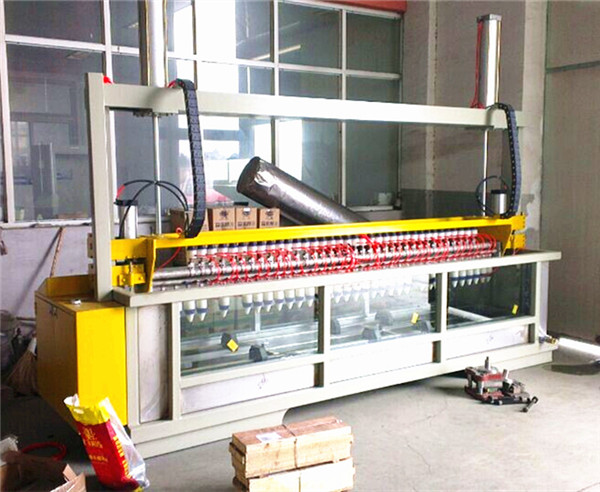

Leak Testing for Inner Tank
PLC automatic program control, touch screen setting various parameters. Run the whole process fully automated leak detection. Water storage tank use 1.2 mm SUS 304-2B stainless steel and 12 mm tempered glass. Tank basket and leak detection using 304 square tube and 304 seamless steel. Installation of automatic sensor control leak water tank diameter size. Use Japan SMC digital pressure switch to control the tank pressure. Electrical components using Omron, electrical magnetic valve adopts the cylinder's AirTAC. 47mm&58mm vacuum tube both available.
Parameter data | |
Max Testing Tube Qty | 36 tube - 3000mm |
Testing Specifications | Vacuum Tube Φ47mm & Φ58mm |
Max inner tank diameter | Less than 420mm |
Power | 0.1KW |
Voltage | 220v |
Air Pressure | 0.5Mpa—0.8Mpa |
Operation Labor members | 1person |
8 hours Max. Efficiency | 600 PCS inner tank |
Weight | 800 KGS |
Floor space (L*W*H) mm | 3800*910*2700 |
