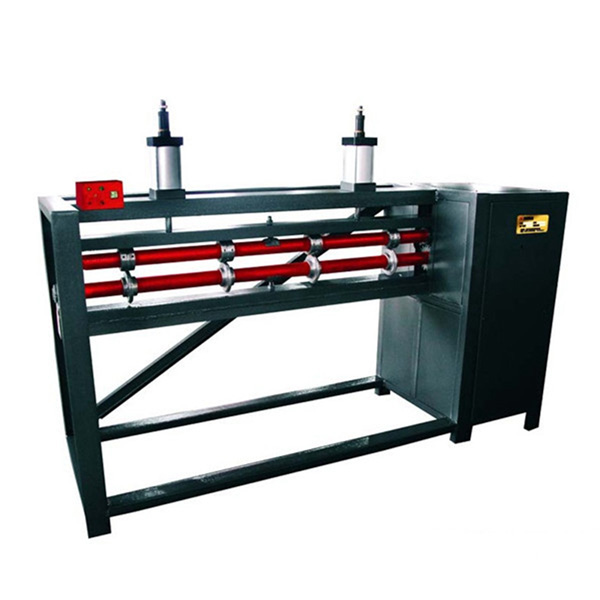

QJ-2000 Automatic Inner tank Rolling Machines

QJ-2000 Automatic Inner tank Rolling Machines

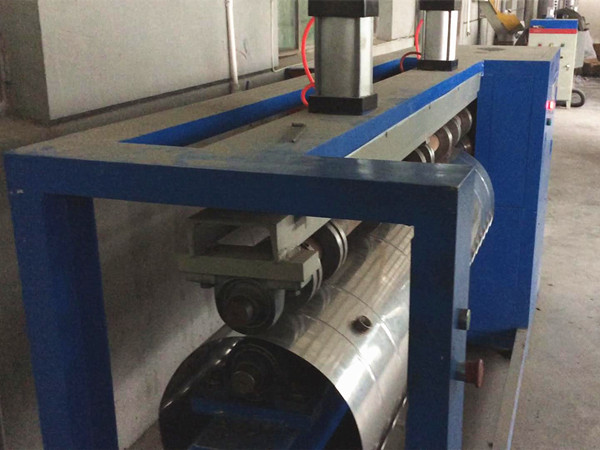

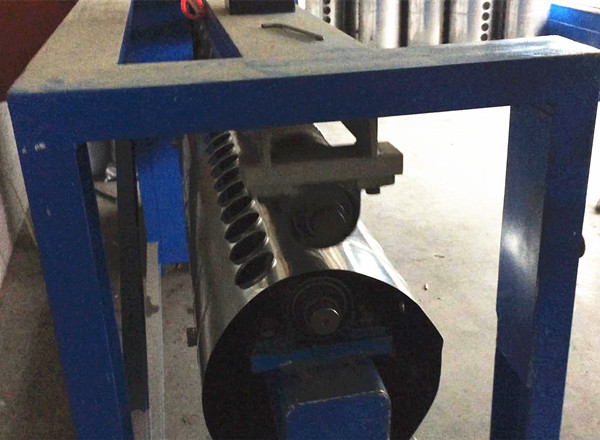

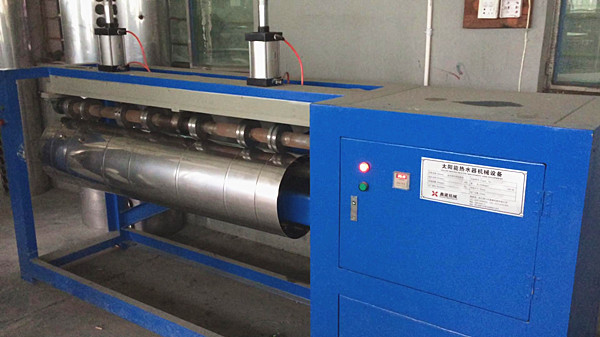

Solar water hater inner tank production line- Step 5.Inner tank rolling, add reinforcing rib

FEATURES

Application:

Inner tank Auto-rolling reinforcing ribs

Product Description

Open Structure, adjustable. PLC automatic control systems, Automatically rolled steel, roll steel in place after automatic stop, up and down the arm link automatically release, roller number 6, adjustable stroke cylinder, may at any time adjust the roll bar height, roller materials made of 45 # steel, surface plating 0.10 mm hard chromium, electrical components using Omron, cylinder adopt Taiwan AirTAC


Parameter data

Effective Length

2000mm/Single end

Wheel number

6set

Max. Material Thickness

0.6mm

Power

1.5KW 50HZ

Voltage

380v

Air Pressure

0.5Mpa—0.8 Mpa

Operation Labor members

1 Person

8 hours Max. Efficiency

150 PCS Inner tank

Weight

500kg

Floor space (L*W*H) mm

2800*750*1750


Video Guide

YOUTUBE LINK:  https://youtu.be/c2AABaUhpVY

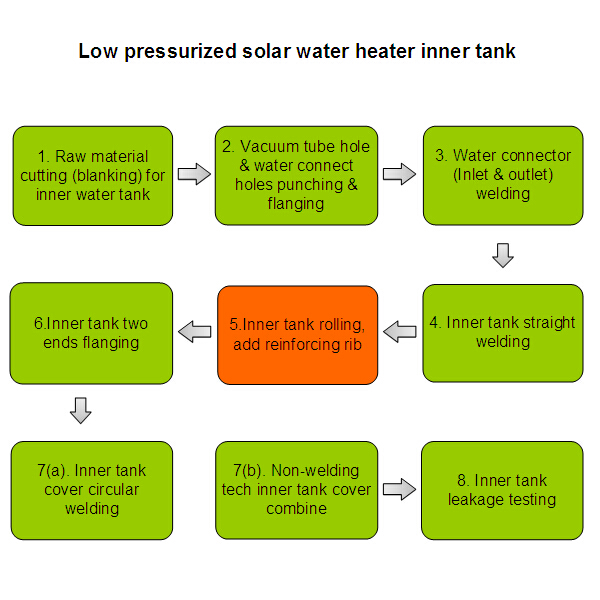

Production Steps
