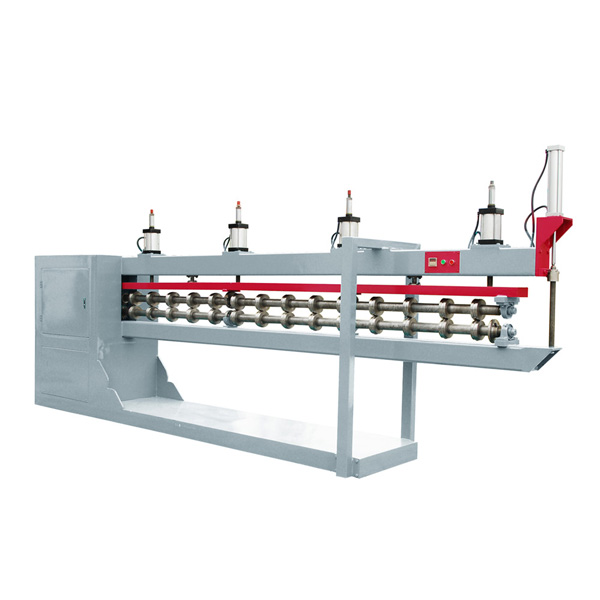

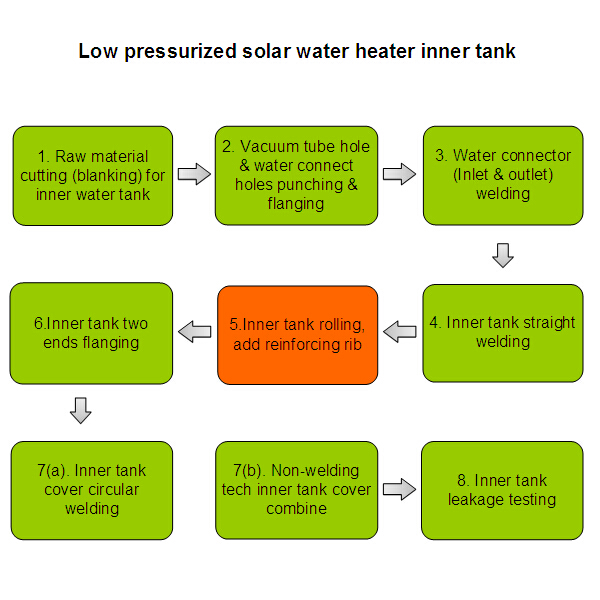

Solar water hater inner tank production line- Step 5.Inner tank rolling, add reinforcing rib
Application:

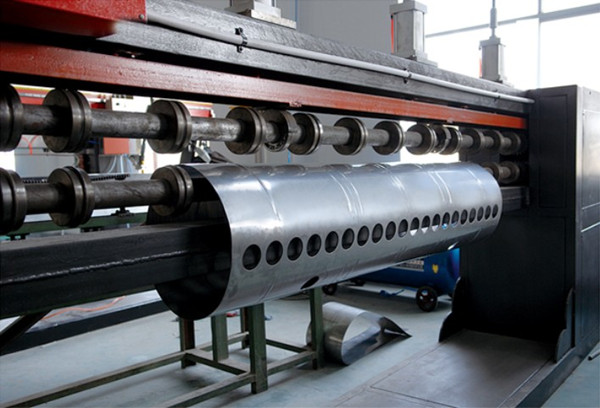

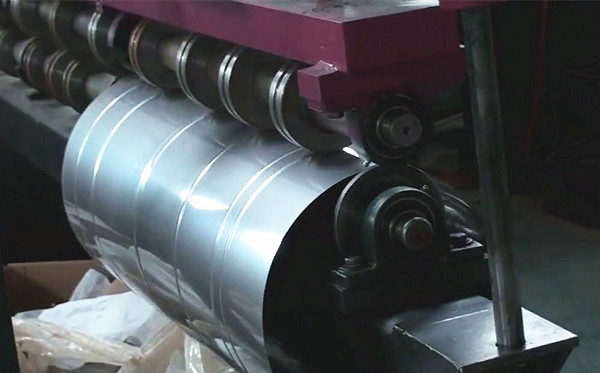

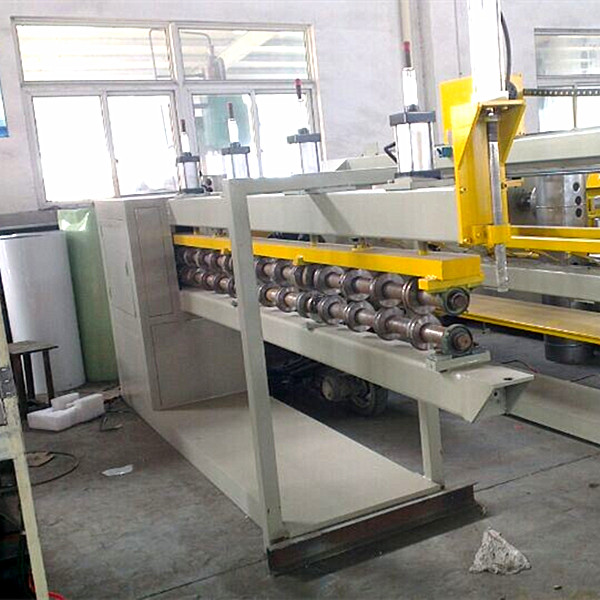

Inner tank Auto-rolling reinforcing ribs
Close structure. PLC automatic control systems, Automatically rolled steel, roll steel in place after automatic stop, up and down the arm link automatically release, roller number12, adjustable stroke cylinder, may at any time adjust the roll bar height, roller materials made of 45 # steel, surface plating 0.10 mm hard chromium, electrical components using Omron, cylinder adopt Taiwan AirTAC.
Parameter data | |
Effective Length | 3000mm |
Wheel Qty | 12set |
Max. Material Thickness | 0.6mm |
Power | 2000mm/3000mm -1.5KW 50HZ |
4000mm - 2.2KW | |
Voltage | 380v |
Air Pressure | 0.5Mpa—0.8 Mpa |
Operation Labor members | 1person |
8 hours Max. Efficiency | 360 PCS Inner tank |
Weight | 1250 kg |
Floor space (L*W*H) mm | 4400*800*1800 |
YOUTUBE LINK: https://youtu.be/QxDh2hxrsaA
