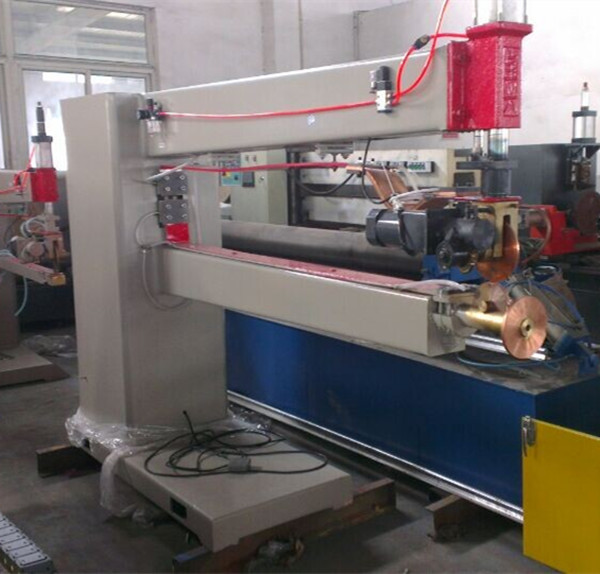

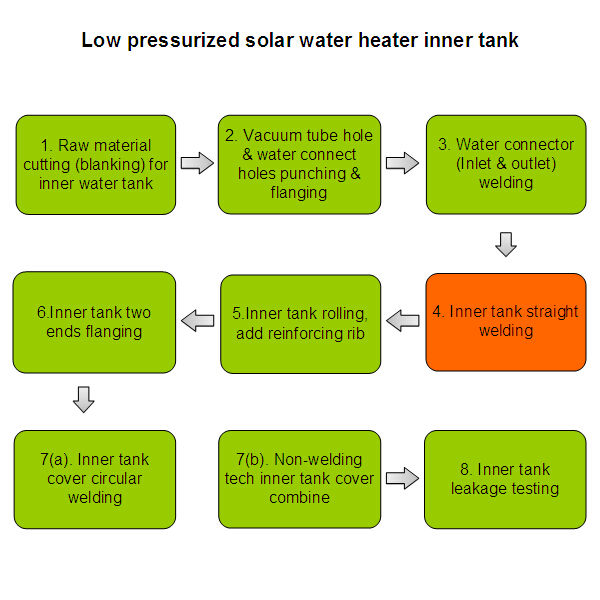

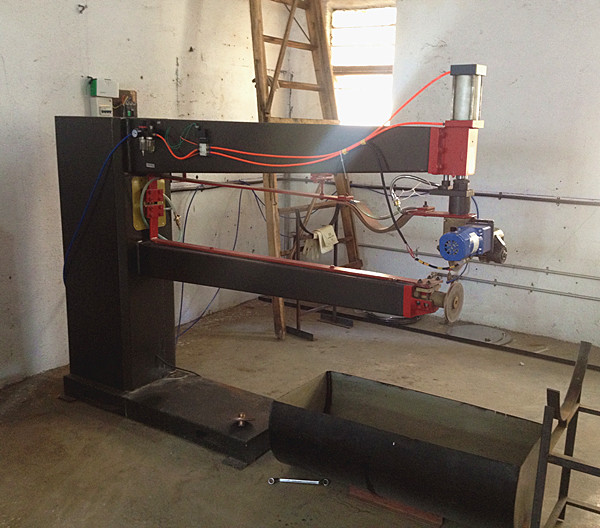

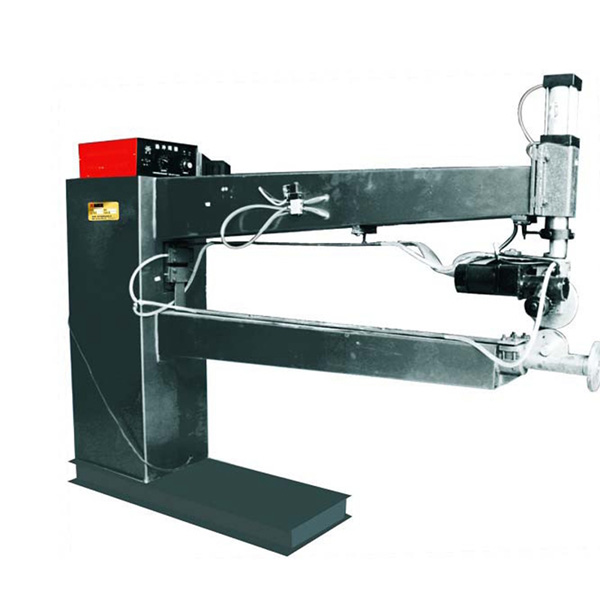

Solar water hater inner tank production line- Step 4. Inner tank straight welding
Application:

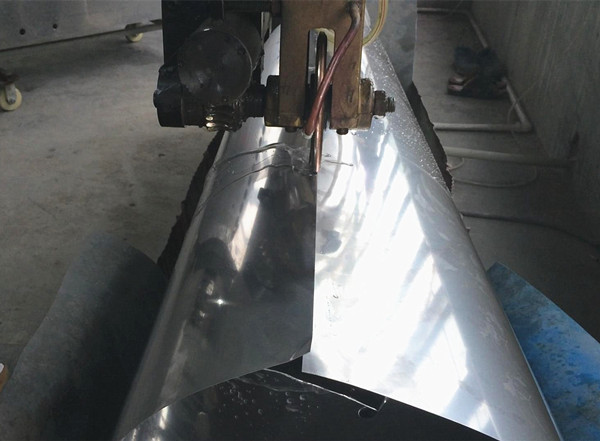

Inner tank Straight seam welding
Using high power module and the microcomputer control system, the current stable and easy to adjust. Main transformer use imported silicon steel sheet, copper all sand primary winding and cast copper braid is secondary, entire process use cold water protection. Welding copper wheel adopts high temperature resistant, wear resistant chromium zirconium copper. Use gear shifting motor.
Parameter data | |
Maximum welding Plate thickness | |
F50 | 0.4mm+0.4mm |
F100 | 0.5mm+0.5mm |
Max Welding Length | 3600mm (double time) |
Main transformer Rated capacity | 50KVA/100KVA |
Voltage | 380v 50HZ |
Secondary maximum short-circuit current | 20KA |
Duty cycle | 20% |
Air Pressure | 0.5Mpa—0.8 Mpa |
Operation Labor members | 1 person |
8 hours Max. Efficiency | 100 pcs inner tank |
Weight | 450kg |
Floor space (L*W*H) mm | 2500*550*1700 |
YOUTUBE LINK: https://youtu.be/QxDh2hxrsaA
