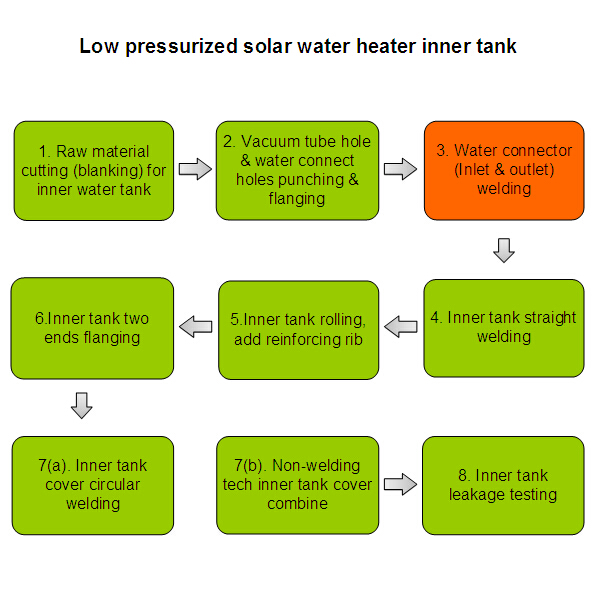

Solar water hater inner tank production line- Step 3. Water connector (Inlet & outlet) welding (plug type connectors, no this step)
Application:

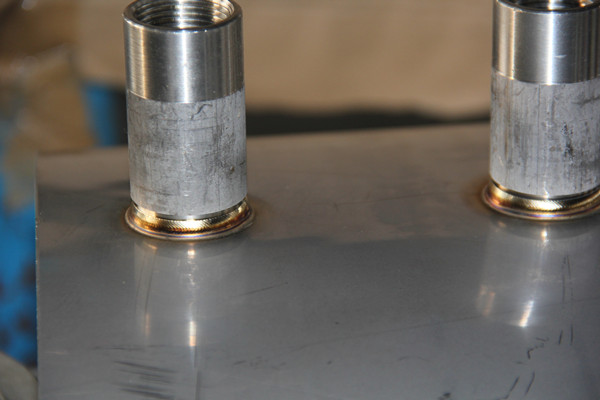

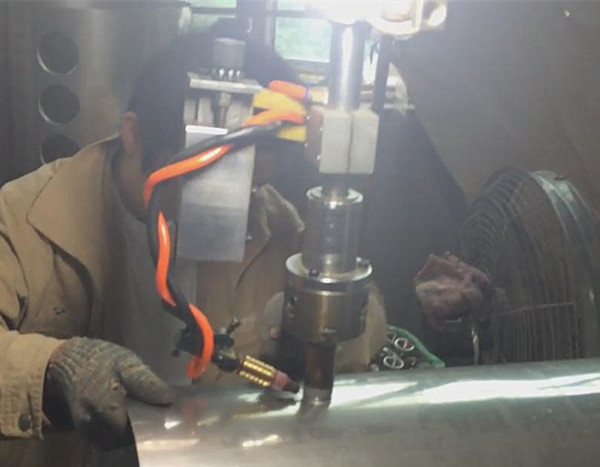

Inlet & Outlet Water connector nuts Auto-Welding.

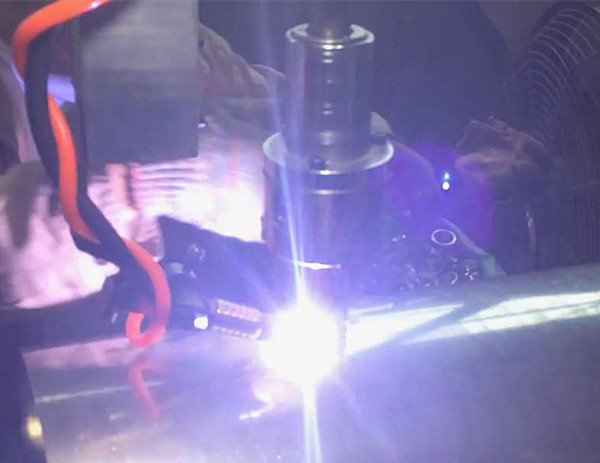

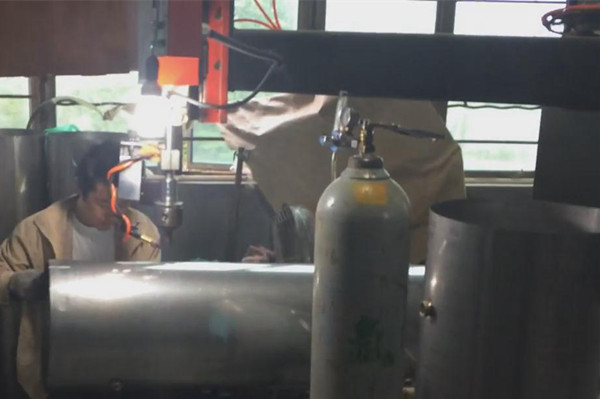

Using the microcontroller circuit, anti-interference ability, count correctly, the use of the Mitsubishi inverter debugger can be with Welding speed, welding speed is uniform. Carbon brush rotating conductive, inert gas welding, which can effectively prevent the material to intergranular corrosion can choose manual welding and automatic welding. Taiwan AirTAC Cylinder.
Parameter data | |
Nut size | G1/2— G1-1/2 |
Max Plate Thickness (mm) | 2.0 |
Max Output Power | 12 KW |
Equipment Power | 0.1 KW |
Argon Arc Welding Voltage | 380V |
Equipment Voltage | 220Ｖ 50HZ |
Air Pressure | 0.5Mpa—0.8 Mpa |
Operation Labor members | 1 person |
8 hours Max. Efficiency | 200 PCS Nuts |
Weight | 400 kg |
Floor space (L*W*H) mm | 1500*450*1500 |
YOUTUBE LINK: https://youtu.be/QxDh2hxrsaA
