SolarTide

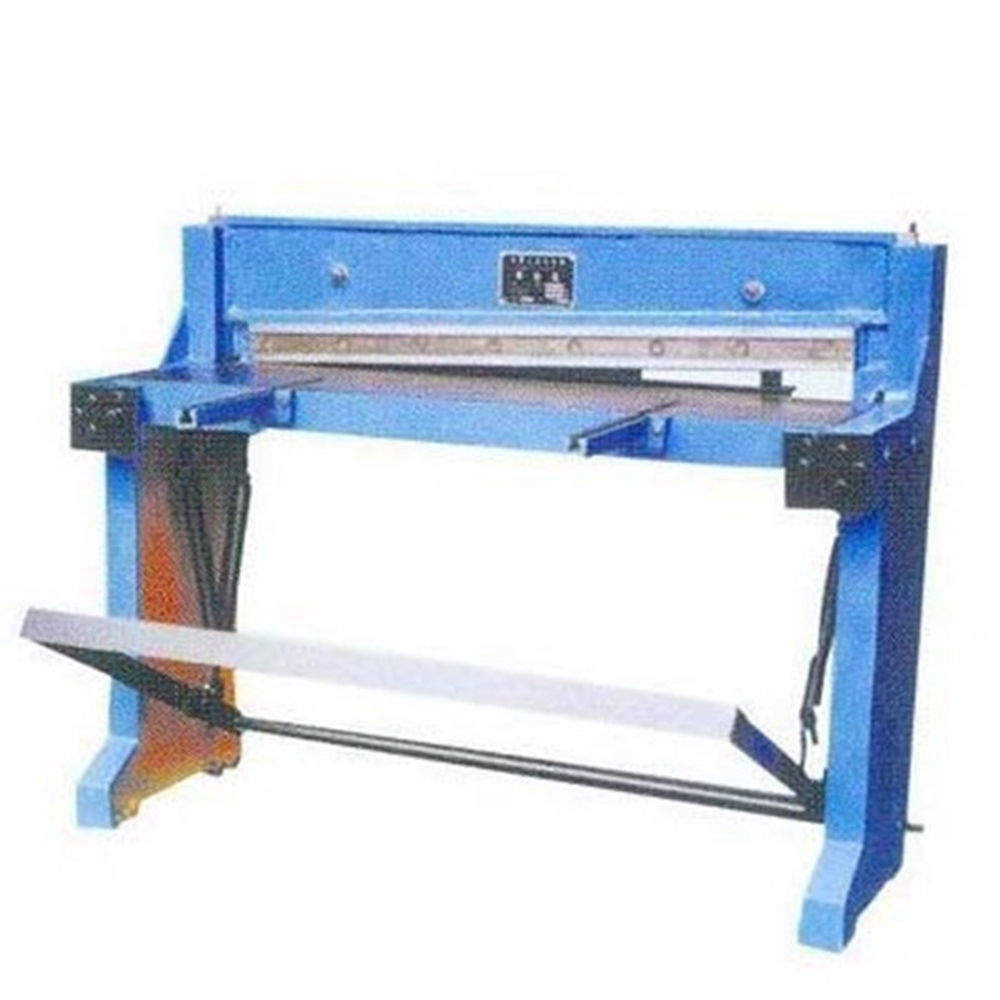

Q11-1300 Manual Stamping Cutting Machine

Q11-1300 Manual Stamping Cutting Machine

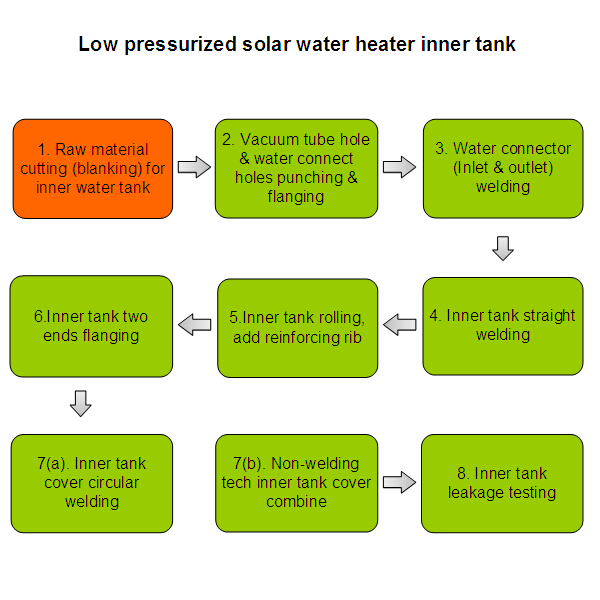

Solar water hater inner tank production line- Step 1. Raw material cutting (blanking) for inner water tank

FEATURES

Application:

Solar water heater inner & outer tank steel plate cutting (blanking)


Deployment Component:

1set Cutting Machine & 2 sets Steel coil putting stands

Product Description

No power equipment. Adopts the lever principle, labor offer blade press power cutting plate. Cutting blade using all around cutting edges and 9GS stainless steel material, greatly improve the blade service life.


Parameter data

Max Cutting Plate Width

1300mm

Max Cutting Plate Thickness

0.4mm

Operation Labor members

3 person

Steel coil putting stands Max Width

1300mm

Steel coil putting stands Max Load Weight

7000kg

8 hours Max. Production

600 PCS Plate cutting

Weight

550kg

Floor space (L*W*H) mm

4000mm*1500mm. Install two roll plates (8600*2400) Note: each roll plate add length 1200mm. Width is same.


Production Steps
