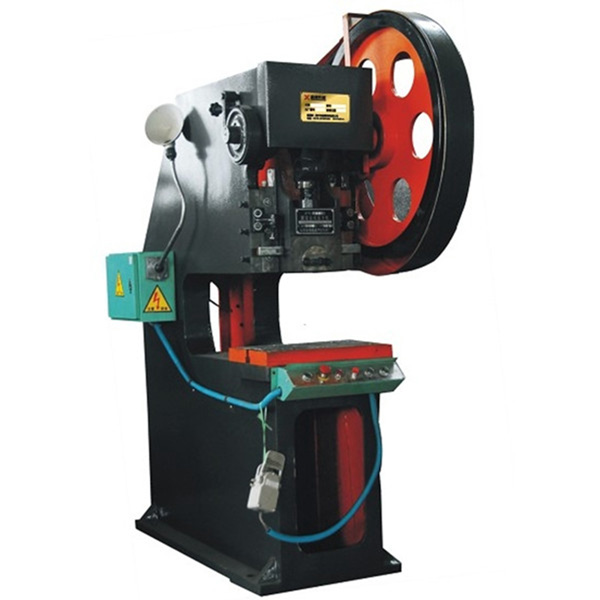

J21S-16 Open-type Punching Machine

J21S-16 Open-type Punching Machine

Solar water hater inner tank production line- Step 2. Vacuum tube hole & water connect holes punching & flanging

FEATURES

Application:

Solar Water Heater Inner and Outer tank plate & tank cover Punching and Flanging for vacuum tube holes and water connector holes.

Product Description

According to the Solar Water Heater product’s plate characters, increase the depth of the holes throat, provide more space to working. Adopt the crankshaft horizontal structure, rigid and rotating key clutch. Machine body made of precision cast iron.


Parameter data

Nominal Pressure (PN)

160KN

Slide Stroke

60mm

Slide adjustment

40mm,

Distance of body and the slide center

500mm

Shut Height

170mm

1 minute punching

120 times

Max thickness

58mm diameter: 0.5mm

47mm diameter: 0.5mm

70mm diameter: 0.4mm

8 hours Max. Efficiency

2000 holes

Voltage

380v 50HZ

Power

1.5KW

Operation Labor members

2 person

Weight

1100kg

Floor space (L*W*H) mm

1100*600*1700

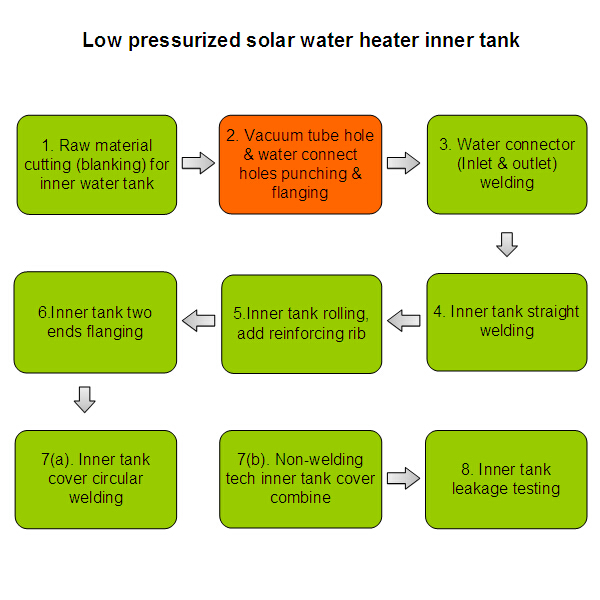

Production Steps
