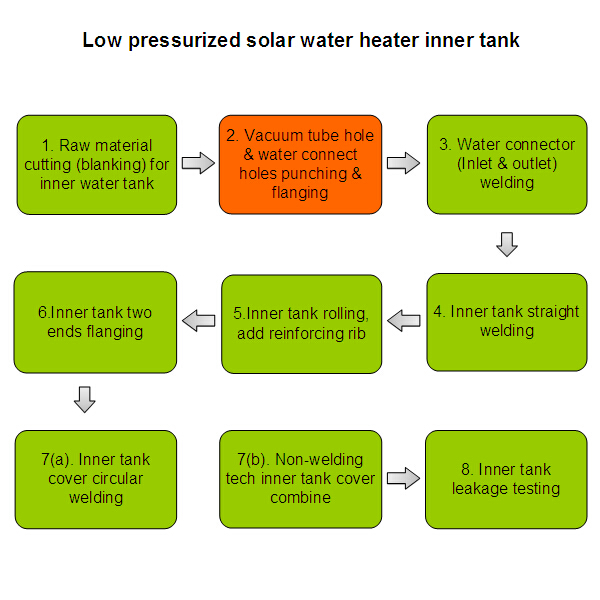

Solar water hater inner tank production line- Step 2. Vacuum tube hole & water connect holes punching & flanging
Application:

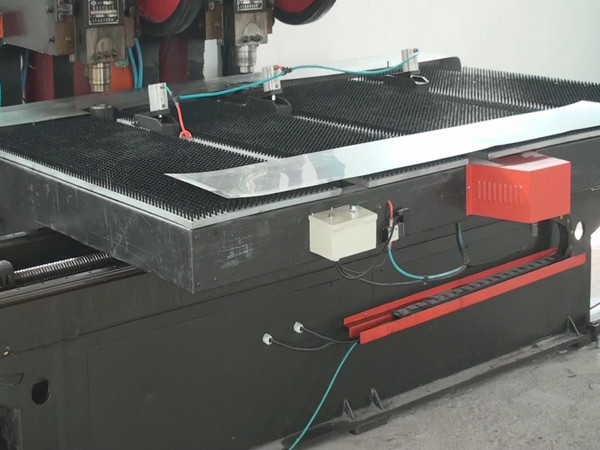

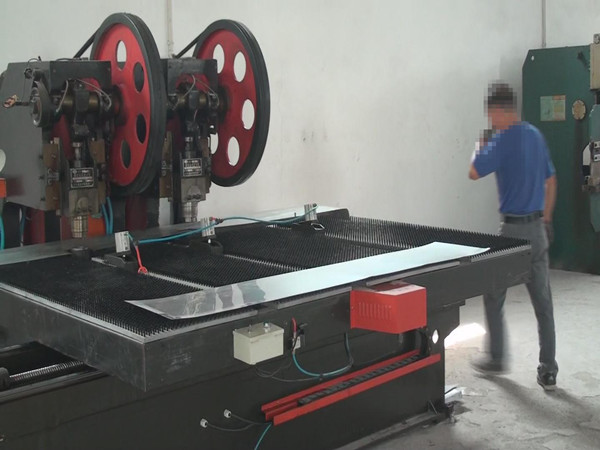

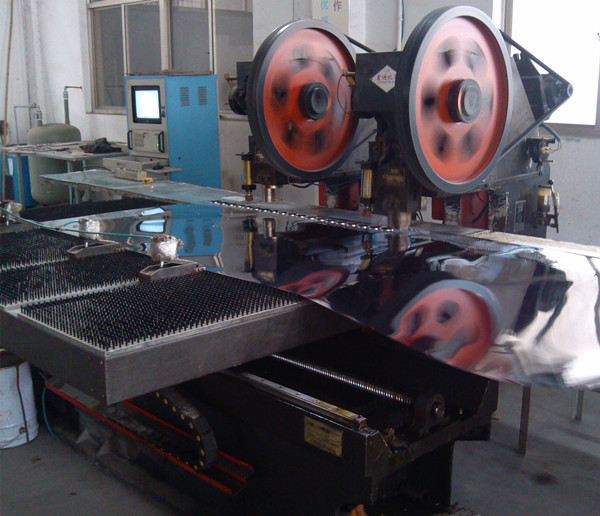

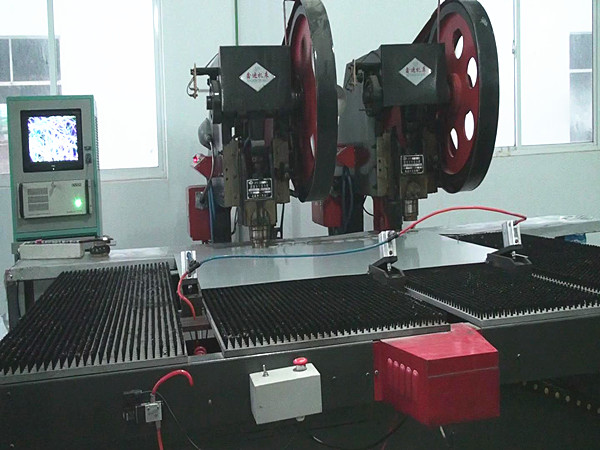

Solar Water Heater Inner and Outer tank plate automatic Punching and Flanging
Deployment Component:

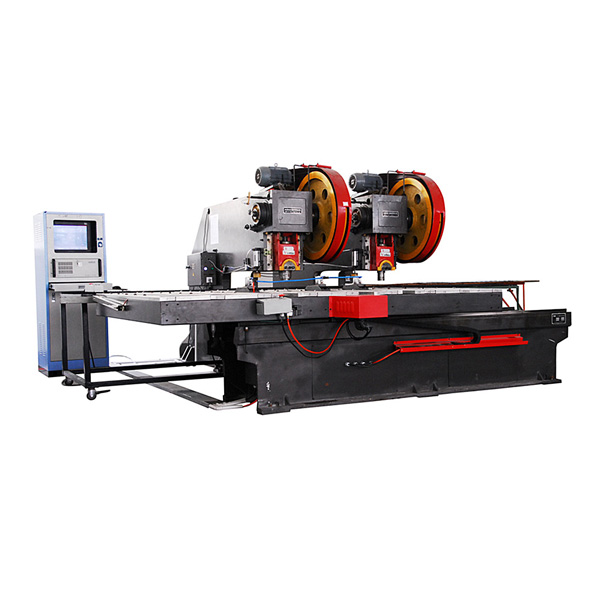

1. T16 deep throat punching machine - 2 units,
2. Automatic feeder – 1 unit,
This machine belongs to modular automatic punching production lines, can be inner and outer tank automatic punching. Control software adopt the PT - 2002 CNC dedicated system, man-machine interface system. Install twice positioning system. Servo system adopts Japanese YASKAWA, electrical element use Markus Schneider, cylinder adopt Taiwan AirTAC.
Parameter data | |
Mould Digits | 2 positions |
Position Accuracy | ±0.10mm |
Max. Processing Sheet Width | 1250mm |
Max. Processing Sheet Length | 2500mm (30 tube 58mm diameter) |
Max thickness | 58mm dia 0.5mm / 47mm dia 0.5mm / 70mm dia 0.4mm |
PN | 160KN |
Air Pressure | 0.5Mpa—0.8 Mpa |
Power | 6KW |
Voltage | 380V 50HZ |
Labor | 1 person |
8 hours Max. Efficiency | Punch 12000 holes |
Weight | 6000kg |
Size (L*w mm) | 2500*4000 |
Drawing input format | DXF format or Program |
YOUTUBE LINK: https://youtu.be/QxDh2hxrsaA
