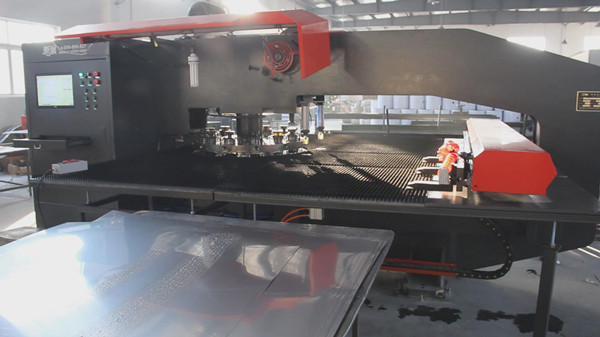

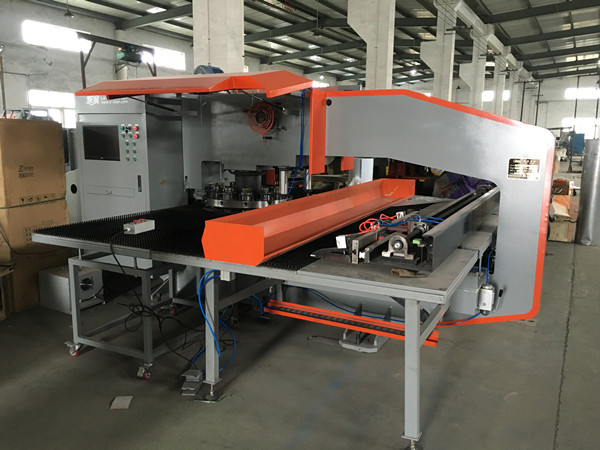

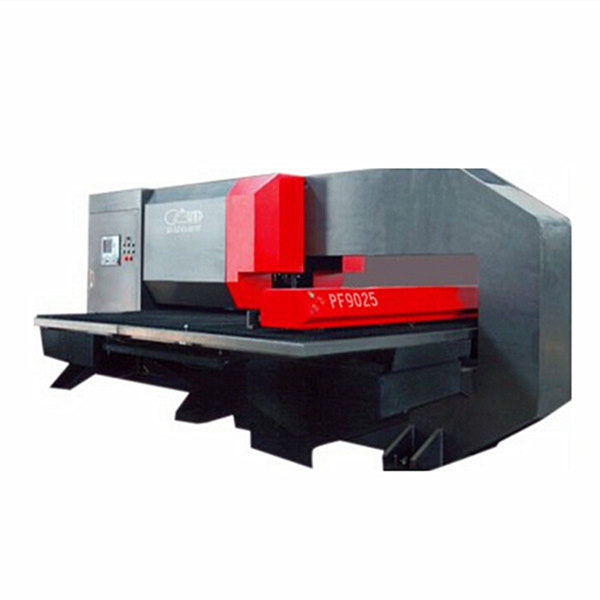

PF9025-12G-B-2 All-automatic CNC Turret Machine

PF9025-12G-B-2 All-automatic CNC Turret Machine

Solar water hater inner tank production line- Step 2. Vacuum tube hole & water connect holes punching & flanging

FEATURES

Application:

All-automatic Punching and Flanging for inner and outer tank steel plate

Product Description

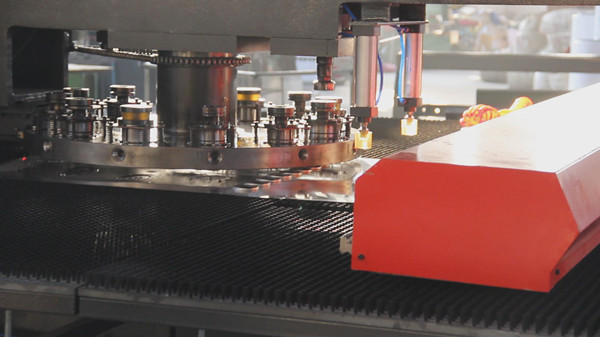

This machine is a mechanical and electrical integration, automatic punching press machine, with automatic load materials and cutting system. The body is made of high strength, high-rigidity, welded steel plate, internationally accepted structure bed. The mold plate inlaid oriented high-quality die sets, equipped with 12 sets of mold international universal long orientation, fast loading type mold installation method, CNC machine control system, Japan Yaskawa servo system, Schneider electrical components , Taiwan AirTAC cylinder, precision ball screw and linear guide .


Parameter data

Mould Digits

12 sets

Position Accuracy

±0.10mm

Max. Processing Width

1250mm

Max. Processing Length

Unlimited

Max thickness

1.0mm

PN

250KN

Air Pressure

0.5Mpa - 0.8 Mpa

Operation Labor

1 people

Power

12KW

Voltage

380V 50HZ

Weight

11000kg

Size (L*w) mm

5000*120000

Drawing input format

DXF format or Program


Video Guide

YOUTUBE LINK:  https://youtu.be/ufppf1m2QII

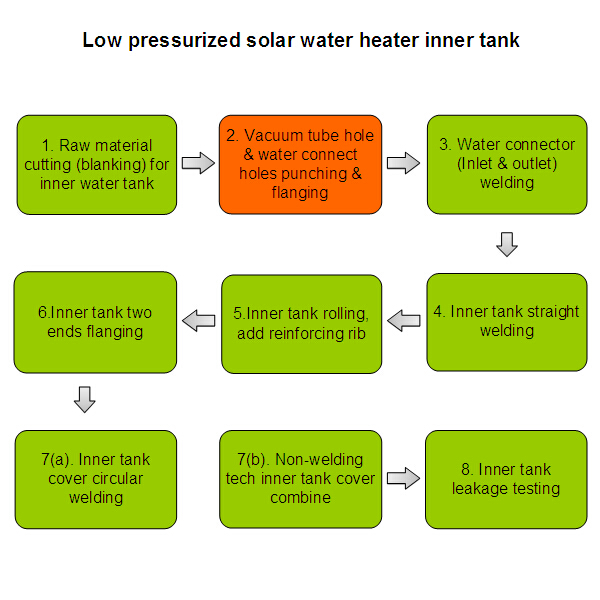

Production Steps
